Material ID: 6ES7193-4CK20-0AA0Product Description

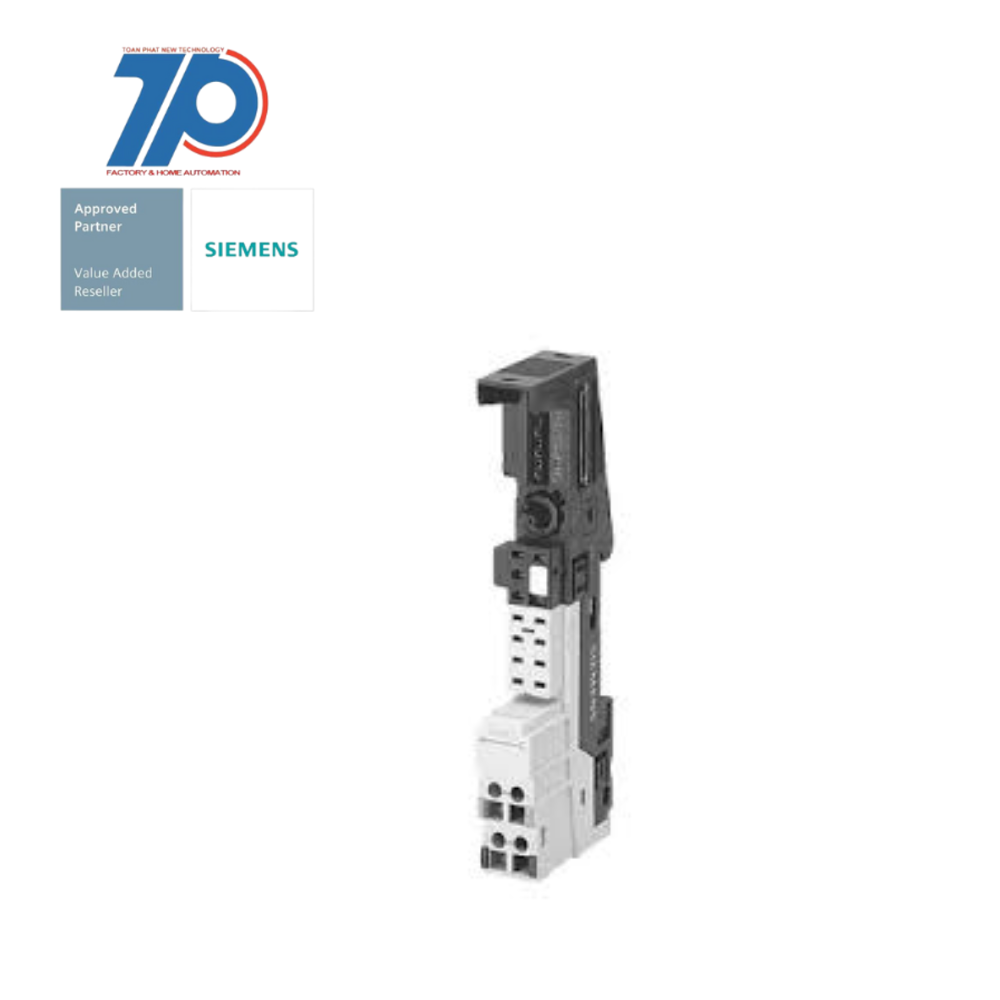

Spare part - SIMATIC DP, Terminal module TM-P30S44-A0

The SIMATIC DP Terminal module TM-P30S44-A0 is a spare part designed for the ET200S system. It is compatible with the PM-E F PROFIsafe power module and has a 30 mm overall width. The module features screw-type terminals with 2x3+2x4 terminal connections and terminal access to AUX1, with AUX1 being interrupted.

Technical Features

Commercial Benefits

The SIMATIC ET 200S system offers a wide range of commercial benefits. It provides scalability in terms of functionality and price, with modules available in various characteristics. This allows for flexibility in meeting specific requirements. The system's ease of application, including the capability of swapping modules and terminal boxes during operation, enhances machine availability and productivity. The "hot swapping" feature further contributes to increased uptime and reduced downtime, resulting in improved overall efficiency.

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST)
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Increased availability and productivity through "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE

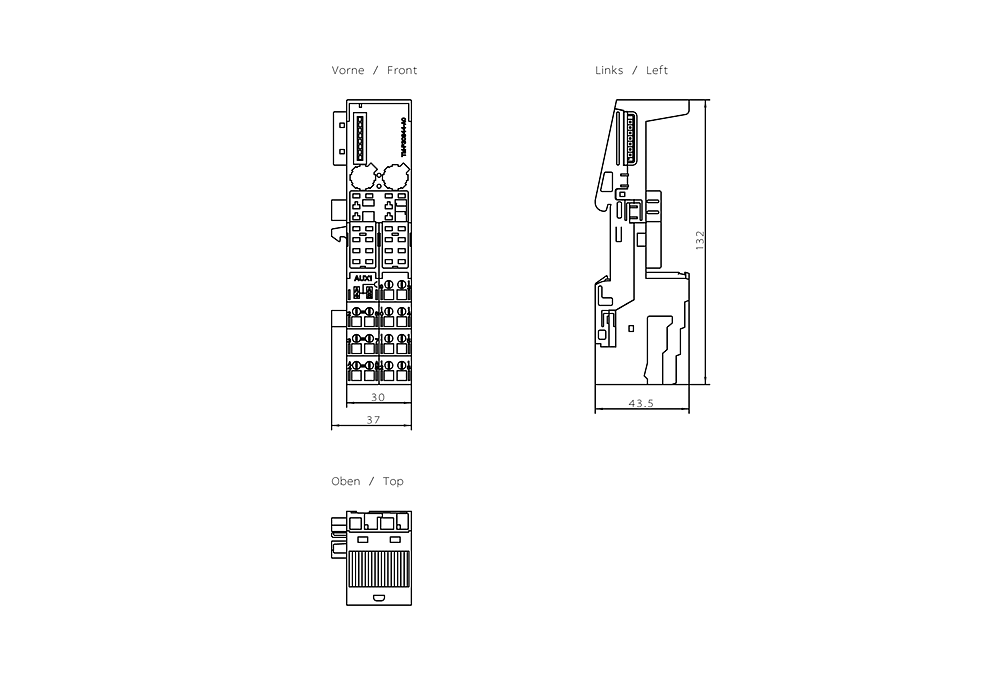

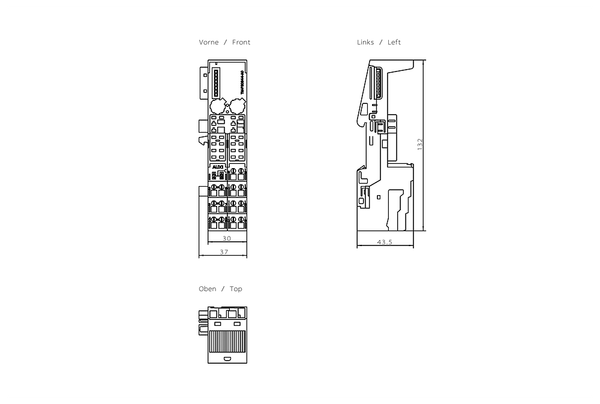

Height132 mm
Front built-in possiblefalse
Appendant operation agent (Ex ib)false
Rail mounting possibletrue
Output voltage DC20.4 V
Depth43 mm
With pluggable modules, analogue I/Ofalse
Width30 mm
Rack-assembly possiblefalse
Type of voltage (input voltage)DC
Max. input current DC10 A
With integrated power supplyfalse
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
Suitable for safety functionstrue
Max. output current DC10 A
Output voltage DC28.8 V
Wall mounting/direct mountingtrue
With pluggable modules, function and technology modulesfalse
With pluggable modules, central modulesfalse
Number of slots2
System accessorytrue
With pluggable modules, digital I/Ofalse
With pluggable modules, otherstrue
Input voltage DC28.8 V
With pluggable modules, communication modulesfalse
Type of output voltageDC
