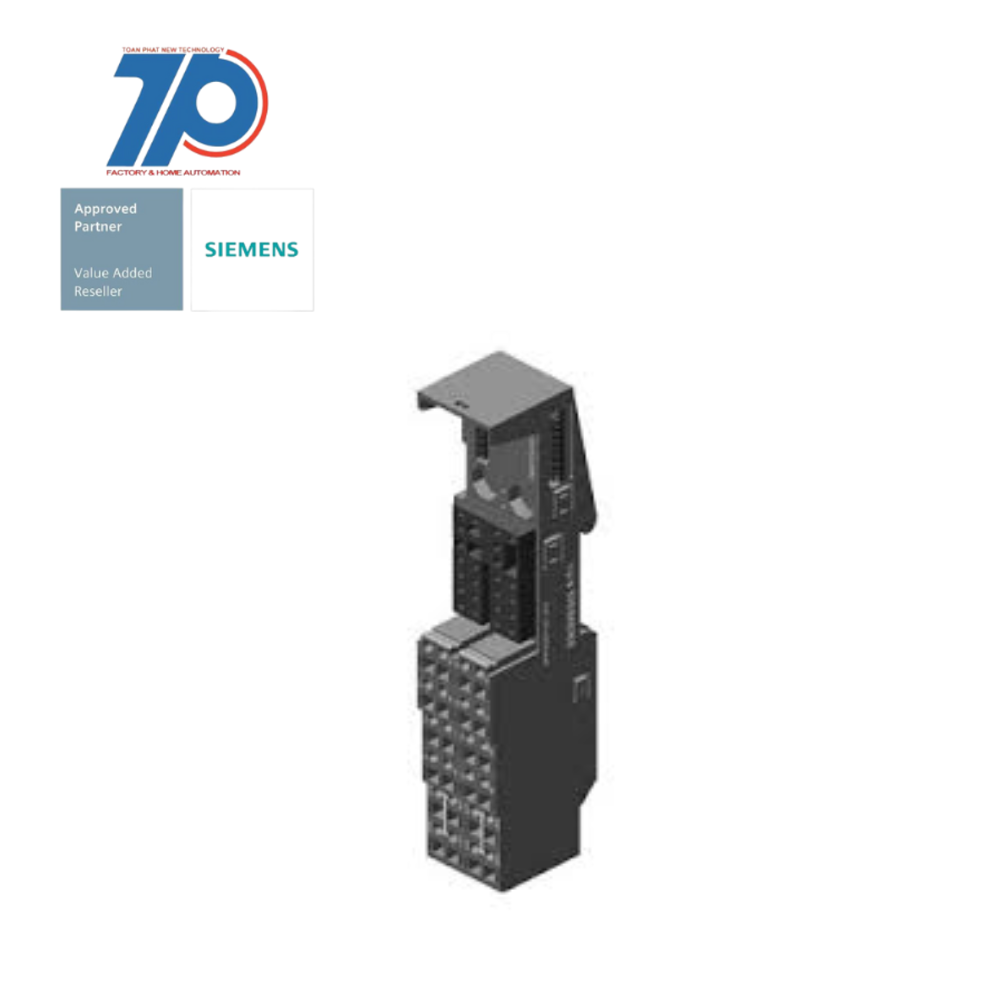

Material ID: 6ES7193-4CK30-0AA0Product Description
Spare part: SIMATIC DP, Terminal module TM-P30C44-A0
This spare part is designed for use with the ET200S system and the PM-E F PROFIsafe power module. It has a 30 mm overall width and features spring-type terminals with 2x3+2x4 terminal connections. The terminal module also provides terminal access to AUX1, with AUX1 being interrupted.
Technical Features
Commercial Benefits
The SIMATIC ET 200S system offers several commercial benefits:
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules with standard functions (ST) and modules with extended functions and diagnostics (HF High Feature/ HS High Speed) available
- Allows swapping of modules and terminal boxes during operation
- Increases machine availability and productivity through "hot swapping"
- Improved scalability in terms of functionality and price
- Easy application and maintenance
- Increased machine availability and productivity
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of slots | 2 |
| Appendant operation agent (Ex ib) | false |
| Output voltage DC | 20.4 V |
| With pluggable modules, function and technology modules | false |
| Max. output current DC | 10 A |
| With pluggable modules, communication modules | false |
| Output voltage DC | 28.8 V |
| Appendant operation agent (Ex ia) | false |
| Input voltage DC | 20.4 V |
| System accessory | true |
| Max. input current DC | 10 A |
| With pluggable modules, analogue I/O | false |
| Type of voltage (input voltage) | DC |
| With pluggable modules, digital I/O | false |
| Wall mounting/direct mounting | true |
| With integrated power supply | false |
| Type of output voltage | DC |
| Suitable for safety functions | true |
| Front built-in possible | false |
| Height | 132 mm |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| Input voltage DC | 28.8 V |
| Width | 30 mm |
| Depth | 43 mm |
| With pluggable modules, others | true |
| With pluggable modules, central modules | false |
