Material ID: 6ES7193-4CL30-0AA0

Spare part

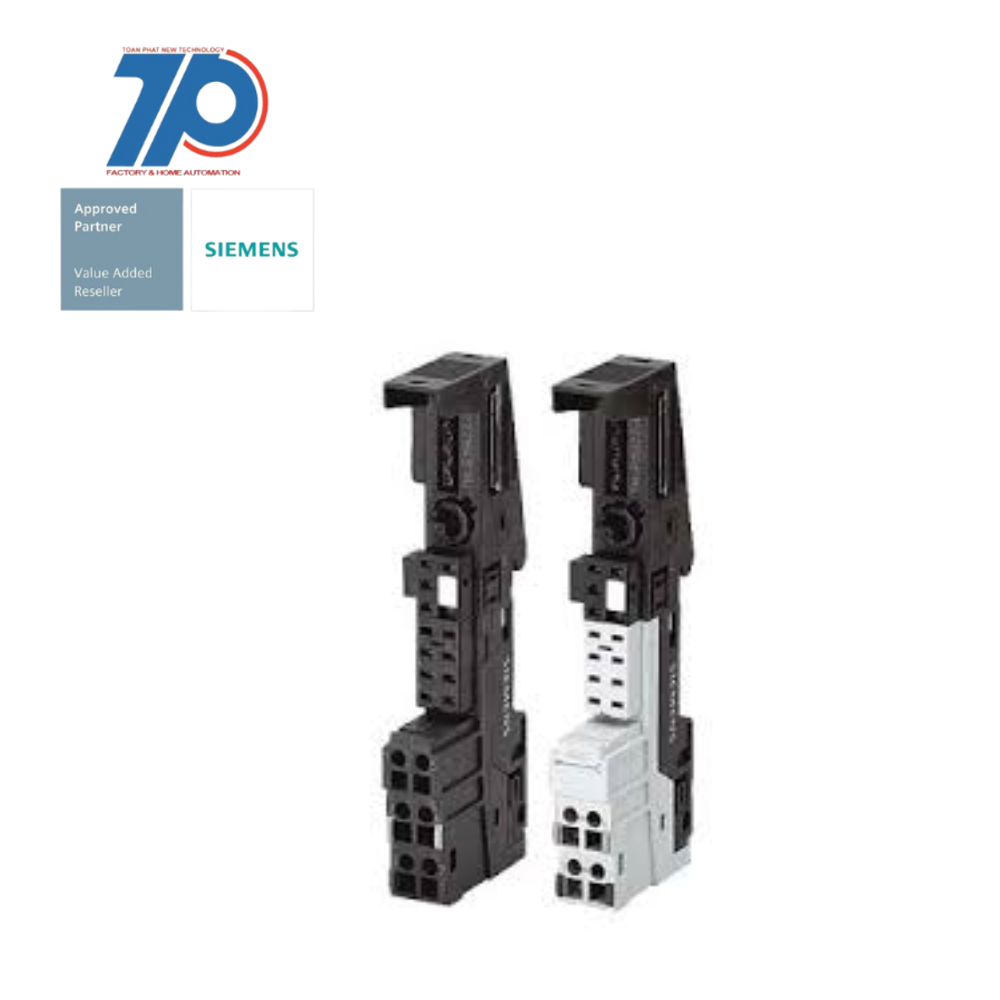

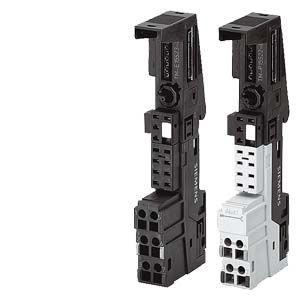

SIMATIC DP, 1 terminal module TM-E15C24-AT for ET 200S, for electronic module 2 AI TC High Feature, 15 mm width, spring-type terminals with terminal access to AUX1, AUX1 continuous

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules with different characteristics
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity due to "hot swapping"
    • Improved scalability in terms of functionality and price
    • Enhanced machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links

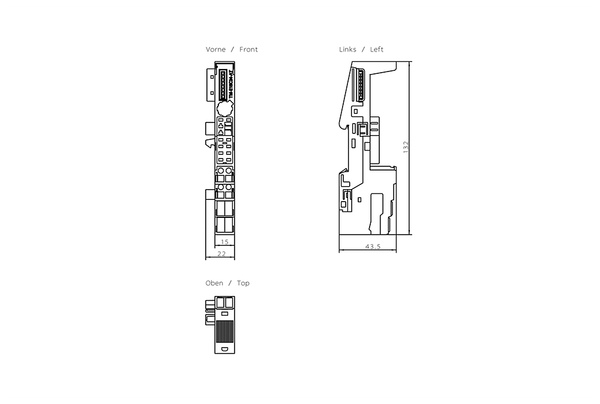

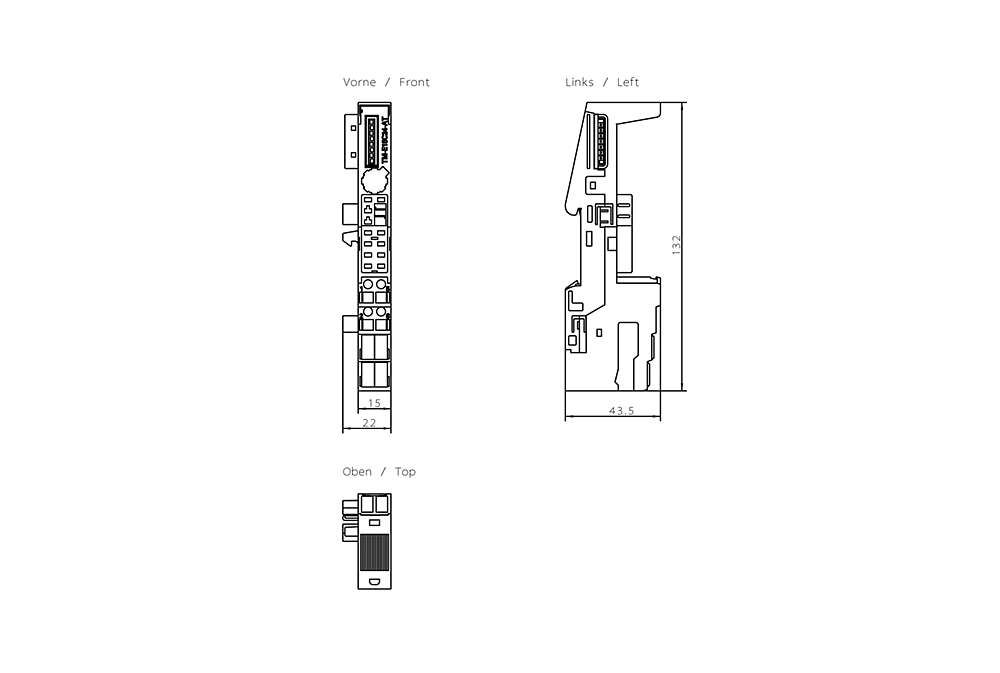

Thông số kỹ thuật
FEATUREVALUE
Width15 mm
Rail mounting possibletrue
With pluggable modules, analogue I/Otrue
Suitable for safety functionsfalse
With pluggable modules, digital I/Ofalse
Rack-assembly possiblefalse
Height132 mm
With pluggable modules, central modulesfalse
Front built-in possiblefalse
Depth43 mm
Output voltage DC28.8 V
Appendant operation agent (Ex ib)false
System accessorytrue
Number of slots2
With pluggable modules, othersfalse
Output voltage DC20.4 V
Type of voltage (input voltage)DC
Wall mounting/direct mountingtrue
With integrated power supplyfalse
Max. input current DC10 A
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
With pluggable modules, function and technology modulesfalse
With pluggable modules, communication modulesfalse
Max. output current DC10 A
Type of output voltageDC
Input voltage DC28.8 V
