Material ID: 6ES7193-6BP20-0BB0

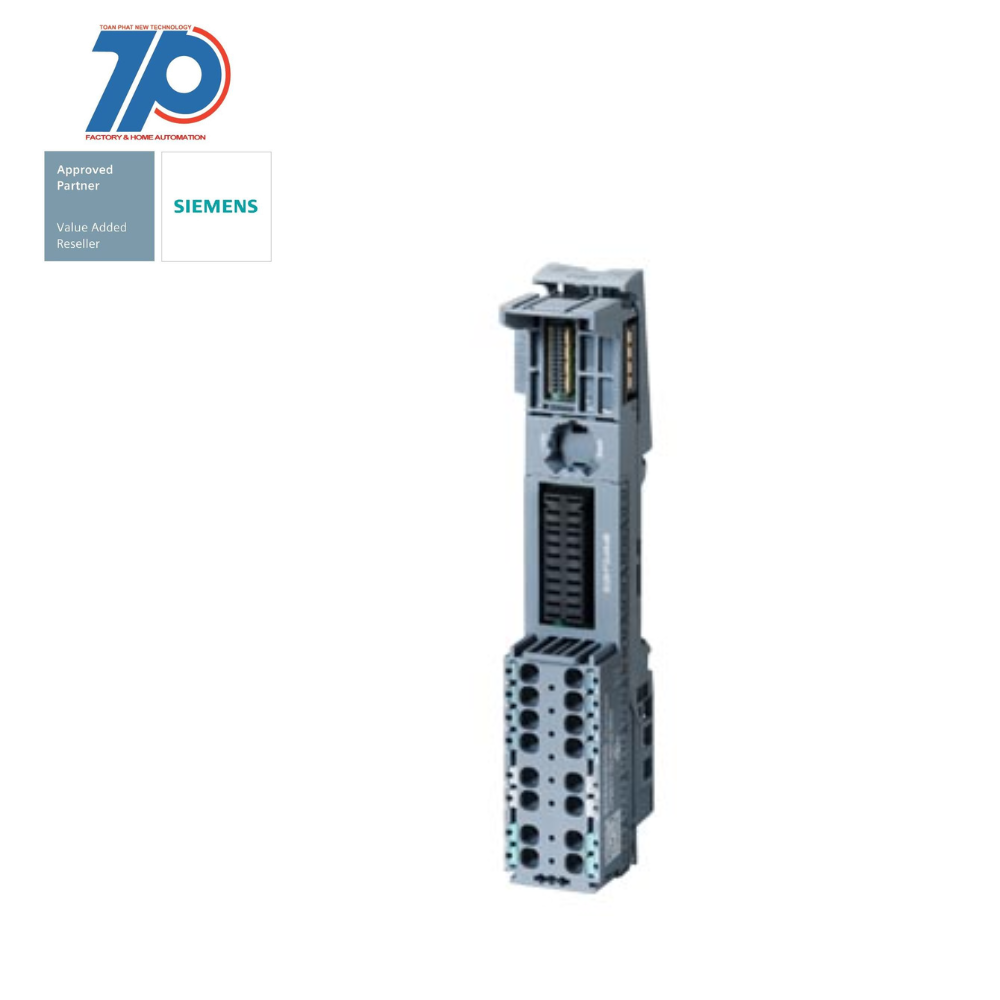

- SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm
- SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system.
- Small footprint, well-suited for installation in small control boxes near the machine.
- Modules can be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS.
- Expandable with up to 64 I/O modules, inserted in any combination.
- Comprehensive range of modules, including standard, extended range, and basic function modules.
- Easy application with free selection of PROFINET connection technology, tool-free wiring with push-in technology, improved accessibility of wiring, and channel-precise diagnostic functions.
- Availability and productivity ensured by hot swapping capability.
- Scalable and cost-optimized configuration with a wide range of signal modules.
- Fail-safe variants available for applications up to SIL 3 / PLe.
- Integrated motor starters suitable for motors up to 5.5 kW.
- Energy Meters, IO-Link master (V1.1.), and other communication and technology modules available for adaptation to any automation task.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | AC/DC |
| Input voltage AC 50 Hz | 0 V |
| Input voltage DC | 0 V |
| Input voltage AC 60 Hz | 230 V |
| Input voltage AC 60 Hz | 0 V |
| Output voltage AC 60 Hz | 230 V |
| Output voltage AC 50 Hz | 230 V |
| Rail mounting possible | true |
| Output voltage AC 50 Hz | 0 V |
| Width | 20 mm |
| With integrated power supply | false |
| Suitable for safety functions | false |
| Depth | 35 mm |
| With pluggable modules, analogue I/O | false |
| Input voltage DC | 24 V |
| Output voltage AC 60 Hz | 0 V |
| System accessory | true |
| Front built-in possible | false |
| Appendant operation agent (Ex ib) | false |
| Height | 117 mm |
| Input voltage AC 50 Hz | 230 V |
| With pluggable modules, communication modules | true |
| Output voltage DC | 24 V |
| Wall mounting/direct mounting | false |
| Appendant operation agent (Ex ia) | false |
| With pluggable modules, function and technology modules | true |
| With pluggable modules, digital I/O | true |
| With pluggable modules, others | false |
| Rack-assembly possible | false |
| Output voltage DC | 0 V |
| With pluggable modules, central modules | false |
| Number of slots | 1 |
| System accessory | true |
| With pluggable modules, communication modules | true |
| With pluggable modules, others | false |
| Input voltage AC 60 Hz | 230 V |
| Input voltage AC 50 Hz | 230 V |
| Input voltage DC | 24 V |
| Suitable for safety functions | false |
| Appendant operation agent (Ex ib) | false |
| With pluggable modules, central modules | false |
| Wall mounting/direct mounting | false |
| Output voltage AC 50 Hz | 0 V |
| Rail mounting possible | true |
| With pluggable modules, digital I/O | true |
| With pluggable modules, function and technology modules | true |
| Rack-assembly possible | false |
| Input voltage AC 60 Hz | 0 V |
| With pluggable modules, analogue I/O | false |
| Width | 20 mm |
| Output voltage DC | 24 V |
| Depth | 35 mm |
| Input voltage AC 50 Hz | 0 V |
| Type of output voltage | AC/DC |
| Type of voltage (input voltage) | AC/DC |
| Output voltage AC 60 Hz | 230 V |
| Output voltage AC 60 Hz | 0 V |
| With integrated power supply | false |
| Front built-in possible | false |
| Appendant operation agent (Ex ia) | false |
| Number of slots | 1 |
| Height | 117 mm |
| Output voltage AC 50 Hz | 230 V |
| Input voltage DC | 0 V |
| Output voltage DC | 0 V |
