6ES7193-6BP20-0BC1

Thương hiệu: Siemens

Loại: ET200SP

MSP: 6ES7193-6BP20-0BC1

Liên hệ

Cam kết bán hàng

Material ID: 6ES7193-6BP20-0BC1

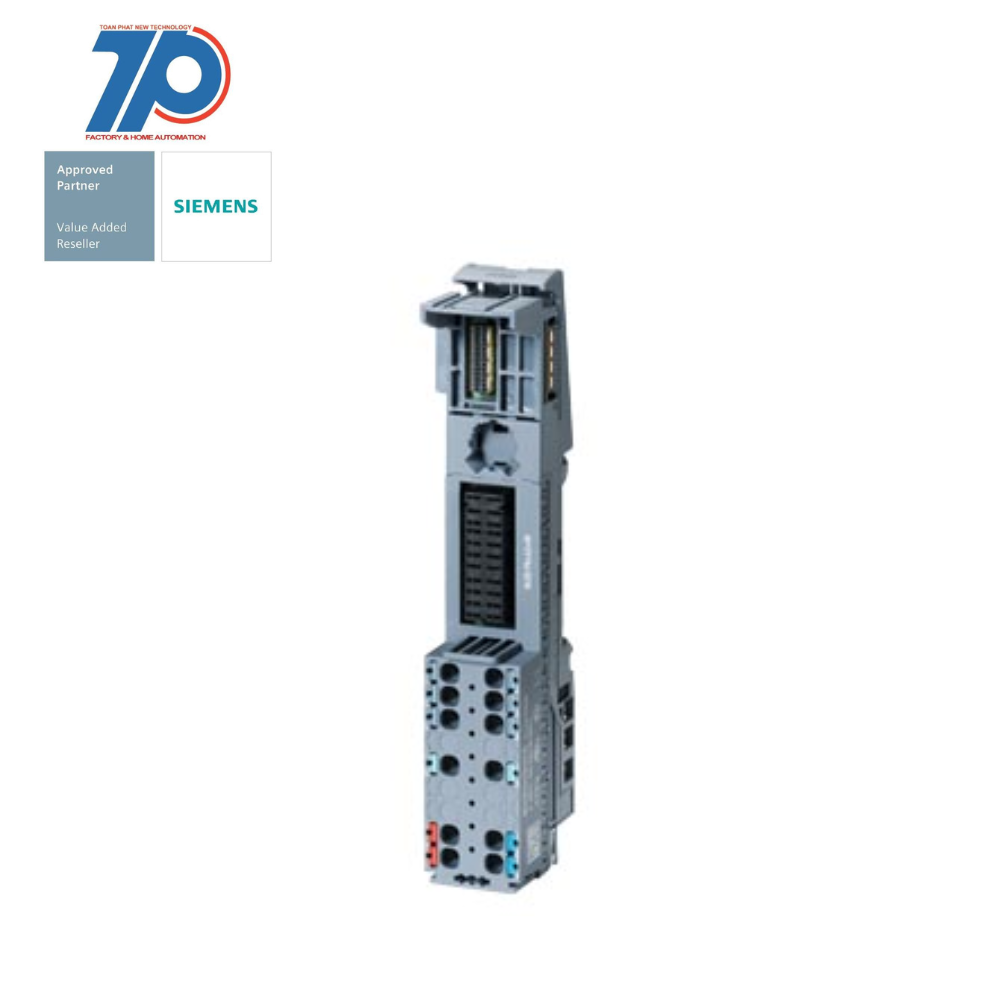

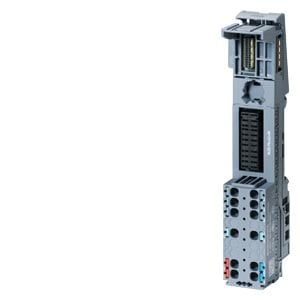

SIMATIC ET 200SP, BaseUnit Type C1, BU20-P6+A2+4B BU type C1, Push-in terminals, with 2 AUX terminals, bridged to the left, WxH: 20 mmx117 mm
SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system.
Small footprint, well-suited for installation in small control boxes near the machine.
Modules can be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS.
Expandable with up to 64 I/O modules, inserted in any combination.
Comprehensive range of modules, including standard, high feature, high speed, and basic function modules.
PROFINET connection technology via BusAdapter.
Tool-free wiring with push-in technology.
Improved accessibility of wiring with new arrangement of spring releases.
Channel-precise diagnostic functions.
Hot swapping capability for swapping modules and terminal boxes during operation.
Wide range of signal modules for scalable, cost-optimized configuration.
Fail-safe variants available for applications up to SIL 3 / PLe.
Integrated motor starters suitable for motors up to 5.5 kW.
Energy Meters for measuring and analyzing energy consumption.
IO-Link master (V1.1.) and other communication and technology modules available.

Additional Information

Thông số kỹ thuật

FEATURE	VALUE
Appendant operation agent (Ex ia)	false
Rack-assembly possible	false
Output voltage DC	0 V
With pluggable modules, central modules	false
System accessory	true
Height	117 mm
Suitable for safety functions	true
Input voltage AC 60 Hz	0 V
Input voltage DC	24 V
With pluggable modules, analogue I/O	false
Type of output voltage	AC/DC
With pluggable modules, others	false
Rail mounting possible	true
Front built-in possible	false
Output voltage DC	24 V
Input voltage AC 60 Hz	230 V
Input voltage DC	0 V
With pluggable modules, digital I/O	false
Width	20 mm
Type of voltage (input voltage)	AC/DC
Output voltage AC 50 Hz	0 V
Output voltage AC 60 Hz	230 V
Output voltage AC 50 Hz	230 V
With pluggable modules, function and technology modules	false
Appendant operation agent (Ex ib)	false
Depth	35 mm
Input voltage AC 50 Hz	0 V
With integrated power supply	false
With pluggable modules, communication modules	true
Wall mounting/direct mounting	false
Input voltage AC 50 Hz	230 V
Output voltage AC 60 Hz	0 V
Number of slots	1
