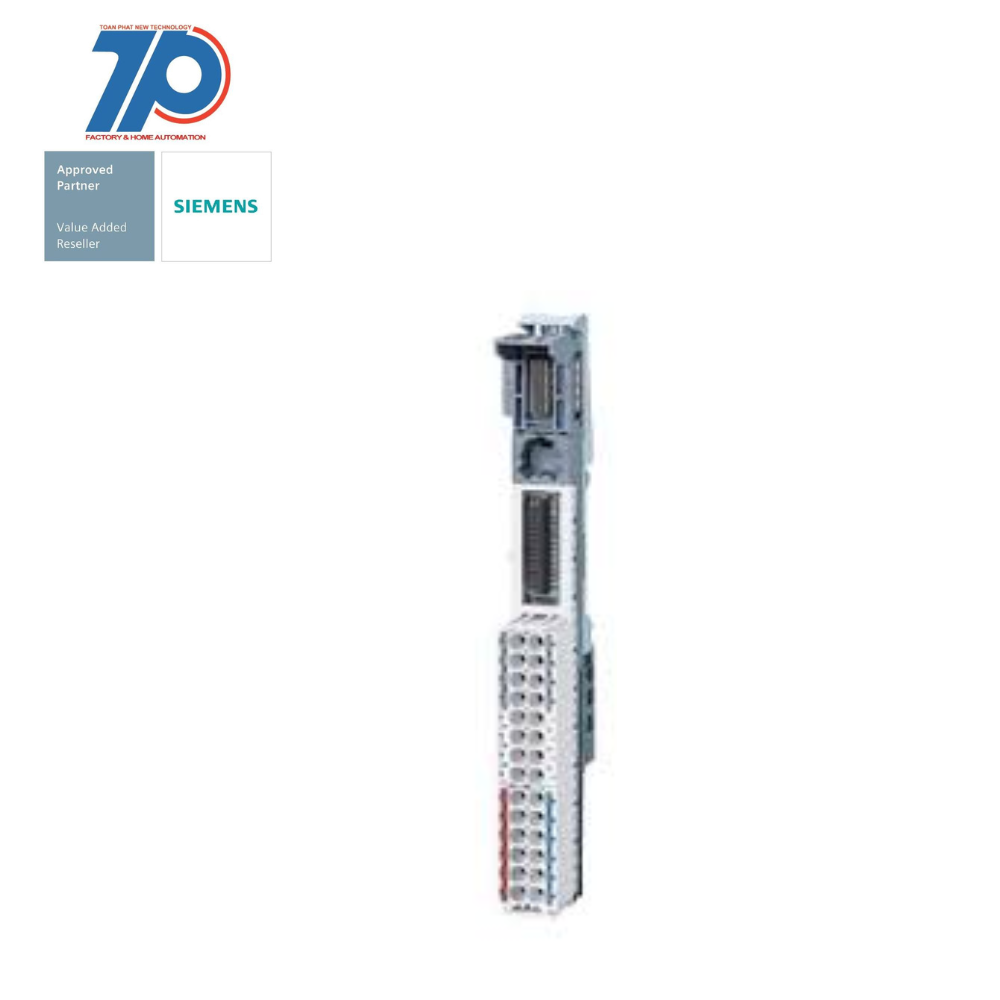

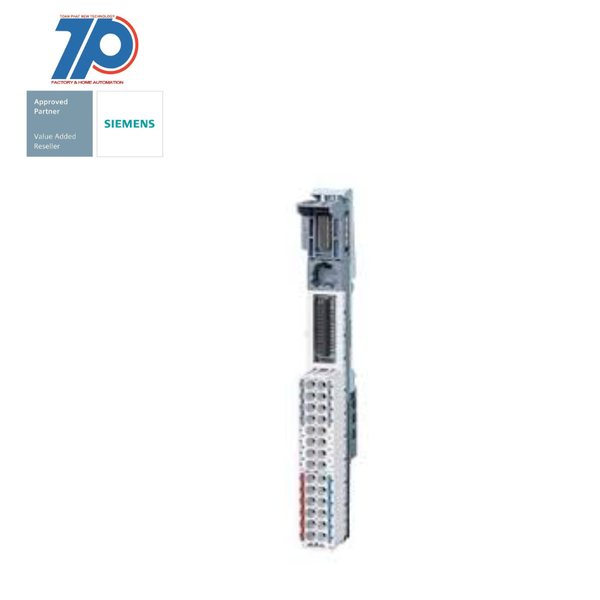

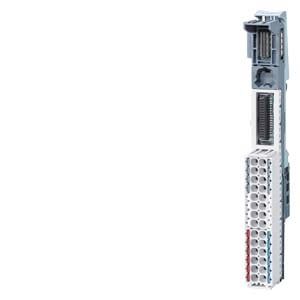

Material ID: 6ES7193-6BP40-0DA1
- SIMATIC ET 200SP, BaseUnit BU15-P16+A0+12D/T, BU type A1, Push-in terminals, with 2x 5 add-on terminals, New load group, WxH: 15 mm x 141 mm, with temperature acquisition
- Modular, scalable, and highly flexible distributed I/O system
- Small footprint, well-suited for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules, inserted in any combination
- Comprehensive range of modules, including standard, extended range, and basic function modules
- Easy application with free selection of PROFINET connection technology, tool-free wiring with push-in technology, improved accessibility of wiring
- Capability of swapping modules and terminal boxes during operation
- Scalable and cost-optimized configuration with wide range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters suitable for motors up to 5.5 kW
- Energy Meters for measuring and analyzing energy consumption
- IO-Link master (V1.1.) and other communication and technology modules available
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Width | 15 mm |
| System accessory | true |
| Type of output voltage | DC |
| Input voltage DC | 24 V |
| Appendant operation agent (Ex ib) | false |
| Wall mounting/direct mounting | false |
| Output voltage DC | 28.8 V |
| Depth | 35 mm |
| Front built-in possible | false |
| With integrated power supply | false |
| With pluggable modules, digital I/O | false |
| Number of slots | 1 |
| With pluggable modules, analogue I/O | true |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| Appendant operation agent (Ex ia) | false |
| With pluggable modules, central modules | false |
| With pluggable modules, function and technology modules | false |
| With pluggable modules, communication modules | false |
| Input voltage DC | 0 V |
| Suitable for safety functions | true |
| With pluggable modules, others | false |
| Height | 141 mm |
| Type of voltage (input voltage) | DC |
| Output voltage DC | 19.2 V |
| Wall mounting/direct mounting | false |
| Appendant operation agent (Ex ia) | false |
| Rail mounting possible | true |
| Output voltage DC | 28.8 V |
| Height | 141 mm |
| Input voltage DC | 0 V |
| With pluggable modules, others | false |
| Input voltage DC | 24 V |
| Type of voltage (input voltage) | DC |
| Type of output voltage | DC |
| Appendant operation agent (Ex ib) | false |
| Rack-assembly possible | false |
| Front built-in possible | false |
| Number of slots | 1 |
| Suitable for safety functions | true |
| System accessory | true |
| With pluggable modules, communication modules | false |
| With pluggable modules, central modules | false |
| With pluggable modules, digital I/O | false |
| With pluggable modules, function and technology modules | false |
| Output voltage DC | 19.2 V |
| With pluggable modules, analogue I/O | true |
| Depth | 35 mm |
| With integrated power supply | false |
| Width | 15 mm |
