Material ID: 6ES7193-7AA00-0AA0

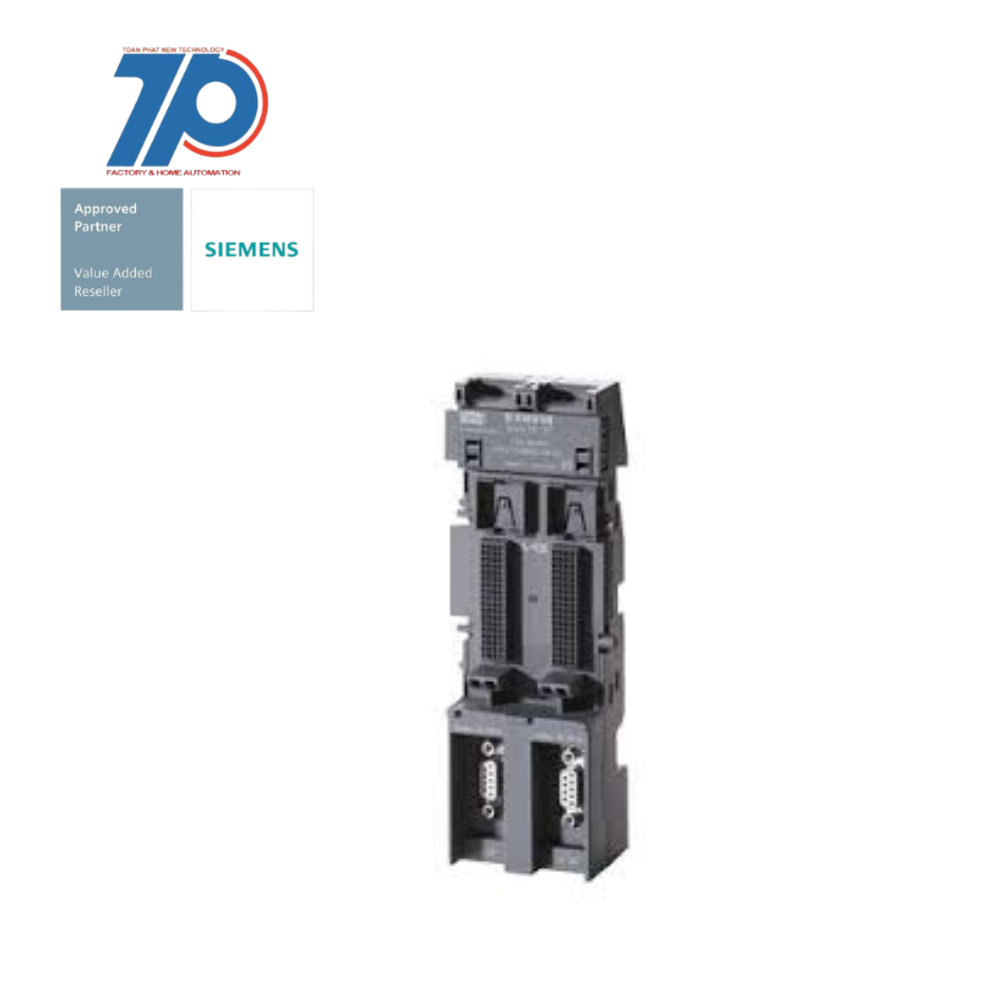

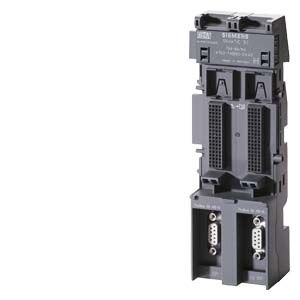

SIMATIC DP, terminal module TM-IM/EM60S for ET200iSP

The SIMATIC DP terminal module TM-IM/EM60S is designed for use with the ET200iSP system. It is capable of holding the IM152-1 and an electronic module. The module features screw terminals for easy and secure connections.

Technical Features:

Commercial Benefits:

The terminal module TM-IM/EM60S offers the following commercial benefits:

    • Ex eb [ia Ga/ib] IIC T4 Gb
    • Ex eb [ia IIIC Da] IIC T4 Gb
    • Ex eb [ia/ib] I Mb
    • Enhanced safety with Ex eb [ia Ga/ib] IIC T4 Gb certification
    • Protection against dust and water with Ex eb [ia IIIC Da] IIC T4 Gb certification
    • Flexibility for various applications with Ex eb [ia/ib] I Mb certification
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Output voltage DC28.8 V
Input voltage DC20.4 V
Height190 mm
System accessorytrue
Suitable for safety functionstrue
With pluggable modules, digital I/Otrue
With integrated power supplyfalse
Max. output current DC4 A
Input voltage DC28.8 V
Rail mounting possibletrue
Depth52 mm
With pluggable modules, otherstrue
Type of output voltageDC
With pluggable modules, analogue I/Otrue
Type of voltage (input voltage)DC
Width60 mm
With pluggable modules, central modulestrue
Front built-in possiblefalse
Rack-assembly possiblefalse
Appendant operation agent (Ex ia)true
Number of slots2
Appendant operation agent (Ex ib)true
With pluggable modules, communication modulesfalse
With pluggable modules, function and technology modulesfalse
Max. input current DC4 A
Output voltage DC20.4 V
Wall mounting/direct mountingfalse
