Material ID: 6ES7193-7AA10-0AA0

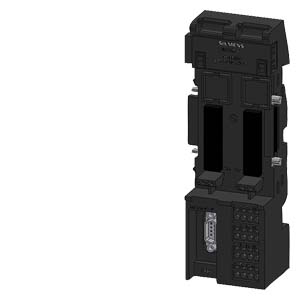

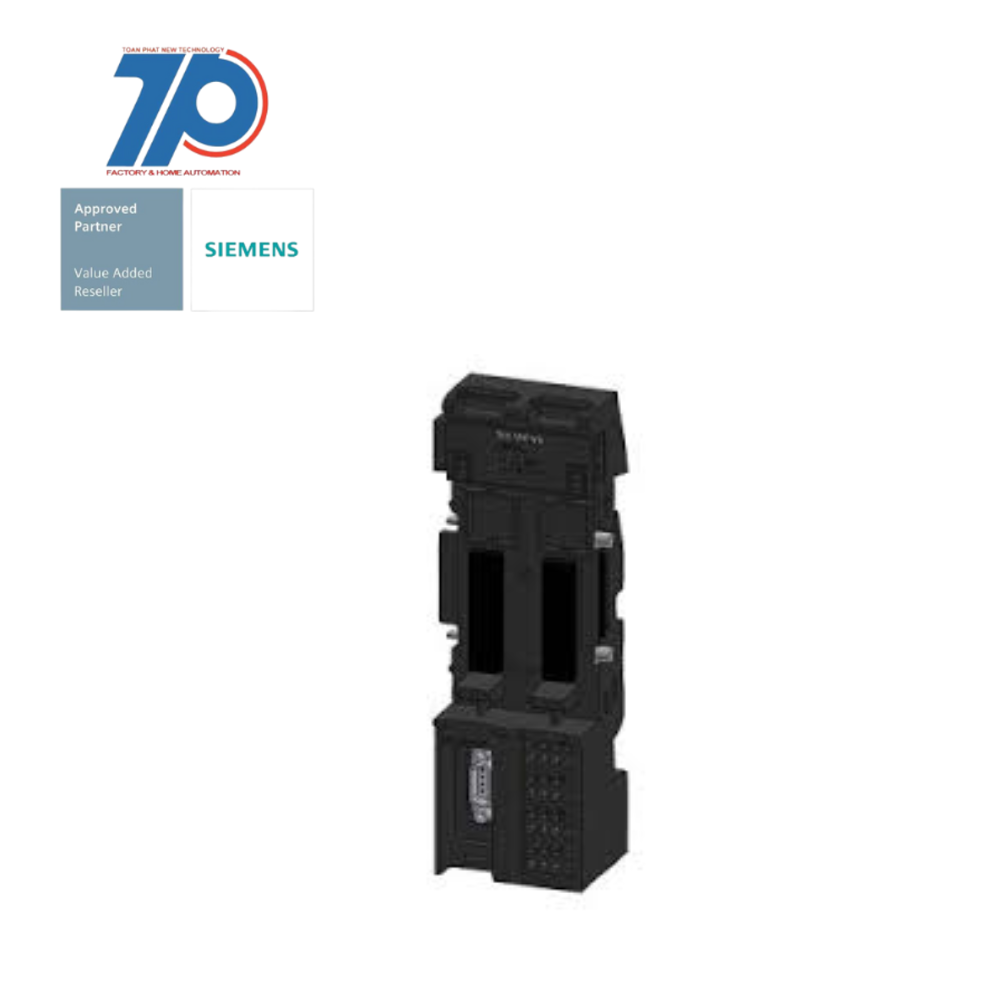

SIMATIC DP, terminal module TM-IM/EM60C for ET200iSP
The SIMATIC DP terminal module TM-IM/EM60C is designed specifically for the ET200iSP system. It is capable of holding the IM152-1 and an electronic module, providing a convenient and efficient solution for your industrial automation needs.
Technical Features:
Commercial Benefits:
The SIMATIC DP terminal module TM-IM/EM60C offers several commercial benefits:
With its robust design and advanced features, the SIMATIC DP terminal module TM-IM/EM60C is the ideal choice for your industrial automation projects.
- Spring-loaded terminals for easy and secure connection
- Includes power bus termination module
- Ex eb [ia Ga/ib] IIC T4 Gb certified
- Ex eb [ia IIIC Da] IIC T4 Gb certified
- Ex eb [ia/ib] I Mb certified
- Enhanced safety with Ex eb [ia Ga/ib] IIC T4 Gb certification
- Reliable performance with Ex eb [ia IIIC Da] IIC T4 Gb certification
- Flexible integration with Ex eb [ia/ib] I Mb certification
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Width | 60 mm |
| Output voltage DC | 20.4 V |
| With pluggable modules, others | true |
| Suitable for safety functions | true |
| With pluggable modules, digital I/O | true |
| With pluggable modules, function and technology modules | false |
| Appendant operation agent (Ex ib) | true |
| Input voltage DC | 28.8 V |
| Appendant operation agent (Ex ia) | true |
| System accessory | true |
| Rail mounting possible | true |
| Height | 190 mm |
| Input voltage DC | 20.4 V |
| Rack-assembly possible | false |
| Depth | 52 mm |
| Number of slots | 2 |
| With pluggable modules, analogue I/O | true |
| Front built-in possible | false |
| Max. input current DC | 4 A |
| Output voltage DC | 28.8 V |
| Type of output voltage | DC |
| Wall mounting/direct mounting | false |
| With integrated power supply | false |
| Max. output current DC | 4 A |
| With pluggable modules, communication modules | false |
| Type of voltage (input voltage) | DC |
| With pluggable modules, central modules | false |
