Material ID: 6ES7193-7AA20-0AA0

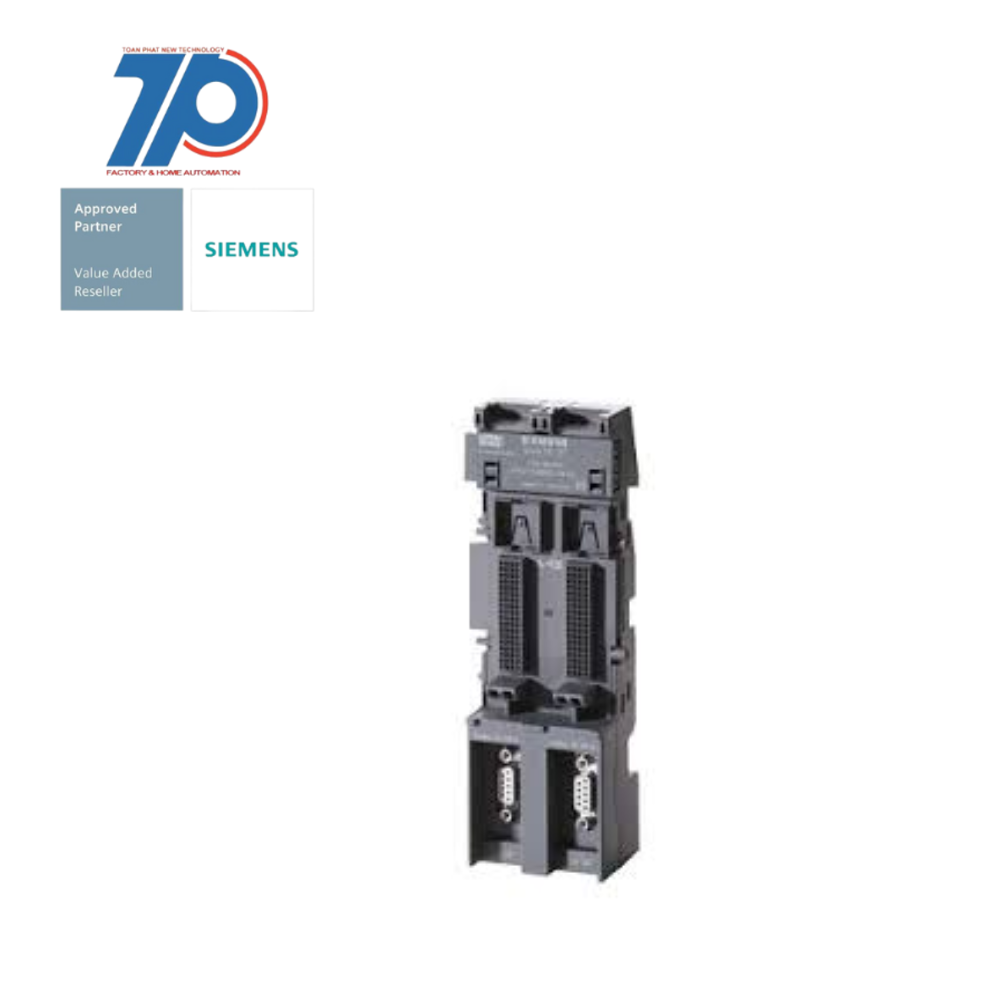

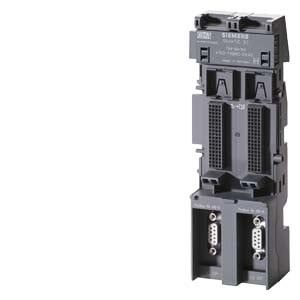

SIMATIC DP, terminal module TM-IM/EM60S for ET200iSP

The SIMATIC DP terminal module TM-IM/EM60S is designed for use with the ET200iSP system. It is capable of holding the IM152-1 and an electronic module. The module features screw terminals in black and includes a power bus termination module.

Technical Features:

Commercial Benefits:

The terminal module TM-IM/EM60S offers the following commercial benefits:

    • Ex eb [ia Ga/ib] IIC T4 Gb
    • Ex eb [ia IIIC Da] IIC T4 Gb
    • Ex eb [ia/ib] I Mb
    • Enhanced safety with Ex eb [ia Ga/ib] IIC T4 Gb certification
    • Protection against dust and water with Ex eb [ia IIIC Da] IIC T4 Gb certification
    • Flexible installation options with Ex eb [ia/ib] I Mb certification
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, central modulesfalse
Width60 mm
Depth52 mm
With pluggable modules, analogue I/Otrue
Type of output voltageDC
Max. input current DC4 A
System accessorytrue
Front built-in possiblefalse
Output voltage DC28.8 V
With pluggable modules, communication modulesfalse
Rack-assembly possiblefalse
Number of slots2
With pluggable modules, function and technology modulesfalse
Input voltage DC28.8 V
Max. output current DC4 A
With pluggable modules, otherstrue
With integrated power supplyfalse
Appendant operation agent (Ex ib)false
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Height190 mm
Suitable for safety functionstrue
With pluggable modules, digital I/Otrue
Type of voltage (input voltage)DC
Rail mounting possibletrue
Wall mounting/direct mountingfalse
Output voltage DC20.4 V
