Material ID: 6ES7193-7AB00-0AA0

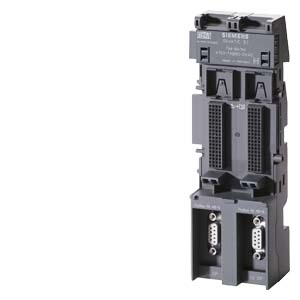

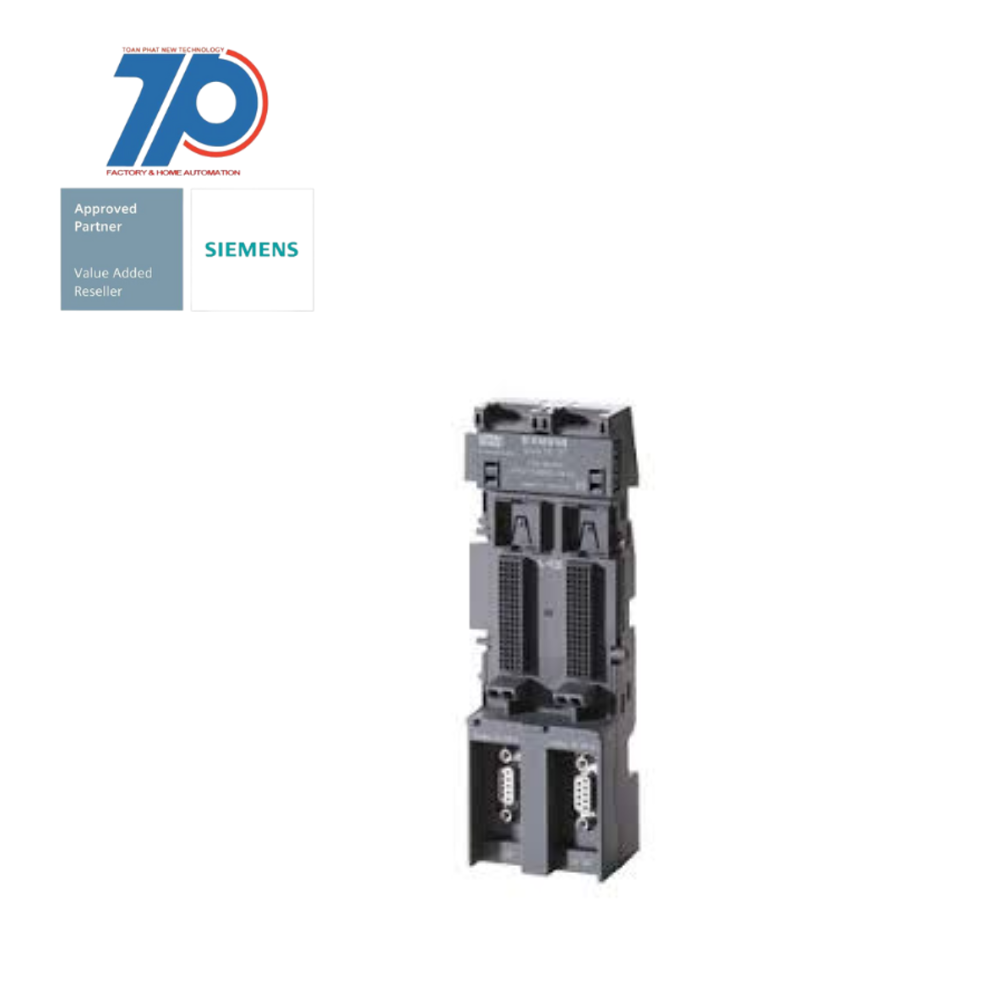

SIMATIC DP, terminal module TM-IM/IM for ET200iSP
The SIMATIC DP terminal module TM-IM/IM is designed for use with the ET200iSP system. It is capable of holding two IM152-1 units and supports redundant operation.
Technical Features:
Commercial Benefits:
The TM-IM/IM terminal module offers the following commercial benefits:
- Power bus termination module included
- Ex eb [ia Ga/ib] IIC T4 Gb certified
- Ex eb [ia IIIC Da] IIC T4 Gb certified
- Ex eb [ia/ib] I Mb certified
- Enhanced safety with Ex eb [ia Ga/ib] IIC T4 Gb certification
- Wide range of applications with Ex eb [ia IIIC Da] IIC T4 Gb certification
- Flexible connectivity options with Ex eb [ia/ib] I Mb certification
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Input voltage DC | 28.8 V |
| With pluggable modules, analogue I/O | false |
| Suitable for safety functions | true |
| Rail mounting possible | true |
| Wall mounting/direct mounting | false |
| System accessory | true |
| Type of output voltage | DC |
| Appendant operation agent (Ex ib) | true |
| With pluggable modules, function and technology modules | false |
| Height | 190 mm |
| Input voltage DC | 20.4 V |
| Number of slots | 2 |
| Output voltage DC | 20.4 V |
| Max. output current DC | 4 A |
| With pluggable modules, digital I/O | false |
| With pluggable modules, central modules | true |
| Depth | 52 mm |
| With pluggable modules, communication modules | false |
| Type of voltage (input voltage) | DC |
| Rack-assembly possible | false |
| With pluggable modules, others | true |
| Front built-in possible | false |
| Max. input current DC | 4 A |
| Output voltage DC | 28.8 V |
| Width | 60 mm |
| Appendant operation agent (Ex ia) | true |
| With integrated power supply | false |
