Material ID: 6ES7193-7CA00-0AA0

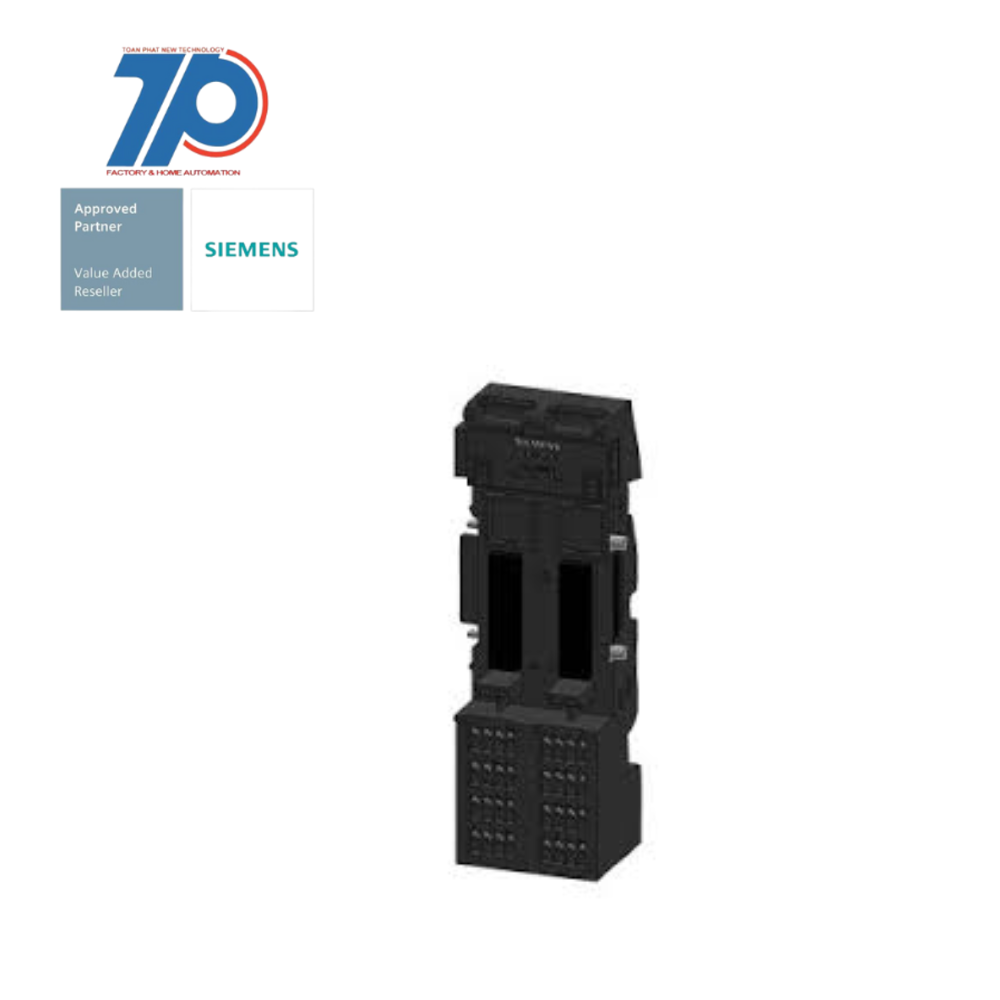

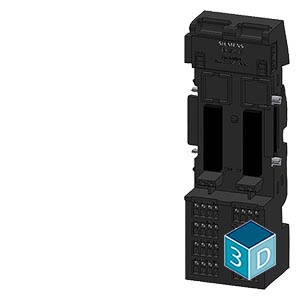

SIMATIC DP, terminal module TM-EM/EM60S for ET200iSP

This terminal module, TM-EM/EM60S, is designed for use with the ET200iSP system. It can accommodate two electronic modules and features screw terminals for easy installation.

Key Technical Features:

Commercial Benefits:

This terminal module offers the following benefits:

    • Ex eb [ia Ga/ib] IIC T4 Gb
    • Ex eb [ia IIIC Da] IIC T4 Gb
    • Ex eb [ia/ib] I Mb
    • Easy integration with the ET200iSP system
    • Supports two electronic modules
    • Secure screw terminals for reliable connections
    • Complies with Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, and Ex eb [ia/ib] I Mb standards
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, communication modulesfalse
With pluggable modules, analogue I/Otrue
With pluggable modules, otherstrue
Depth52 mm
Rack-assembly possiblefalse
Wall mounting/direct mountingfalse
Width60 mm
Front built-in possiblefalse
System accessorytrue
Max. input current DC4 A
Input voltage DC20.4 V
Height190 mm
With pluggable modules, central modulesfalse
With integrated power supplyfalse
Input voltage DC28.8 V
Number of slots2
Appendant operation agent (Ex ia)true
With pluggable modules, digital I/Otrue
Suitable for safety functionstrue
Output voltage DC20.4 V
Type of output voltageDC
Max. output current DC4 A
Output voltage DC28.8 V
Appendant operation agent (Ex ib)true
With pluggable modules, function and technology modulesfalse
Type of voltage (input voltage)DC
Rail mounting possibletrue
