Material ID: 6ES7193-7CA10-0AA0Product Description

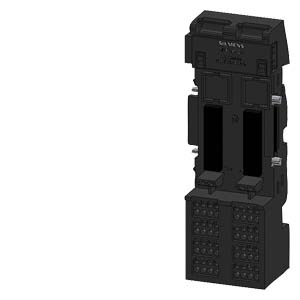

SIMATIC DP, terminal module TM-EM/EM60C for ET200iSP

Technical Features:

Commercial Benefits:

    • Structure: Terminal module for holding two electronic modules
    • Terminals: Spring-loaded terminals
    • Explosion Protection: Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
    • Allows for easy installation and connection of electronic modules
    • Provides secure and reliable spring-loaded terminals
    • Offers explosion protection for hazardous environments
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, function and technology modulesfalse
Input voltage DC20.4 V

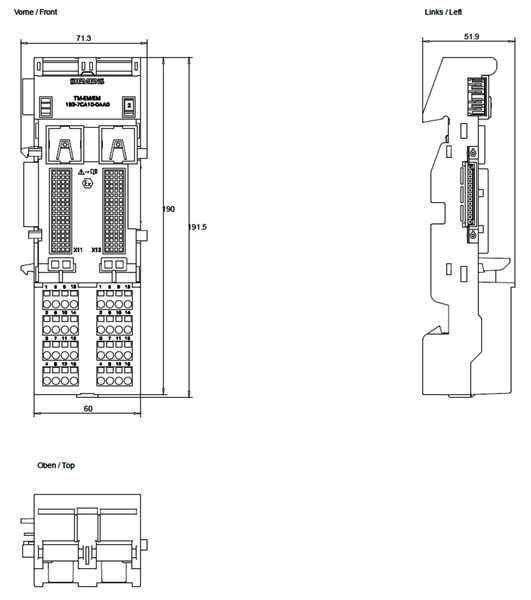

Height190 mm
System accessorytrue
Depth52 mm
With integrated power supplyfalse
Wall mounting/direct mountingfalse
Number of slots2
With pluggable modules, otherstrue
Rail mounting possibletrue
Width60 mm
Max. output current DC4 A
Appendant operation agent (Ex ib)true
With pluggable modules, central modulesfalse
Front built-in possiblefalse
Type of output voltageDC
Output voltage DC20.4 V
Input voltage DC28.8 V
Max. input current DC4 A
Rack-assembly possiblefalse
With pluggable modules, communication modulesfalse
Type of voltage (input voltage)DC
Output voltage DC28.8 V
Appendant operation agent (Ex ia)true
With pluggable modules, analogue I/Otrue
Suitable for safety functionstrue
With pluggable modules, digital I/Otrue
