Material ID: 6ES7193-7CA20-0AA0

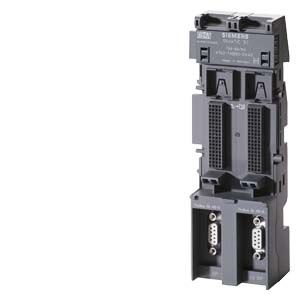

SIMATIC DP, terminal module TM-EM/EM60S for ET200iSP
This terminal module is designed for the ET200iSP system and can accommodate two electronic modules. It features screw terminals in black.
Technical Features:
Commercial Benefits:
This terminal module provides a reliable and secure connection for the ET200iSP system. Its Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, and Ex eb [ia/ib] I Mb certifications ensure compliance with safety standards and regulations.
- Ex eb [ia Ga/ib] IIC T4 Gb
- Ex eb [ia IIIC Da] IIC T4 Gb
- Ex eb [ia/ib] I Mb
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of output voltage | DC |
| With pluggable modules, communication modules | false |
| Max. input current DC | 4 A |
| Number of slots | 2 |
| With pluggable modules, central modules | false |
| With pluggable modules, analogue I/O | true |
| Front built-in possible | false |
| With pluggable modules, others | true |
| Rack-assembly possible | false |
| Depth | 52 mm |
| Type of voltage (input voltage) | DC |
| Max. output current DC | 4 A |
| Appendant operation agent (Ex ib) | false |
| Width | 60 mm |
| Input voltage DC | 28.8 V |
| Output voltage DC | 20.4 V |
| Rail mounting possible | true |
| With pluggable modules, digital I/O | true |
| Suitable for safety functions | true |
| System accessory | true |
| With integrated power supply | false |
| Output voltage DC | 28.8 V |
| Appendant operation agent (Ex ia) | false |
| Height | 190 mm |
| Input voltage DC | 20.4 V |
| Wall mounting/direct mounting | false |
| With pluggable modules, function and technology modules | false |
