6ES7193-7CB00-0AA0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Tiêu đề Tab
Tiêu đề Tab
Material ID: 6ES7193-7CB00-0AA0Product Description

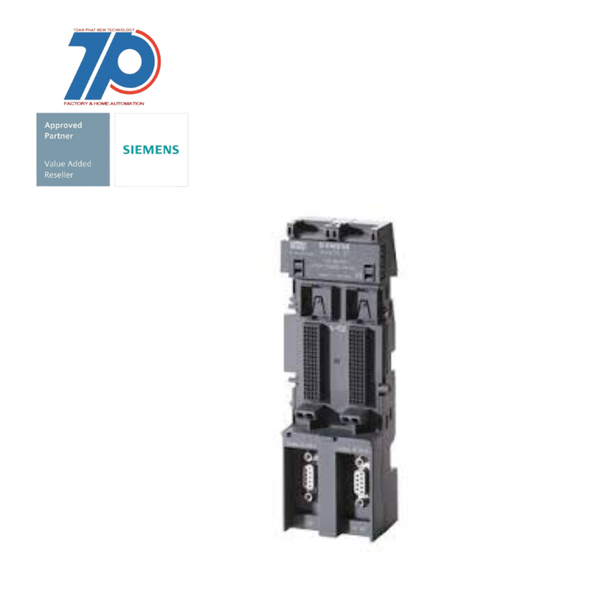

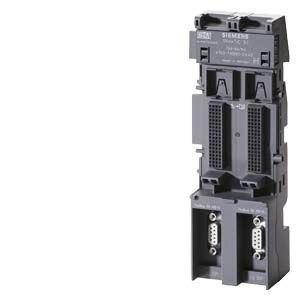

SIMATIC DP, terminal module TM-RM/RM for ET200iSP
The SIMATIC DP terminal module TM-RM/RM for ET200iSP is designed to accommodate two electronic modules. It features screw terminals for easy and secure connections.
This terminal module is certified for use in hazardous environments with the following classifications:
With its robust construction and reliable performance, the SIMATIC DP terminal module TM-RM/RM for ET200iSP provides a safe and efficient solution for industrial applications.
- Ex db eb ib IIC T4 Gb
- Ex db eb ib I Mb
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Input voltage DC | 28.8 V |
| Wall mounting/direct mounting | false |
| Output voltage DC | 20.4 V |
| Appendant operation agent (Ex ib) | true |
| Rail mounting possible | true |
| Front built-in possible | false |
| Max. input current DC | 4 A |
| Number of slots | 2 |
| With pluggable modules, digital I/O | true |

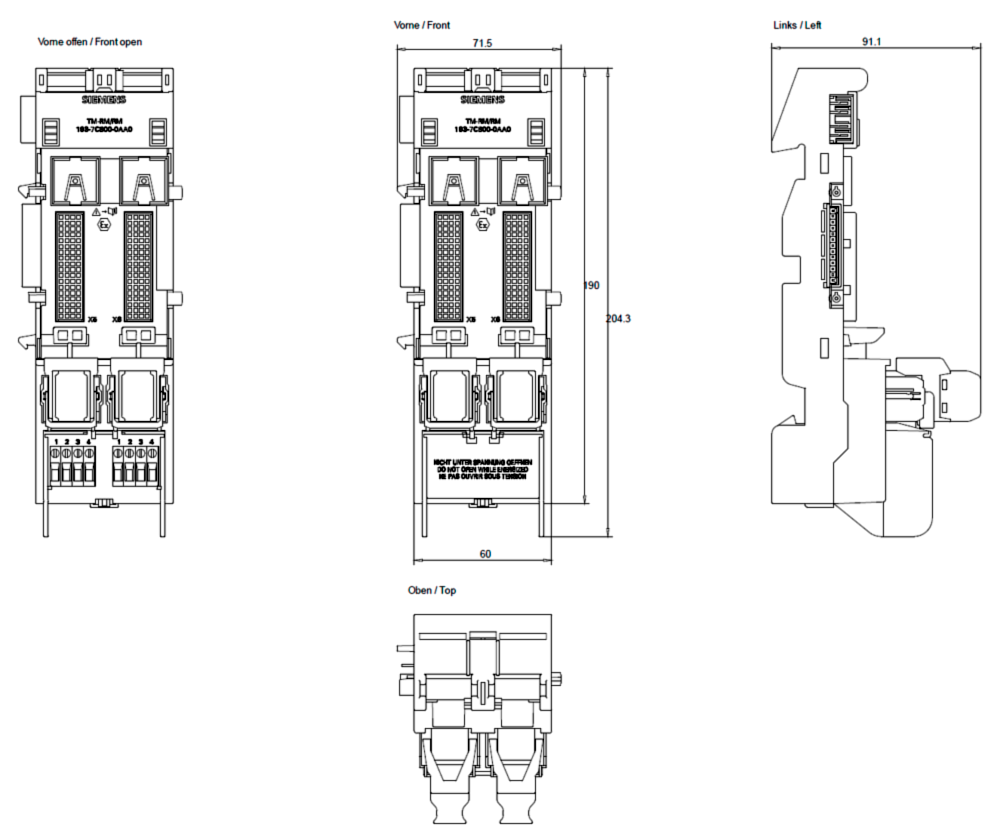

| Height | 190 mm |
| Input voltage DC | 20.4 V |
| Appendant operation agent (Ex ia) | false |
| Type of voltage (input voltage) | DC |
| System accessory | true |
| Suitable for safety functions | false |
| With pluggable modules, others | true |
| Output voltage DC | 28.8 V |
| With integrated power supply | false |
| Max. output current DC | 4 A |
| Width | 60 mm |
| Rack-assembly possible | false |
| With pluggable modules, central modules | false |
| With pluggable modules, function and technology modules | false |
| Depth | 52 mm |
| With pluggable modules, analogue I/O | false |
| With pluggable modules, communication modules | false |
| Type of output voltage | DC |
