Material ID: 6ES7193-7DA20-0AA0

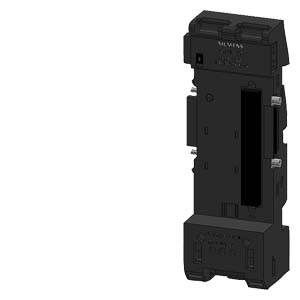

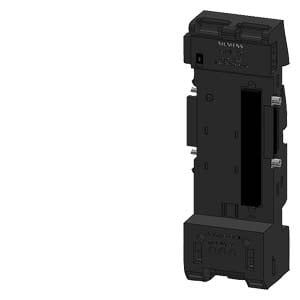

SIMATIC DP, terminal module TM-PS-A Standard

The SIMATIC DP terminal module TM-PS-A Standard is designed for use with the ET200iSP system. It is specifically used for holding the power supply module with the following specifications:

This terminal module provides reliable power supply capabilities for the ET200iSP system, ensuring safe and efficient operation.

    • Power supply: 120/230 V AC and 24 V DC
    • Explosion protection: Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, otherstrue

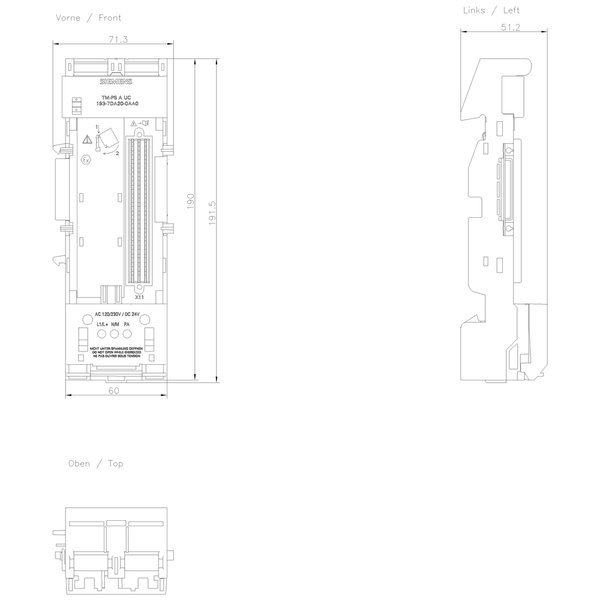

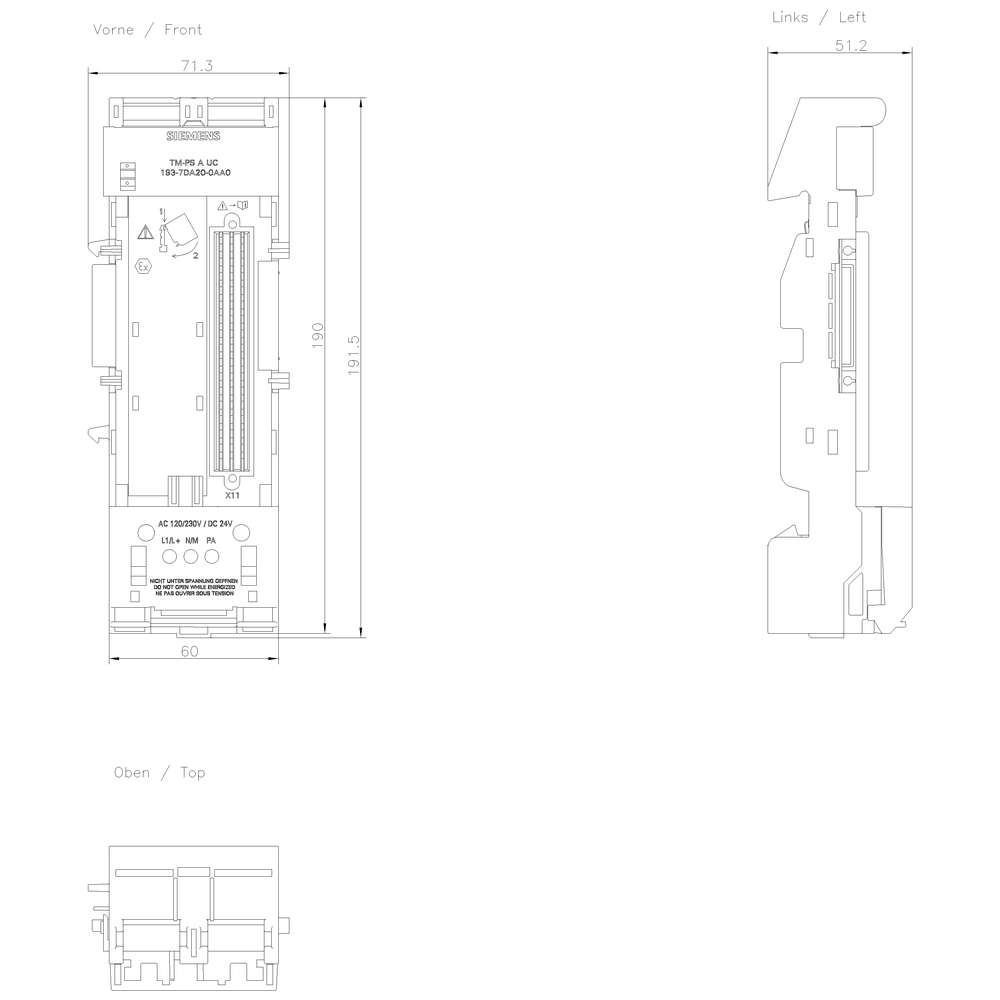

Width60 mm
Input voltage AC 60 Hz264 V
Max. input current AC 60 Hz6 A
With pluggable modules, digital I/Ofalse
System accessorytrue
Input voltage AC 50 Hz264 V
Appendant operation agent (Ex ia)false
Height190 mm
Max. input current AC 50 Hz6 A
With pluggable modules, analogue I/Ofalse
With pluggable modules, function and technology modulesfalse
Number of slots1
With integrated power supplyfalse
Output voltage DC28.8 V
Wall mounting/direct mountingfalse
Appendant operation agent (Ex ib)false
Suitable for safety functionstrue
Type of voltage (input voltage)AC
Input voltage AC 60 Hz85 V
Rack-assembly possiblefalse
Depth52 mm
Input voltage AC 50 Hz85 V
Type of output voltageDC
Output voltage DC20.4 V
Rail mounting possibletrue
Front built-in possiblefalse
With pluggable modules, central modulesfalse
With pluggable modules, communication modulesfalse
Max. output current DC5 A
