Material ID: 6ES7193-7DB20-0AA0

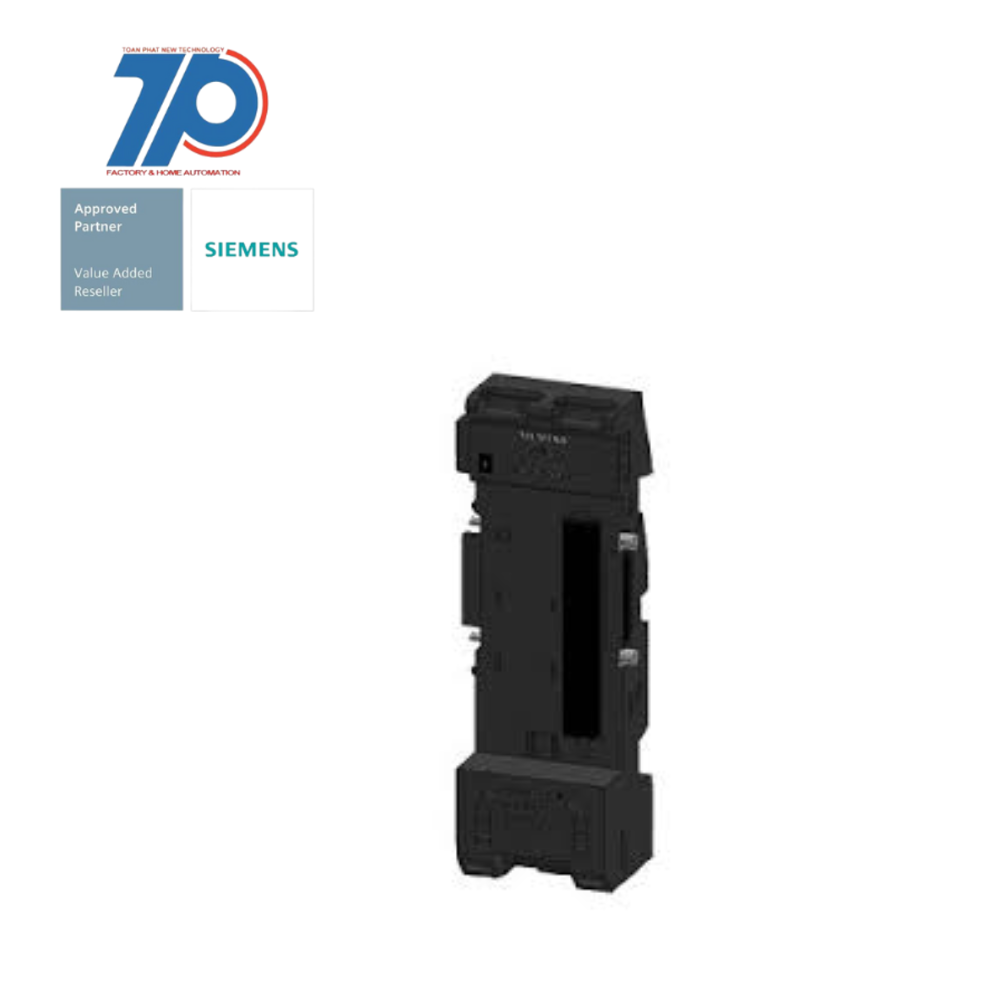

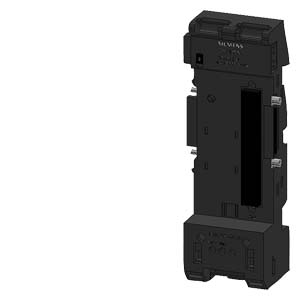

SIMATIC DP, terminal module TM-PS-B for ET200iSP

The SIMATIC DP terminal module TM-PS-B is designed for use with the ET200iSP system. It is compatible with the TM-PS-A module and can hold the redundant power supply module for both 120/230 V AC and 24 V DC.

This terminal module is certified for use in hazardous environments, with the following certifications:

With its robust design and reliable performance, the TM-PS-B terminal module ensures safe and efficient power supply management for your ET200iSP system.

    • Ex eb [ia Ga/ib] IIC T4 Gb
    • Ex eb [ia IIIC Da] IIC T4 Gb
    • Ex eb [ia/ib] I Mb
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Input voltage AC 60 Hz264 V
Type of voltage (input voltage)AC
Number of slots1
Front built-in possiblefalse
Output voltage DC28.8 V
Wall mounting/direct mountingfalse
Output voltage DC20.4 V
With pluggable modules, digital I/Ofalse
Rack-assembly possiblefalse
Max. output current DC5 A
Suitable for safety functionstrue
Type of output voltageDC
Input voltage AC 60 Hz85 V
With pluggable modules, communication modulesfalse
Rail mounting possibletrue
With pluggable modules, central modulesfalse
Max. input current AC 50 Hz6 A
With pluggable modules, analogue I/Ofalse
System accessorytrue
With integrated power supplyfalse
Appendant operation agent (Ex ib)false
With pluggable modules, otherstrue

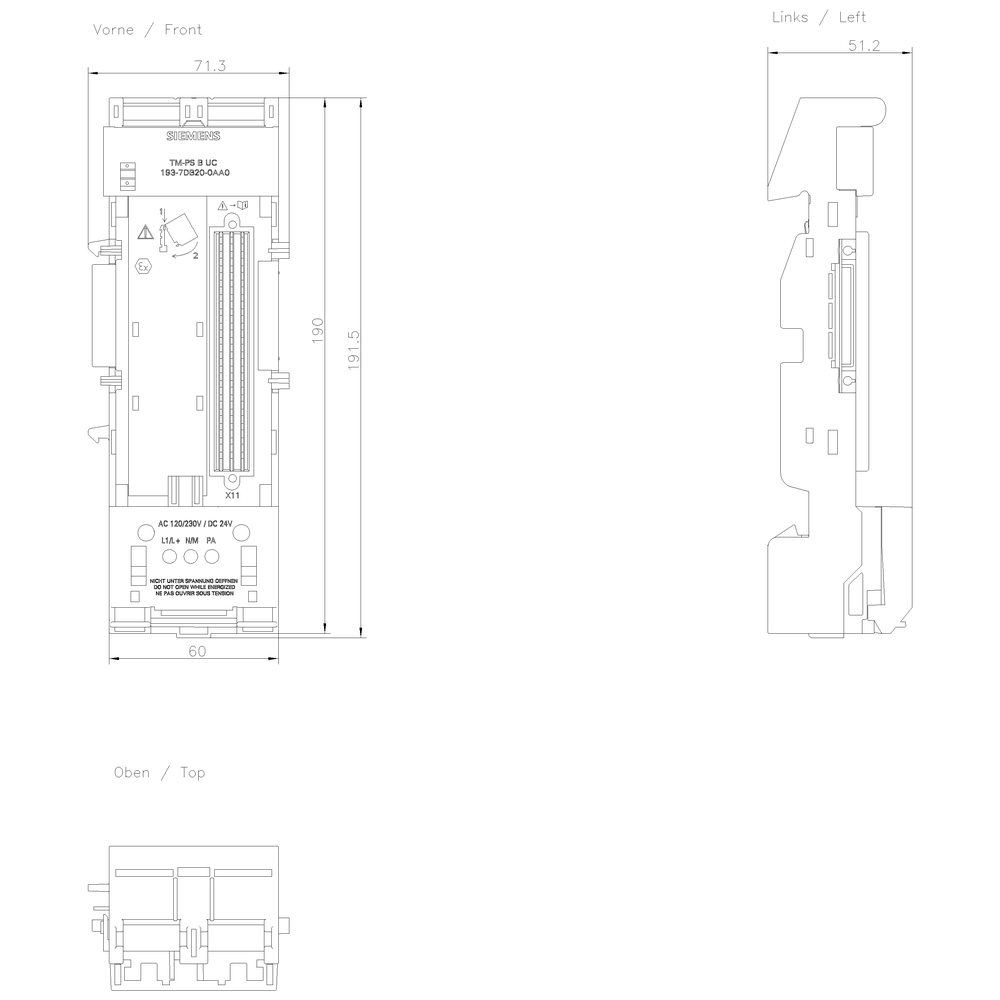

Depth52 mm
Max. input current AC 60 Hz6 A
Width60 mm
Input voltage AC 50 Hz85 V
Appendant operation agent (Ex ia)false
Height190 mm
With pluggable modules, function and technology modulesfalse
Input voltage AC 50 Hz264 V
