Material ID: 6ES7194-4DA00-0AA0

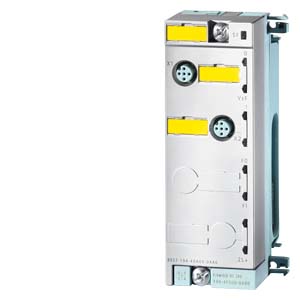

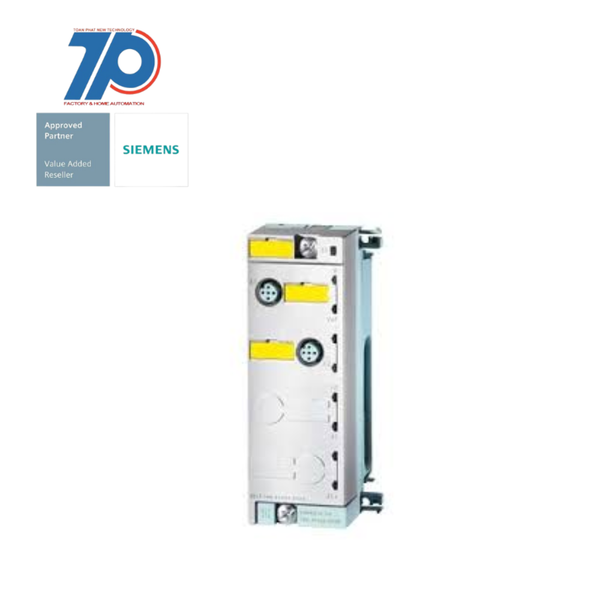

SIMATIC DP, ET 200 PRO Connection module for the fail-safe electronic module F-switch PROFIsafe

SIMATIC ET 200pro is a modular, rugged and versatile I/O system with degree of protection IP65/67 and is characterized by its comprehensive range of modules. With this product, Siemens offers a space-saving and multifunctional device that can be directly installed on the machine thanks to its modular design and does not require a control cabinet.

Technical Features:

Commercial Benefits:

Siemens offers a high-quality and flexible complete solution that can be used where mechanical loads are high due to its rugged construction. Continuous quality management helps the ET 200 products to set new market standards and makes Siemens a reliable partner. The system provides a very wide range of modules. In addition to various digital and analog input and output modules with a wide range of characteristics, a number of fail-safe modules for applications up to SIL 3 / PLe are also available. The ET 200pro system provides integrated solutions especially for motor control in the form of motor starters and frequency converters, which are also available as fail-safe variants. An IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface round out the portfolio.

    • Modular, rugged and versatile I/O system
    • Degree of protection IP65/67
    • Comprehensive range of modules
    • Space-saving and multifunctional device
    • Modular design for direct installation on the machine
    • No control cabinet required
    • Extensive and innovative range of modules
    • Simple installation due to its design
    • Extensive and precise diagnostics functions in High Feature modules
    • Hot swapping for replacing electronic modules without shutting down the plant
    • Rugged construction for high mechanical loads
    • Continuous quality management
    • Wide range of modules including digital and analog input and output modules
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Motor starters and frequency converters for motor control
    • IO-Link master for connecting RFID component devices
    • Module for connecting via RS 232 / 422 interface
    • Flexible and quick response to varied automation requirements
    • Space-saving and simple installation
    • Minimum downtimes with extensive and precise diagnostics functions
    • Hot swapping for easy module replacement
    • High-quality and flexible complete solution
    • Integrated solutions for motor control
    • Wide range of modules for various applications
    • Fail-safe variants available
    • Complete solution for connecting RFID component devices
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Output voltage DC20.4 V
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Type of output voltageDC
Height130 mm
Output voltage DC28.8 V
With pluggable modules, analogue I/Ofalse
Depth39 mm
Type of voltage (input voltage)DC
Max. input current DC8 A
With pluggable modules, function and technology modulesfalse
With pluggable modules, otherstrue
Wall mounting/direct mountingtrue
With pluggable modules, digital I/Ofalse
With integrated power supplyfalse
Number of slots1
System accessorytrue
Front built-in possiblefalse
Width90 mm
Max. output current DC8 A
Suitable for safety functionstrue
Rail mounting possibletrue
Input voltage DC28.8 V
Appendant operation agent (Ex ib)false
With pluggable modules, central modulesfalse
Rack-assembly possiblefalse
With pluggable modules, communication modulestrue
