Material ID: 6ES7195-7HB00-0XA0

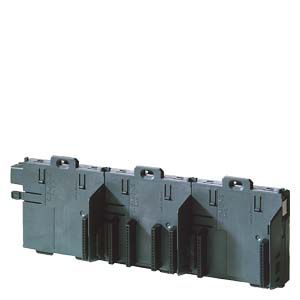

SIMATIC DP, Bus module for ET 200M for holding two 40 mm wide I/O modules for removal and insertion function
SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
Can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
Up to 12 IO modules can be inserted into each station
Standardized setup of all modules simplifies logistics and stocking of spare parts
Can be used for both standard and safety-oriented applications
Supports modules with extended user data, such as HART modules with HART auxiliary variables
Offers FastConnect fast connection technology for easy wiring without stripping

Additional Information

ID: 6ES7195-7HB00-0XA0

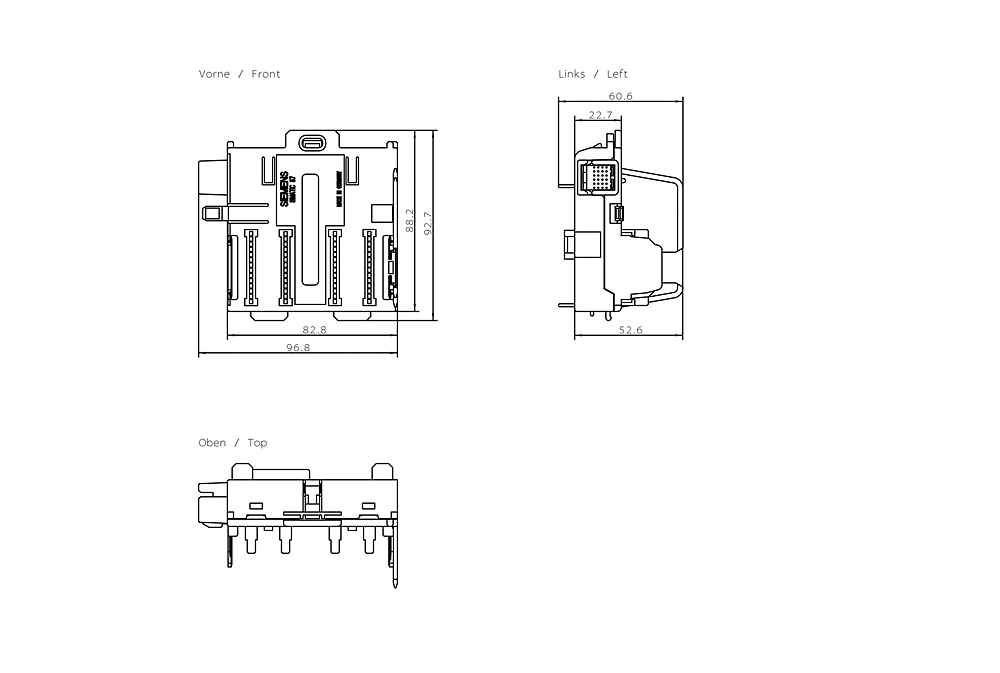

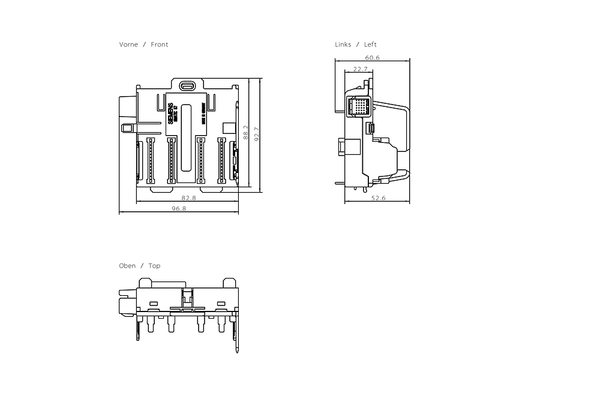

Click to View: ➡️ 3D CAD Model

Thông số kỹ thuật

FEATURE	VALUE
With pluggable modules, central modules	true
Input voltage DC	20.4 V
Appendant operation agent (Ex ia)	false
With pluggable modules, others	true
Rack-assembly possible	false
Wall mounting/direct mounting	true
Number of slots	2
System accessory	true
With pluggable modules, digital I/O	true
Front built-in possible	false
Suitable for safety functions	false
Appendant operation agent (Ex ib)	false
With pluggable modules, function and technology modules	true
Width	97 mm
Rail mounting possible	true
Depth	30 mm
With pluggable modules, analogue I/O	true
Height	92 mm
Input voltage DC	28.8 V
Max. input current DC	6 A
With integrated power supply	false
With pluggable modules, communication modules	true
Type of voltage (input voltage)	DC
