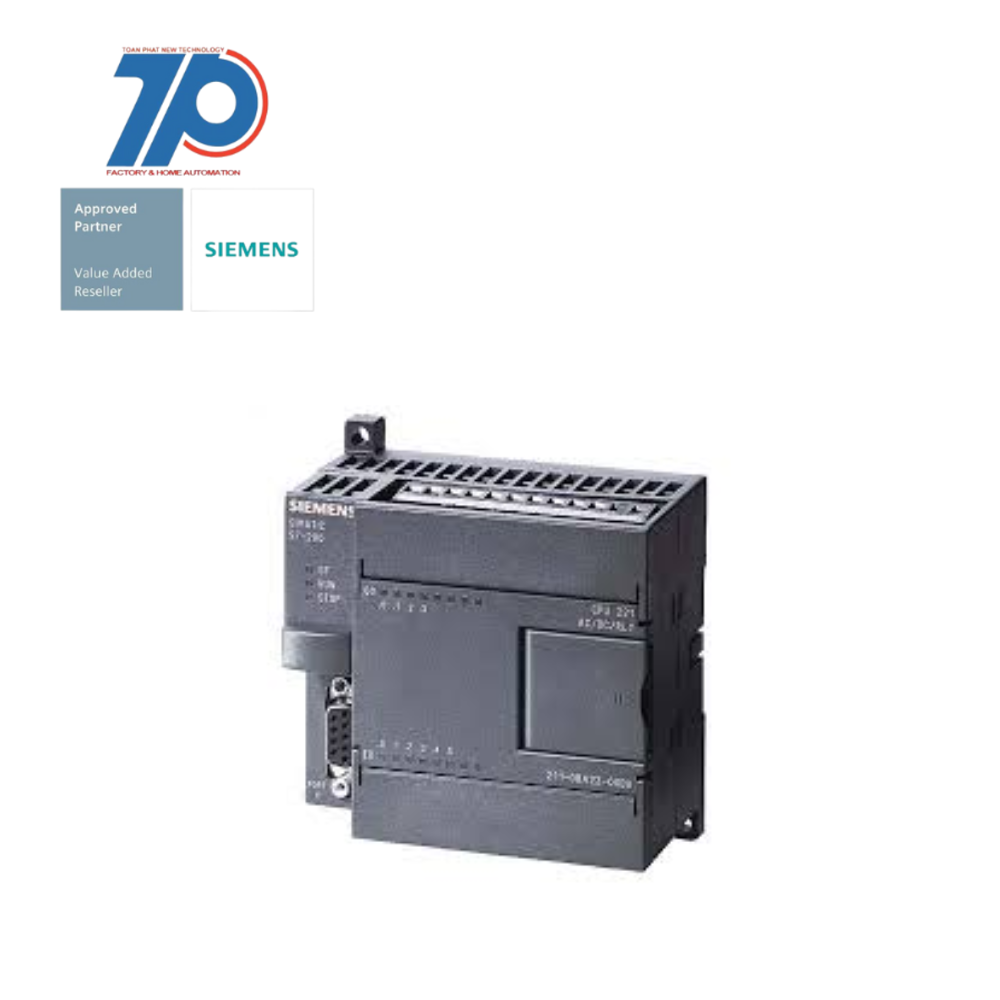

Material ID: 6ES7212-1AB23-0XB8Spare Part - SIMATIC S7-200 CN

Spare Part - SIMATIC S7-200 CN

Technical Features

Commercial Benefits

The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

This spare part is CE approved.

    • CPU: 222 Compact device
    • Power Supply: DC power supply
    • Digital Inputs: 8 DI DC
    • Digital Outputs: 6 DO DC
    • Program Memory: 4 KB
    • Data Memory: 2 KB
    • Expandability: PROFIBUS DP
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
IO link masterfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Number of analogue outputs0
System accessorytrue
Supporting protocol for other bus systemstrue
With optical interfacefalse
Front built-in possibletrue
Wall mounting/direct mountingtrue
Height80 mm
Supply voltage DC28.8 V
Appendant operation agent (Ex ia)false
Radio standard Bluetoothfalse
Type of memoryEEPROM
Number of HW-interfaces USB0
Supporting protocol for Data-Highwayfalse
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supporting protocol for PROFIBUSfalse
Processing time (1K, binary operation)0.22 ms
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Redundancyfalse
Depth62 mm
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-2320
Number of HW-interfaces parallel0
Explosion safety category for dustNone
Supporting protocol for SafetyBUS pfalse
Supporting protocol for TCP/IPfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Radio standard WLAN 802.11false
ModelCompact
Rail mounting possibletrue
Radio standard GSMfalse
Number of digital outputs6
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Additional program memory possibletrue
Number of HW-interfaces wireless0
Appendant operation agent (Ex ib)false
Number of relay outputs0
Supporting protocol for LONfalse
Number of HW-interfaces other0
Number of digital inputs8
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Number of HW-interfaces RS-4220
With displayfalse
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Supporting protocol for Modbusfalse
Memory size6 kByte
Number of analogue inputs0
Supporting protocol for EtherCATfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces RS-4851
Suitable for safety functionsfalse
Width90 mm
Supply voltage DC20.4 V
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Rack-assembly possiblefalse
