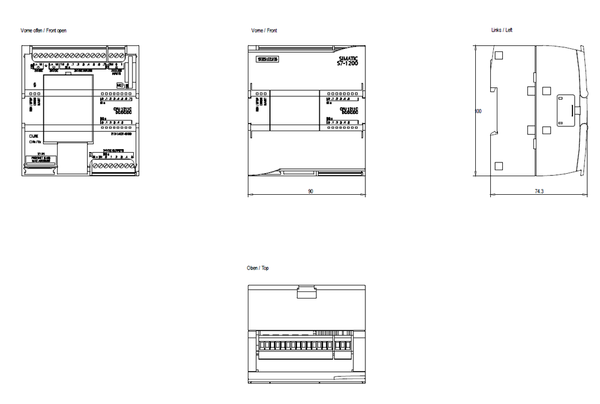

6ES7212-1AE31-0XB0

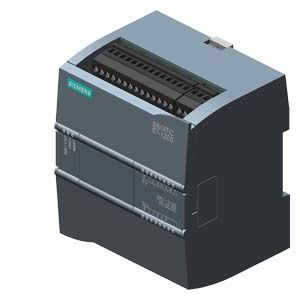

• SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC
• Power supply: DC 20.4-28.8V DC
• Program/data memory 50 KB
• SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options
• The Basic Controllers are first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range
• The CPUs are scaled in their performance and available for different input voltages and with transistor or relay outputs
• Safety versions are also available
• In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules in order to adapt them to your exact requirements
• HMI devices can likewise be connected via the integrated Ethernet interface
• The memory of the CPU can be expanded by means of a memory card, while the PLC is configured using the STEP 7 Basic software in the TIA Portal
• The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks
• Thanks to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants
• Compact design, modular structure and integrated IOs help to save space in the control cabinet
• The STEP 7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system
• This means lower configuration costs and faster commissioning
