Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Material ID: 6ES7212-1HE31-0XB0

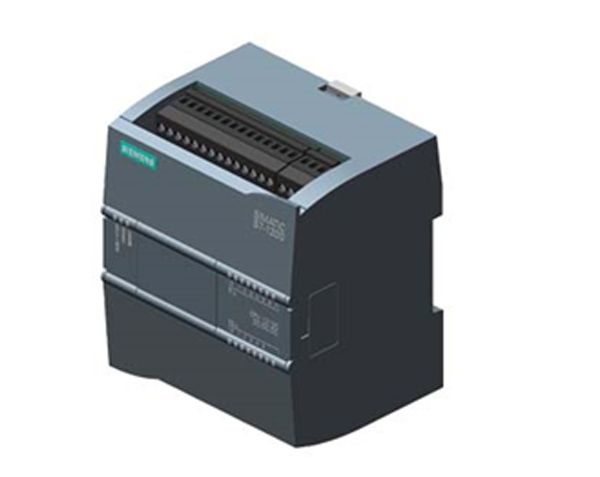

- SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/relay
- Onboard I/O: 8 DI 24 V DC; 6 DO relay 2 A; 2 AI 0-10 V DC
- Power supply: DC 20.4-28.8V DC
- Program/data memory 50 KB
- Flexible Basic Controllers for automation tasks
- Mid to low performance range
- Scaled performance and different input voltages
- Transistor or relay outputs
- Safety versions available
- Expandable inputs and outputs
- Wide variety of signal and communication modules
- Integrated Ethernet interface for connecting HMI devices
- Expandable memory with memory card
- Configured using STEP 7 Basic software in TIA Portal
- Networking options via various communication standards
- Maximum flexibility in topology and network setup
- Compact design for various applications
- Saves space in control cabinet
- Integrated STEP 7 configuration software in TIA Portal
- Lower configuration costs and faster commissioning
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for Data-Highway | false |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SUCONET | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for SERCOS | false |
| Number of relay outputs | 6 |
| Depth | 75 mm |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Memory size | 50 kByte |
| Processing time (1K, binary operation) | 0.085 ms |
| Supporting protocol for LON | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for SafetyBUS p | false |
| Wall mounting/direct mounting | true |
| Type of memory | RAM |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for DeviceNet Safety | false |
| Supply voltage DC | 28.8 V |
| Number of analogue inputs | 2 |
| Rail mounting possible | true |
| Redundancy | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | true |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Radio standard Bluetooth | false |
| Appendant operation agent (Ex ia) | false |
| Number of digital inputs | 8 |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| With display | false |
| Model | Compact |
| Radio standard GSM | false |
| Width | 90 mm |
| Radio standard GPRS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of digital outputs | 6 |
| With optical interface | false |
| Supporting protocol for TCP/IP | true |
| Supply voltage DC | 20.4 V |
| Height | 100 mm |
| Supporting protocol for KNX | false |
| Radio standard UMTS | false |
| Explosion safety category for dust | None |
| Front built-in possible | false |
