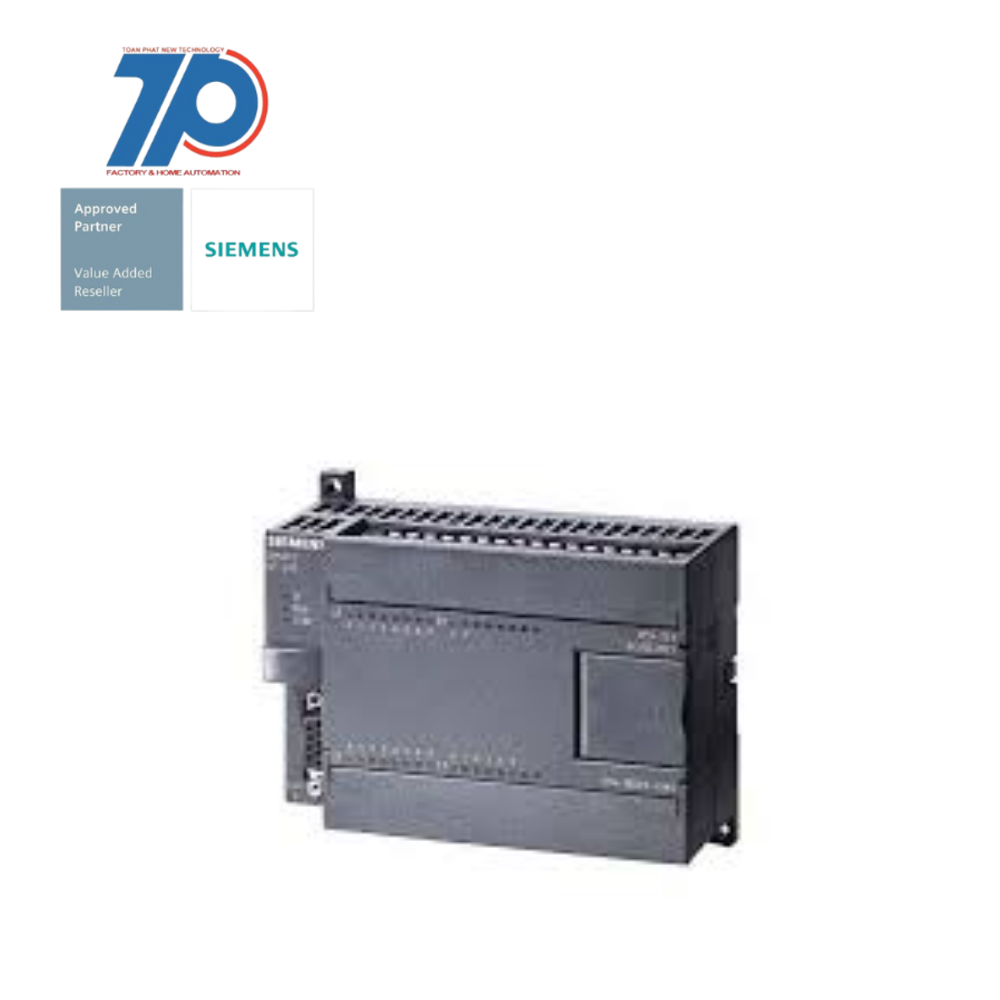

Material ID: 6ES7214-1AD23-0XB0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

    • CPU 224 Compact unit
    • DC power supply
    • 14 DI DC/10 DO DC
    • 8/12 KB progr./8 KB data
    • PROFIBUS DP expandable
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces other0
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for EtherNet/IPfalse
Radio standard GSMfalse
Radio standard WLAN 802.11false
Number of digital inputs14
Number of analogue outputs0
Number of interfaces PROFINET0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for DeviceNetfalse
ModelCompact
Supporting protocol for TCP/IPfalse
Number of analogue inputs0
Number of HW-interfaces parallel0
Supporting protocol for ASIfalse
With optical interfacefalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-4851
Radio standard Bluetoothfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Processing time (1K, binary operation)0.22 ms
Supporting protocol for EtherCATfalse
Number of HW-interfaces wireless0
Supporting protocol for CANfalse
Number of relay outputs0
Number of HW-interfaces RS-4220
Height80 mm
Front built-in possibletrue
Supply voltage DC28.8 V
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Wall mounting/direct mountingtrue
Rail mounting possibletrue
Number of digital outputs10
Supply voltage DC20.4 V
Number of HW-interfaces RS-2320
Width120.5 mm
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Supporting protocol for PROFINET IOfalse
Appendant operation agent (Ex ib)false
With displayfalse
Memory size20 kByte
Radio standard UMTSfalse
Depth62 mm
Supporting protocol for PROFIBUSfalse
IO link masterfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Type of memoryEEPROM
Additional program memory possibletrue
Suitable for safety functionsfalse
Supporting protocol for LONfalse
Redundancyfalse
Appendant operation agent (Ex ia)false
Supporting protocol for KNXfalse
Explosion safety category for dustNone
