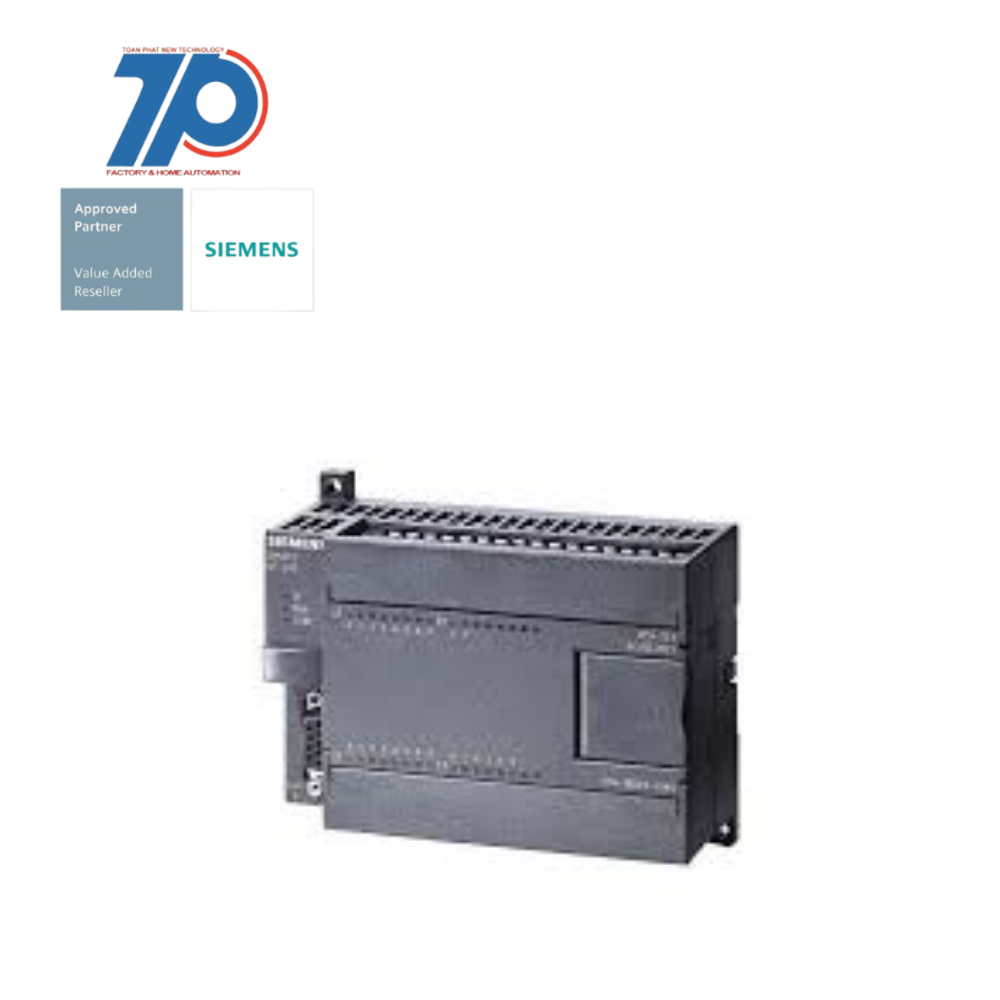

Material ID: 6ES7214-1AD23-0XB8Spare Part - SIMATIC S7-200 CN
Spare Part - SIMATIC S7-200 CN
Technical Features
Commercial Benefits
The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.
- Product: SIMATIC S7-200 CN
- CPU: 224 Compact device
- Power Supply: DC power supply
- Digital Inputs: 14 DI DC
- Digital Outputs: 10 DO DC
- Program Memory: 8/12 KB
- Data Memory: 8 KB
- Expandability: PROFIBUS DP expandable
- Approval: CE approval
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces parallel | 0 |
| Number of analogue inputs | 0 |
| Supply voltage DC | 28.8 V |
| With optical interface | false |
| Number of digital inputs | 14 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Rack-assembly possible | false |
| Width | 120.5 mm |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for EtherCAT | false |
| Height | 80 mm |
| Supporting protocol for Data-Highway | false |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard UMTS | false |
| Front built-in possible | true |
| IO link master | false |
| Number of relay outputs | 0 |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for CAN | false |
| Radio standard GSM | false |
| Number of digital outputs | 10 |
| Number of analogue outputs | 0 |
| Supporting protocol for ASI | false |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for TCP/IP | false |
| Model | Compact |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Type of memory | EEPROM |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for Modbus | false |
| Explosion safety category for dust | None |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Memory size | 20 kByte |
| With display | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for LON | false |
| Wall mounting/direct mounting | true |
| Appendant operation agent (Ex ib) | false |
| Number of HW-interfaces other | 0 |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Number of HW-interfaces RS-232 | 0 |
| Supply voltage DC | 20.4 V |
| Depth | 62 mm |
| Redundancy | false |
| Radio standard Bluetooth | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for AS-Interface Safety at Work | false |
| Rail mounting possible | true |
| Additional program memory possible | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for KNX | false |
| Processing time (1K, binary operation) | 0.22 ms |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | false |
