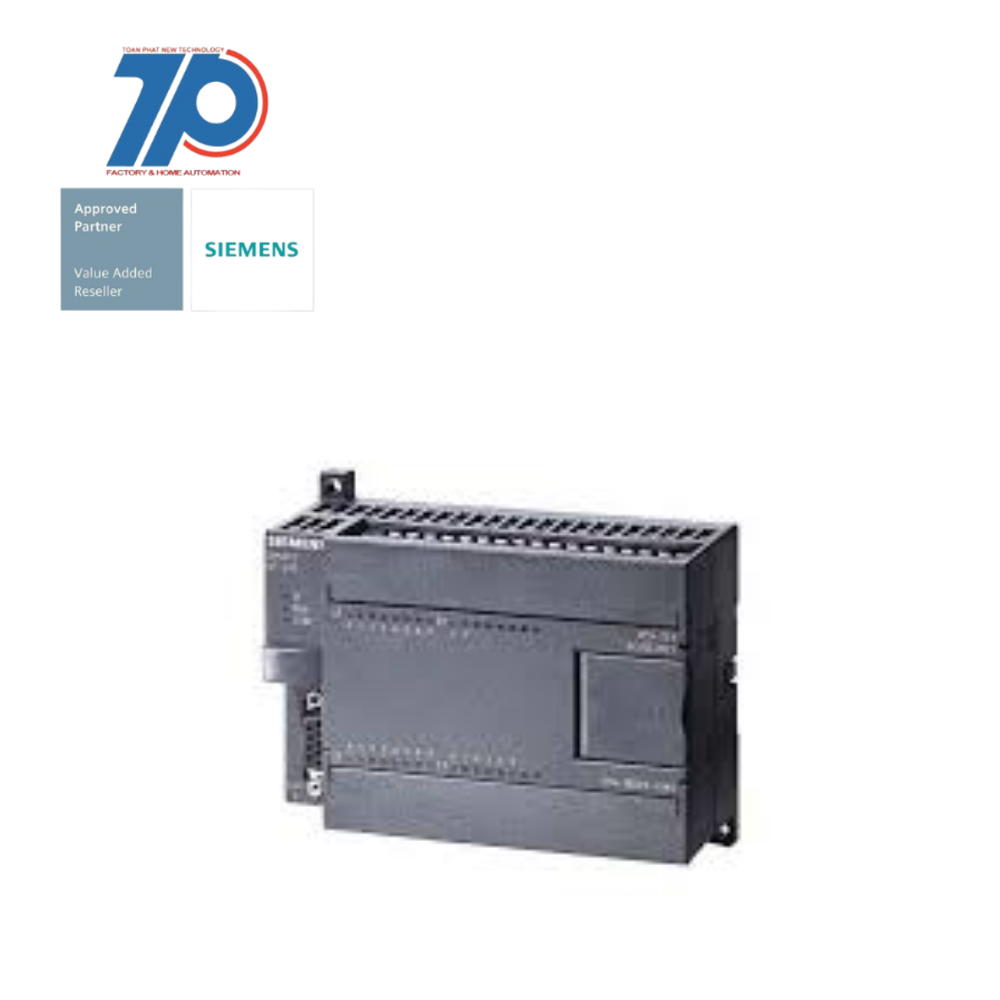

Material ID: 6ES7214-1BD23-0XB0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

    • CPU 224 Compact unit
    • AC power supply
    • 14 DI DC/10 DO relay
    • 8/12 KB progr./8 KB data
    • PROFIBUS DP expandable
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Rack-assembly possiblefalse
With displayfalse
Supply voltage AC 60 Hz264 V
IO link masterfalse
Number of HW-interfaces wireless0
Explosion safety category for dustNone
Supporting protocol for LONfalse
Supporting protocol for EtherNet/IPfalse
ModelCompact
Supporting protocol for CANfalse
Number of analogue inputs0
Radio standard GPRSfalse
Number of HW-interfaces RS-2320
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Additional program memory possibletrue
Number of HW-interfaces other0
Supporting protocol for KNXfalse
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Supply voltage AC 60 Hz85 V
Processing time (1K, binary operation)0.22 ms
Redundancyfalse
Supporting protocol for DeviceNetfalse
Supply voltage AC 50 Hz264 V
Memory size20 kByte
Number of digital outputs10
Rail mounting possibletrue
Supply voltage AC 50 Hz85 V
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4851
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SUCONETfalse
Radio standard Bluetoothfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Supporting protocol for ASIfalse
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
Height80 mm
Number of digital inputs14
Voltage type (supply voltage)AC
Wall mounting/direct mountingtrue
Front built-in possibletrue
Width120.5 mm
Supporting protocol for PROFINET CBAfalse
Suitable for safety functionsfalse
Supporting protocol for Foundation Fieldbusfalse
Number of interfaces PROFINET0
Supporting protocol for PROFIsafefalse
Radio standard UMTSfalse
Type of memoryEEPROM
Number of relay outputs10
Number of analogue outputs0
Appendant operation agent (Ex ia)false
Supporting protocol for EtherCATfalse
Supporting protocol for Modbusfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for DeviceNet Safetyfalse
Appendant operation agent (Ex ib)false
Depth62 mm
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
