Material ID: 6ES7214-1BD23-0XB8Product Description

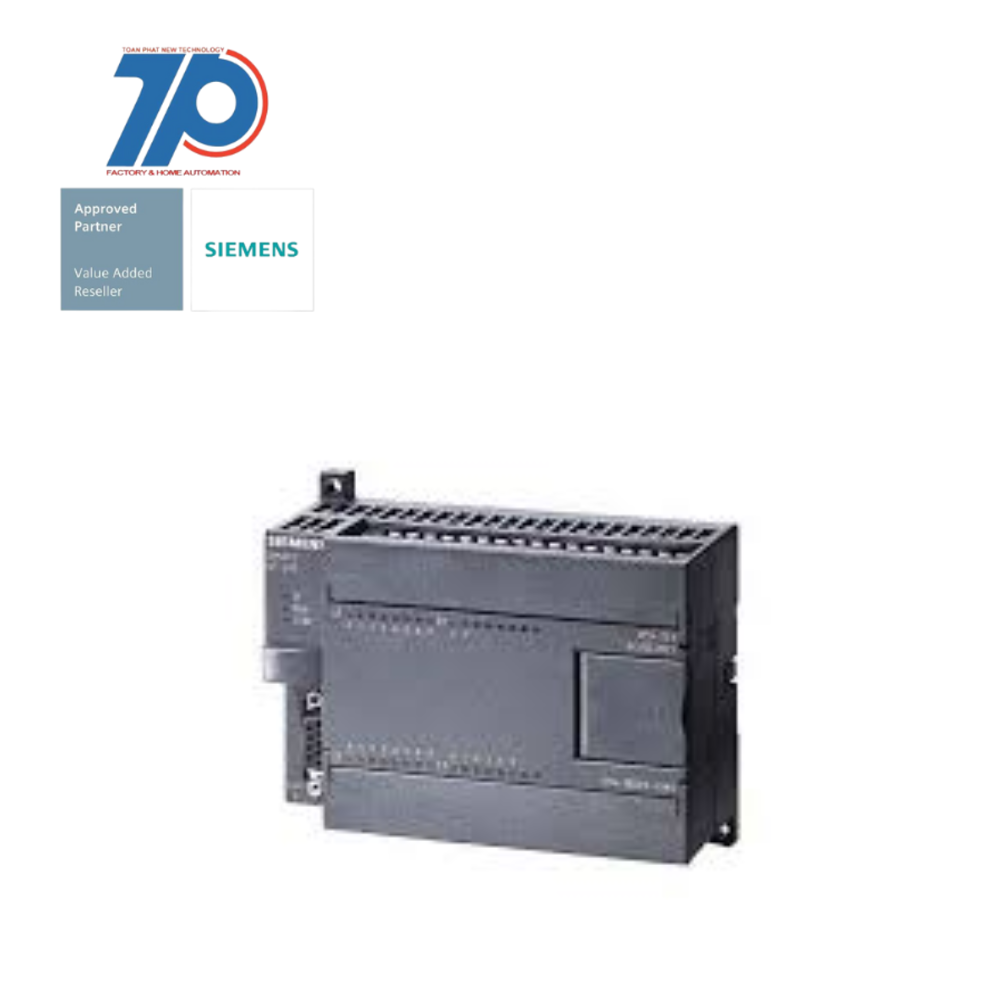

SIMATIC S7-200 CN

Spare Part

The SIMATIC S7-200 CN is a compact device designed for automation tasks. It features an AC power supply and has 14 digital inputs and 10 relay outputs. With a programmable memory of 8/12 KB and 8 KB data storage, it offers maximum automation capabilities at a minimal cost.

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 CN is a versatile micro PLC that can be used for both simple controls and complex automation tasks. Its compact design and cost-effective features make it an ideal choice for various industrial applications.

    • CPU 224 Compact device
    • AC power supply
    • 14 DI DC/10 DO relay
    • 8/12 KB progr./8 KB data
    • PROFIBUS DP expandable
    • CE approval
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSfalse
Memory size20 kByte
Supporting protocol for KNXfalse
Redundancyfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Explosion safety category for dustNone
Type of memoryEEPROM
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Wall mounting/direct mountingtrue
Radio standard Bluetoothfalse
Number of HW-interfaces wireless0
Processing time (1K, binary operation)0.22 ms
Supply voltage AC 60 Hz264 V
ModelCompact
With displayfalse
Appendant operation agent (Ex ia)false
Supply voltage AC 50 Hz264 V
Number of relay outputs10
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Depth62 mm
Supporting protocol for EtherNet/IPfalse
System accessorytrue
Supporting protocol for other bus systemstrue
IO link masterfalse
With optical interfacefalse
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
Supply voltage AC 50 Hz85 V
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces other0
Number of interfaces PROFINET0
Supporting protocol for Modbusfalse
Number of analogue inputs0
Supporting protocol for EtherCATfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for TCP/IPfalse
Width120.5 mm
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs10
Supporting protocol for PROFINET CBAfalse
Supporting protocol for LONfalse
Additional program memory possibletrue
Supply voltage AC 60 Hz85 V
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Rail mounting possibletrue
Radio standard GSMfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Radio standard UMTSfalse
Front built-in possibletrue
Height80 mm
Number of analogue outputs0
Appendant operation agent (Ex ib)false
Suitable for safety functionsfalse
Voltage type (supply voltage)AC
Number of digital inputs14
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
