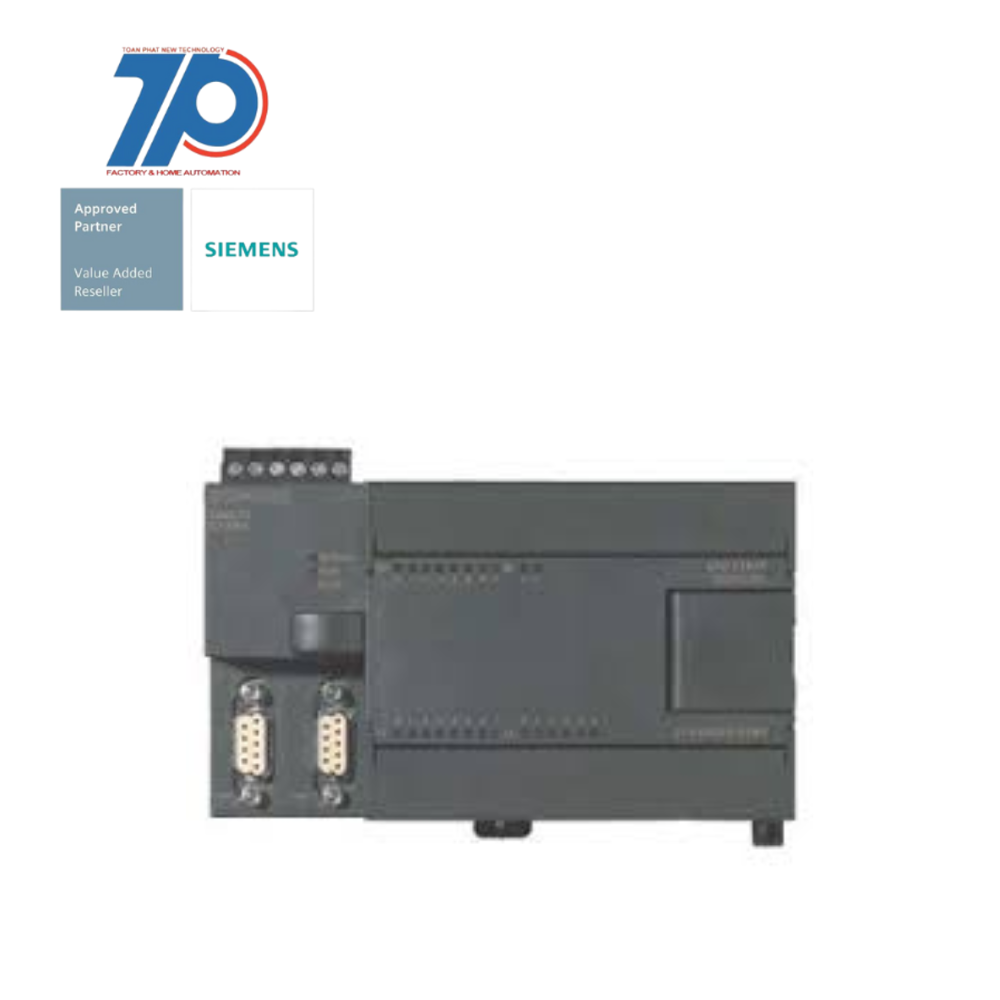

Material ID: 6ES7214-2AD23-0XB0Spare part SIMATIC S7-200
Spare part SIMATIC S7-200
Technical Features
Commercial Benefits
The SIMATIC S7-200 is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks. With its compact design and versatile features, it provides a cost-effective solution for various automation needs.
- CPU 224XP Compact unit: The compact unit of the SIMATIC S7-200 series.
- DC power supply: Provides power to the CPU 224XP.
- 14 DI DC/10 DO DC: 14 digital inputs and 10 digital outputs.
- 2 AI: 2 analog inputs.
- 1 AO: 1 analog output.
- 12/16 KB progr./10 KB data: Memory capacity for program and data storage.
- 2 PPI/user-programmable interface: Interface for communication and user-programmable tasks.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for KNX | false |
| Width | 140 mm |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for SafetyBUS p | false |
| Number of relay outputs | 0 |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for DeviceNet Safety | false |
| Appendant operation agent (Ex ib) | false |
| Redundancy | false |
| Radio standard Bluetooth | false |
| Number of HW-interfaces other | 0 |
| Front built-in possible | true |
| Supply voltage DC | 28.8 V |
| Supporting protocol for Data-Highway | false |
| Type of memory | EEPROM |
| Explosion safety category for dust | None |
| Memory size | 26 kByte |
| IO link master | false |
| Model | Compact |
| Number of analogue outputs | 1 |
| Number of HW-interfaces USB | 0 |
| Number of interfaces PROFINET | 0 |
| Number of digital outputs | 10 |
| Wall mounting/direct mounting | true |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET CBA | false |
| Rack-assembly possible | false |
| With optical interface | false |
| Height | 80 mm |
| Supply voltage DC | 20.4 V |
| Number of HW-interfaces RS-232 | 0 |
| Supporting protocol for PROFIsafe | false |
| Radio standard UMTS | false |
| With display | false |
| Processing time (1K, binary operation) | 0.22 ms |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for Modbus | false |
| Number of HW-interfaces parallel | 0 |
| Depth | 62 mm |
| Additional program memory possible | true |
| Rail mounting possible | true |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Number of HW-interfaces RS-485 | 2 |
| Radio standard GSM | false |
| Number of analogue inputs | 2 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for CAN | false |
| Suitable for safety functions | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces RS-422 | 0 |
| Radio standard GPRS | false |
| Number of digital inputs | 14 |
| Number of HW-interfaces wireless | 0 |
