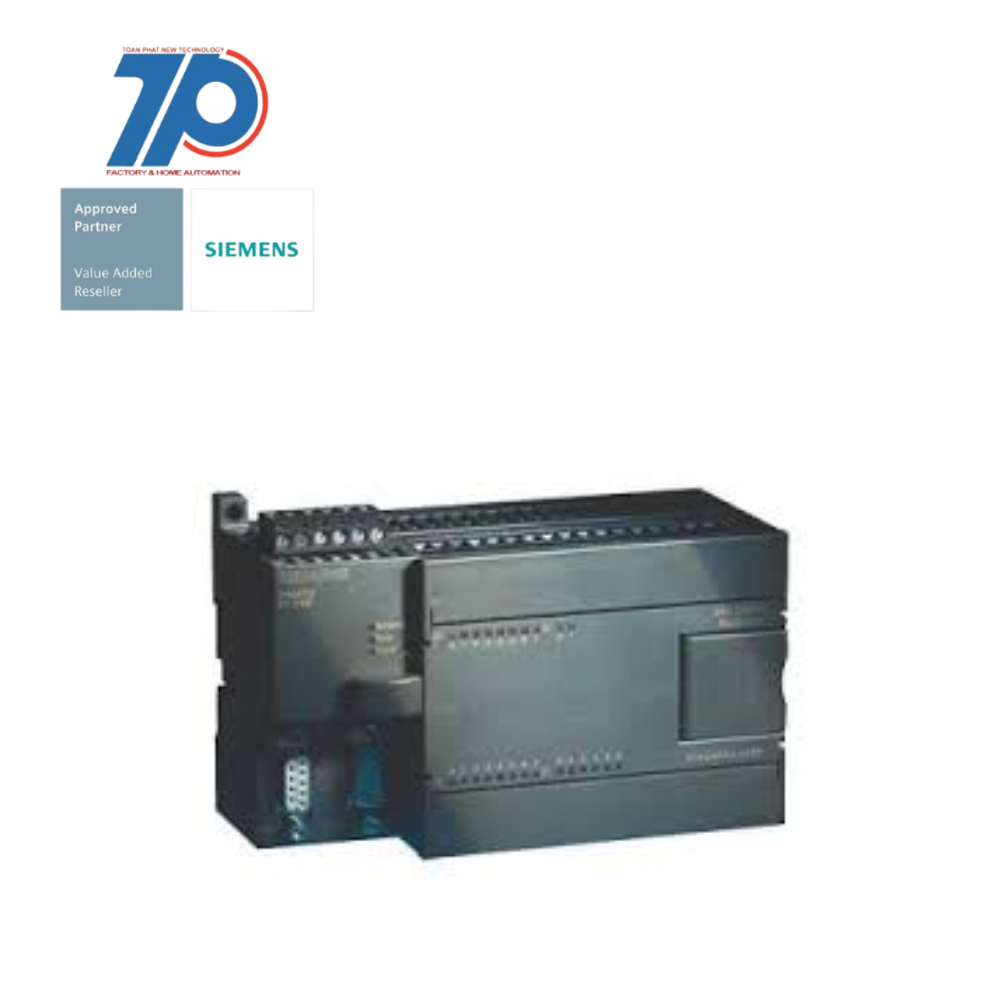

Material ID: 6ES7214-2AD23-0XB8Spare Part - SIMATIC S7-200 CN

Spare Part - SIMATIC S7-200 CN

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

Note: This S7-200 CN product only has CE approval.

    • Product: SIMATIC S7-200 CN
    • CPU: 224XP Compact device
    • Power Supply: DC power supply
    • Digital Inputs: 14 DI DC
    • Digital Outputs: 10 DO DC
    • Analog Inputs: 2 AI
    • Analog Output: 1 AO
    • Program Memory: 12/16 KB progr.
    • Data Memory: 10 KB data
    • Interface: 2 PPI/user-programmable interface
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
System accessorytrue
Supporting protocol for other bus systemstrue
Suitable for safety functionsfalse
Number of digital outputs10
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces other0
Radio standard UMTSfalse
ModelCompact
IO link masterfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for LONfalse
Wall mounting/direct mountingtrue
Number of HW-interfaces RS-4852
Number of HW-interfaces RS-2320
Supply voltage DC20.4 V
Supporting protocol for KNXfalse
Number of HW-interfaces parallel0
Memory size26 kByte
Width140 mm
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for SUCONETfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Supporting protocol for INTERBUSfalse
Height80 mm
Redundancyfalse
Processing time (1K, binary operation)0.22 ms
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for TCP/IPfalse
Type of memoryEEPROM
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces USB0
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for Foundation Fieldbusfalse
With optical interfacefalse
Number of digital inputs14
Additional program memory possibletrue
Radio standard GPRSfalse
Supply voltage DC28.8 V
Depth62 mm
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Rail mounting possibletrue
Radio standard GSMfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Radio standard Bluetoothfalse
Number of HW-interfaces wireless0
Number of analogue outputs1
Supporting protocol for Modbusfalse
Front built-in possibletrue
Supporting protocol for EtherCATfalse
Number of relay outputs0
Number of analogue inputs2
Explosion safety category for dustNone
With displayfalse
