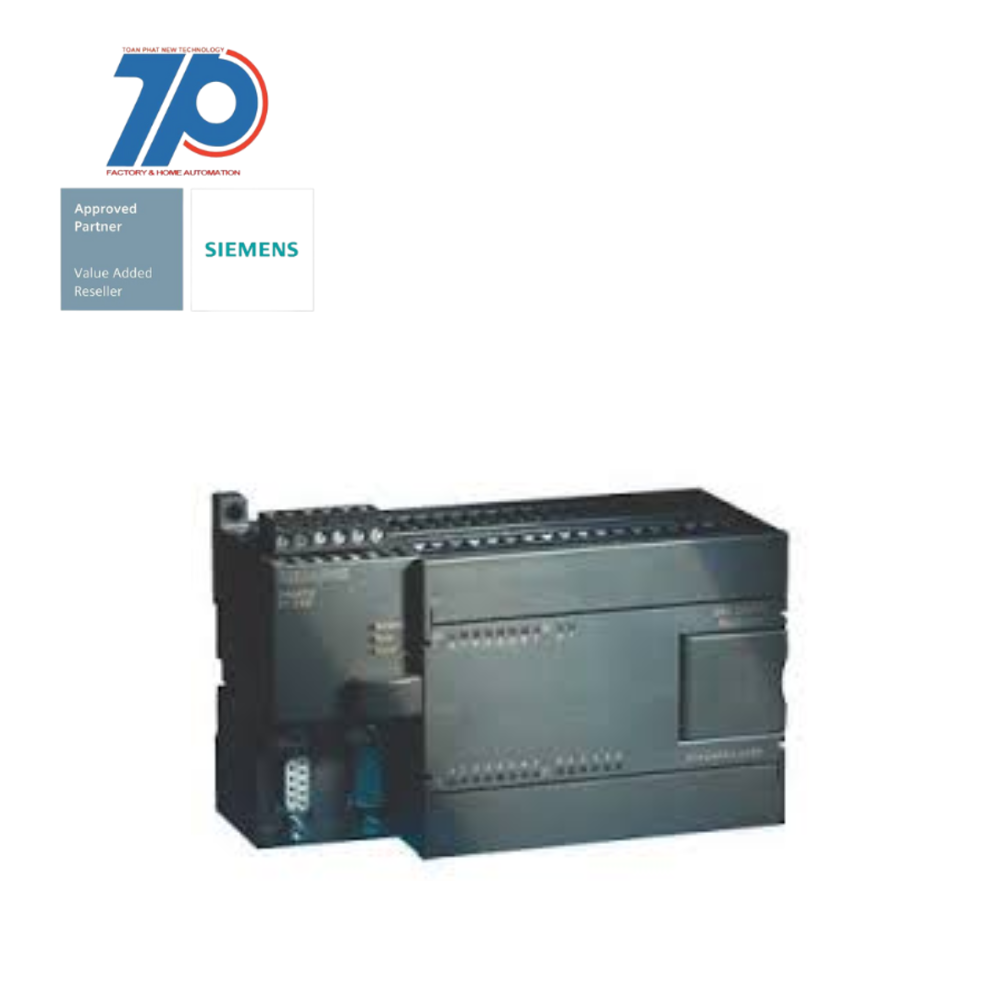

Material ID: 6ES7214-2BD23-0XB0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 is a micro PLC that offers maximum automation at minimum cost. It can be used both for simple controls and for complex automation tasks.

    • CPU 224XP Compact unit
    • AC power supply
    • 14DI DC/10DO relay
    • 2 AI
    • 1 AO
    • 12/16 KB progr./10 KB data
    • 2 PPI/user-programmable interface
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Wall mounting/direct mountingtrue
Width140 mm
Depth62 mm
Rail mounting possibletrue
Supporting protocol for ASIfalse
Supply voltage AC 60 Hz85 V
Processing time (1K, binary operation)0.22 ms
Number of interfaces PROFINET0
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Suitable for safety functionsfalse
Supporting protocol for KNXfalse
Redundancyfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for Modbusfalse
IO link masterfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Number of relay outputs10
Appendant operation agent (Ex ia)false
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces RS-4220
With displayfalse
Front built-in possibletrue
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces parallel0
Number of analogue outputs1
Supply voltage AC 50 Hz264 V
Radio standard GPRSfalse
Radio standard GSMfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for EtherCATfalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Explosion safety category for dustNone
Rack-assembly possiblefalse
ModelCompact
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Number of analogue inputs2
Supply voltage AC 60 Hz264 V
Supporting protocol for CANfalse
Height80 mm
Appendant operation agent (Ex ib)false
With optical interfacefalse
Voltage type (supply voltage)AC
Number of digital outputs10
Supply voltage AC 50 Hz85 V
Type of memoryEEPROM
Additional program memory possibletrue
Number of digital inputs14
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4852
Memory size26 kByte
Supporting protocol for TCP/IPfalse
