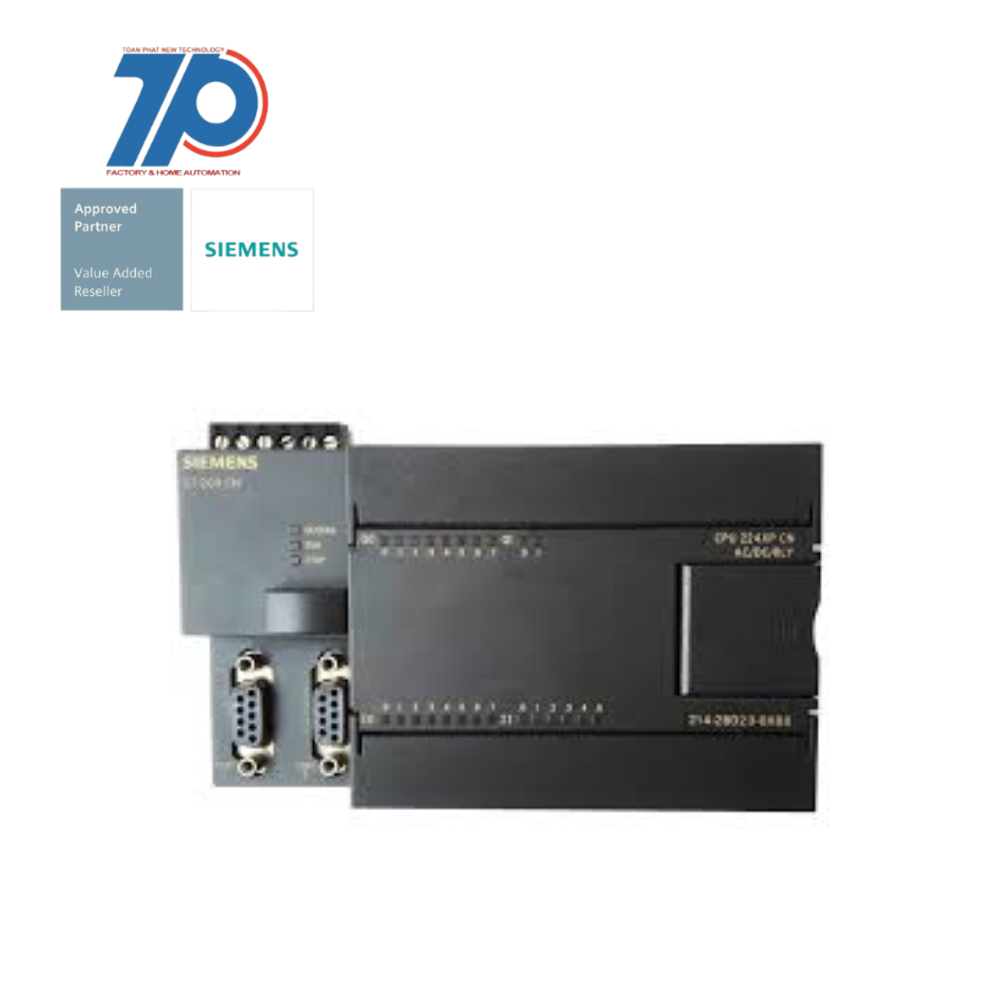

Material ID: 6ES7214-2BD23-0XB8Product Description

Spare Part: SIMATIC S7-200 CN

CPU 224XP Compact device

AC power supply

14DI DC/10DO relay

2 AI, 1 AO

12/16 KB progr./10 KB data

2 PPI/user-programmable interface

This S7-200 CN product only has CE approval.

The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for CANfalse
    System accessorytrue
    Supporting protocol for other bus systemstrue
    Number of digital outputs10
    Appendant operation agent (Ex ib)false
    Appendant operation agent (Ex ia)false
    Number of relay outputs10
    Supporting protocol for EtherCATfalse
    Height80 mm
    Supporting protocol for PROFIBUSfalse
    Supply voltage AC 60 Hz264 V
    Radio standard GSMfalse
    Processing time (1K, binary operation)0.22 ms
    Supporting protocol for PROFINET CBAfalse
    Supply voltage AC 50 Hz85 V
    Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
    Suitable for safety functionsfalse
    Supporting protocol for INTERBUSfalse
    Supply voltage AC 50 Hz264 V
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for Foundation Fieldbusfalse
    Number of digital inputs14
    Radio standard GPRSfalse
    Type of memoryEEPROM
    Supply voltage AC 60 Hz85 V
    Supporting protocol for EtherNet/IPfalse
    Number of HW-interfaces RS-4220
    Rack-assembly possiblefalse
    Rail mounting possibletrue
    Number of analogue inputs2
    Voltage type (supply voltage)AC
    Number of analogue outputs1
    Memory size26 kByte
    Number of HW-interfaces wireless0
    Supporting protocol for Modbusfalse
    Front built-in possibletrue
    IO link masterfalse
    Wall mounting/direct mountingtrue
    Additional program memory possibletrue
    Supporting protocol for SUCONETfalse
    Depth62 mm
    Redundancyfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Number of HW-interfaces parallel0
    Supporting protocol for SERCOSfalse
    Supporting protocol for ASIfalse
    Supporting protocol for KNXfalse
    Width140 mm
    Radio standard UMTSfalse
    Number of HW-interfaces other0
    Supporting protocol for PROFIsafefalse
    Supporting protocol for INTERBUS-Safetyfalse
    Number of interfaces PROFINET0
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for TCP/IPfalse
    Radio standard WLAN 802.11false
    ModelCompact
    With displayfalse
    Number of HW-interfaces RS-4852
    Radio standard Bluetoothfalse
    Number of HW-interfaces RS-2320
    Number of HW-interfaces USB0
    Explosion safety category for dustNone
    With optical interfacefalse
    Supporting protocol for LONfalse
    Supporting protocol for Data-Highwayfalse
