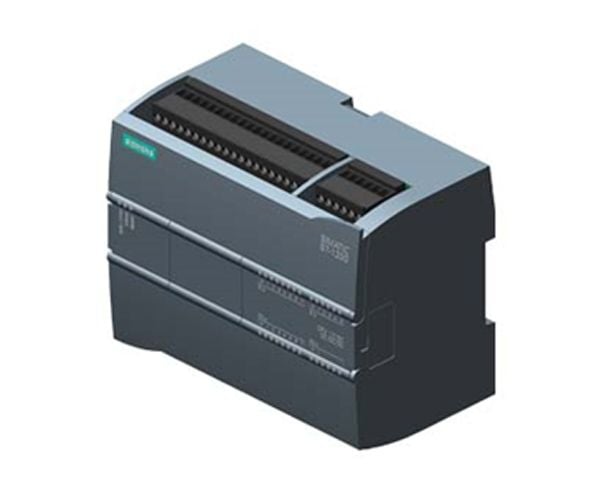

Material ID: 6ES7215-1BG31-0XB0
- SIMATIC S7-1200, CPU 1215C, compact CPU, AC/DC/relay
- 2 PROFINET ports
- Onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC; 2 AO 0-20 mA DC
- Power supply: AC 85-264 V AC at 47-63 Hz
- Program/data memory 100 KB
- Flexible implementation of automation tasks
- Wide variety of communication options
- Scaled performance and available for different input voltages
- Transistor or relay outputs
- Safety versions available
- Expandable with signal and communication modules
- Connectivity to HMI devices via integrated Ethernet interface
- Expandable memory with memory card
- Configured using STEP 7 Basic software in TIA Portal
- Wide range of networking options via various communication standards
- Compact design for versatile applications
- Saves space in control cabinet
- Lower configuration costs and faster commissioning
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Voltage type (supply voltage) | AC |

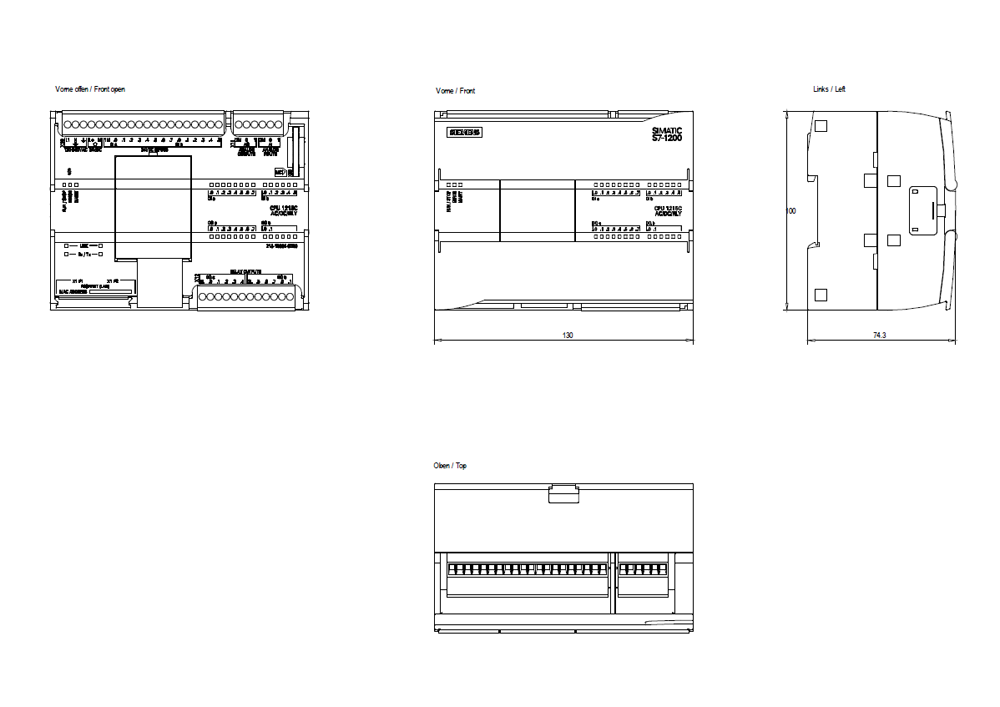

| Width | 130 mm |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for SafetyBUS p | false |
| Model | Compact |
| Supporting protocol for DeviceNet | false |
| Supply voltage AC 60 Hz | 85 V |
| Type of memory | RAM |
| Number of relay outputs | 10 |
| Number of digital inputs | 14 |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for INTERBUS-Safety | false |
| With display | false |
| Supporting protocol for Foundation Fieldbus | false |
| Front built-in possible | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Appendant operation agent (Ex ib) | false |
| Height | 100 mm |
| Supporting protocol for SUCONET | false |
| IO link master | false |
| Processing time (1K, binary operation) | 0.085 ms |
| Radio standard GPRS | false |
| With optical interface | false |
| Number of interfaces PROFINET | 2 |
| Number of analogue inputs | 2 |
| Memory size | 100 kByte |
| Appendant operation agent (Ex ia) | false |
| Wall mounting/direct mounting | true |
| Supporting protocol for PROFIsafe | false |
| Supply voltage AC 60 Hz | 265 V |
| Supporting protocol for Modbus | true |
| Supporting protocol for EtherCAT | false |
| Number of analogue outputs | 2 |
| Supply voltage AC 50 Hz | 85 V |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for ASI | true |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| Suitable for safety functions | false |
| Supporting protocol for CAN | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| Explosion safety category for dust | None |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| Rail mounting possible | true |
| Depth | 75 mm |
| Supporting protocol for PROFINET CBA | false |
| Supply voltage AC 50 Hz | 265 V |
| Radio standard Bluetooth | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for PROFINET IO | true |
| Rack-assembly possible | false |
| Radio standard UMTS | false |
| Redundancy | false |
| Radio standard GSM | false |
| Number of digital outputs | 10 |
