Material ID: 6ES7216-2AD23-0XB8

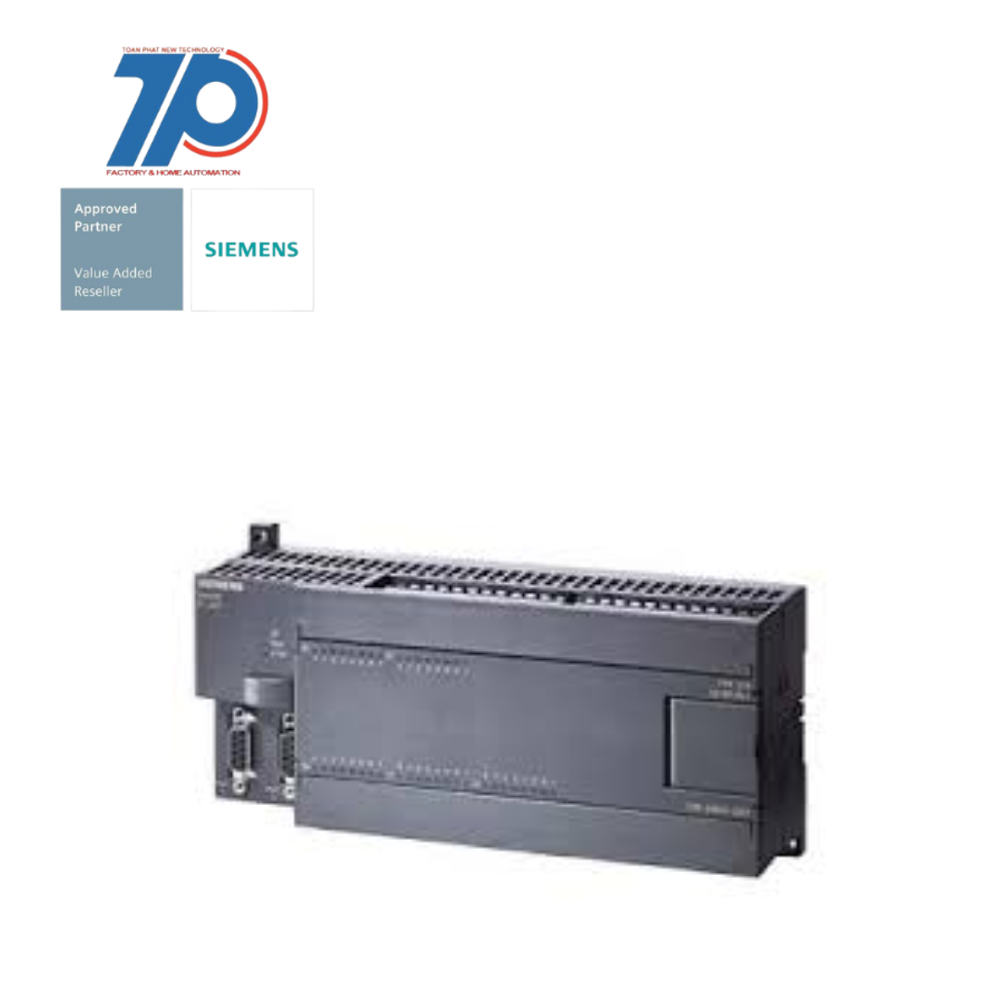

Spare Part: SIMATIC S7-200 CN

This spare part is a SIMATIC S7-200 CN, which is a compact device with a CPU 226. It is powered by a DC power supply and has 24 digital inputs (DI) and 16 digital outputs (DO). The device has a program memory of 16/24 KB and a data memory of 10 KB. It also features 2 PPI/user-programmable interfaces.

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks. With its compact design and powerful features, it provides cost-effective automation solutions for various applications.

    • Compact design
    • CPU 226
    • DC power supply
    • 24 DI DC/16 DO DC
    • 16/24 KB progr./10 KB data
    • 2 PPI/user-programmable interfaces
    • CE approval
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for EtherCATfalse
Supporting protocol for INTERBUSfalse
Additional program memory possibletrue
Supporting protocol for LONfalse
Radio standard GSMfalse
Supporting protocol for Modbusfalse
Supporting protocol for DeviceNetfalse
Appendant operation agent (Ex ib)false
Number of interfaces PROFINET0
Number of HW-interfaces wireless0
Rail mounting possibletrue
Number of HW-interfaces RS-2320
Number of digital inputs24
Front built-in possibletrue
With optical interfacefalse
Supporting protocol for Foundation Fieldbusfalse
Appendant operation agent (Ex ia)false
Redundancyfalse
Memory size34 kByte
Supporting protocol for EtherNet/IPfalse
Supporting protocol for SafetyBUS pfalse
Type of memoryEEPROM
Radio standard Bluetoothfalse
Depth62 mm
Supply voltage DC28.8 V
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
IO link masterfalse
Supporting protocol for other bus systemstrue
System accessorytrue
Processing time (1K, binary operation)0.22 ms
Wall mounting/direct mountingtrue
With displayfalse
ModelCompact
Radio standard WLAN 802.11false
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Supporting protocol for SERCOSfalse
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Supporting protocol for PROFIBUSfalse
Height80 mm
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Radio standard UMTSfalse
Explosion safety category for dustNone
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET CBAfalse
Number of digital outputs16
Number of HW-interfaces RS-4852
Number of HW-interfaces USB0
Number of analogue outputs0
Supporting protocol for Data-Highwayfalse
Number of relay outputs0
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Supply voltage DC20.4 V
Suitable for safety functionsfalse
Number of HW-interfaces other0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for TCP/IPfalse
Width196 mm
Number of analogue inputs0
Supporting protocol for DeviceNet Safetyfalse
