Material ID: 6ES7216-2BD23-0XB8SIMATIC S7-200 CN

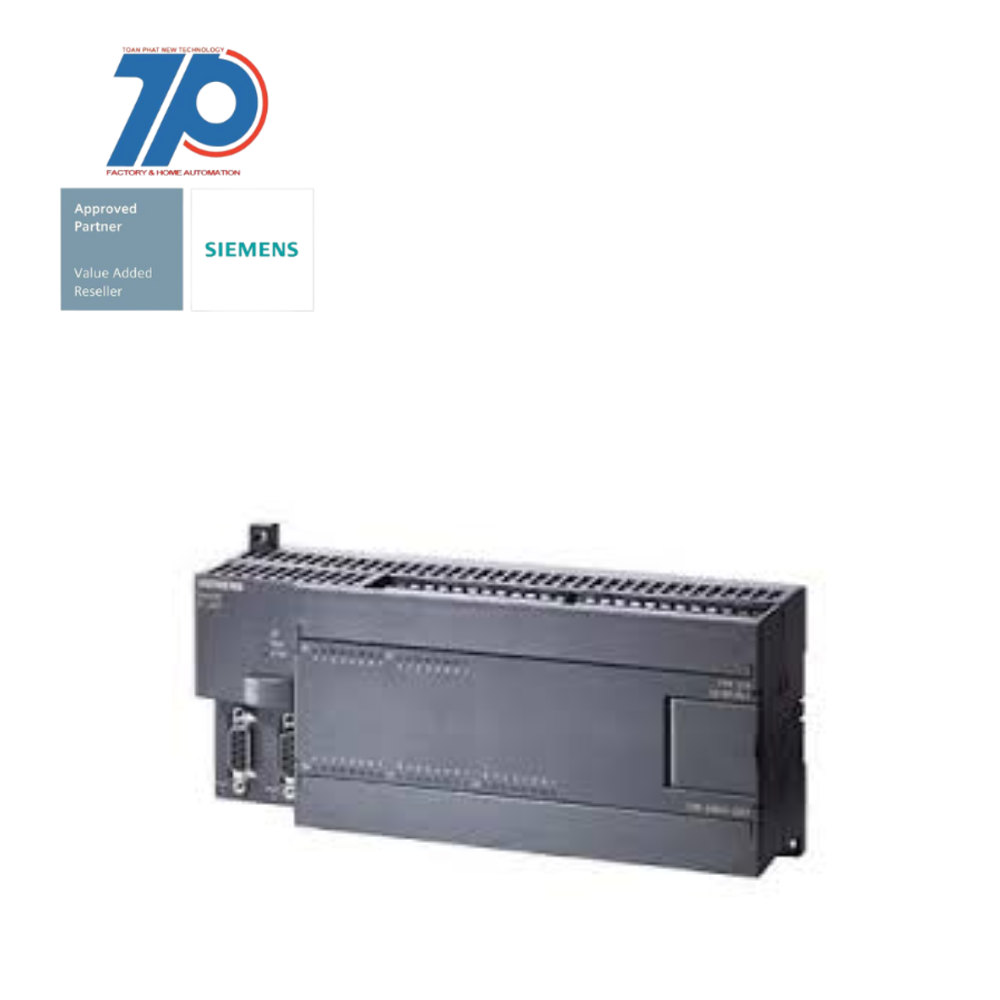

SIMATIC S7-200 CN

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 CN is a micro PLC that offers maximum automation at minimum cost. It can be used for both simple controls and complex automation tasks.

    • Spare part: SIMATIC S7-200 CN
    • CPU: 226 Compact device
    • Power supply: AC
    • Digital Inputs: 24 DI
    • Digital Outputs: 16 DO relay
    • Program Memory: 16/24 KB
    • Data Memory: 10 KB
    • Interfaces: 2 PPI/user-programmable interface
    • Approval: CE
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for DeviceNet Safetyfalse
Voltage type (supply voltage)AC
Supporting protocol for Foundation Fieldbusfalse
Rail mounting possibletrue
Supporting protocol for ASIfalse
Number of relay outputs16
Supporting protocol for PROFIsafefalse
Number of HW-interfaces wireless0
ModelCompact
Supporting protocol for TCP/IPfalse
Number of HW-interfaces other0
Additional program memory possibletrue
Appendant operation agent (Ex ib)false
Supporting protocol for INTERBUS-Safetyfalse
Height80 mm
Supporting protocol for EtherCATfalse
Width196 mm
Radio standard GSMfalse
Number of digital outputs16
Number of HW-interfaces RS-4852
Number of analogue outputs0
Supporting protocol for CANfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Front built-in possibletrue
Supporting protocol for PROFINET IOfalse
Suitable for safety functionsfalse
Supporting protocol for Data-Highwayfalse
Number of analogue inputs0
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Number of interfaces PROFINET0
Redundancyfalse
Supply voltage AC 50 Hz85 V
Supporting protocol for PROFINET CBAfalse
Number of digital inputs24
Supporting protocol for INTERBUSfalse
Wall mounting/direct mountingtrue
Supporting protocol for LONfalse
Depth62 mm
Memory size34 kByte
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Radio standard Bluetoothfalse
With displayfalse
Radio standard WLAN 802.11false
Supporting protocol for other bus systemstrue
System accessorytrue
Explosion safety category for dustNone
IO link masterfalse
Radio standard UMTSfalse
Supply voltage AC 50 Hz264 V
With optical interfacefalse
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Processing time (1K, binary operation)0.22 ms
Supporting protocol for KNXfalse
Supply voltage AC 60 Hz264 V
Supporting protocol for SERCOSfalse
Supply voltage AC 60 Hz85 V
Type of memoryEEPROM
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Radio standard GPRSfalse
Supporting protocol for Modbusfalse
