Material ID: 6ES7222-1HF22-0XA8
Spare Part: SIMATIC S7-200 CN

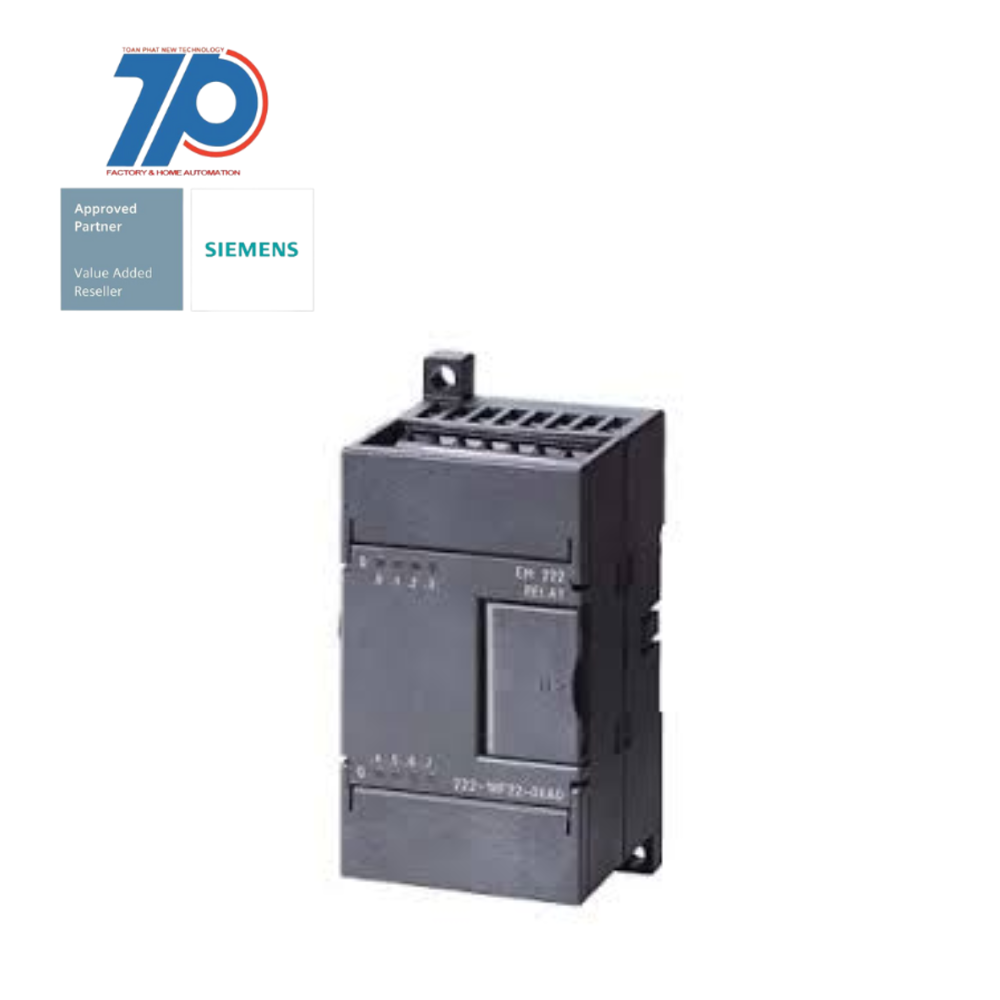

This spare part is designed specifically for the S7-22X CPU and is known as the SIMATIC S7-200 CN. It is a digital output module with the model number EM 222.
The SIMATIC S7-200 CN features 8 relay outputs, each capable of handling a current of up to 2 A. This allows for flexible adaptation of the control system.
This product has CE approval, ensuring its compliance with European safety standards.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Output current | 2 A |
| Number of digital outputs | 8 |
| Appendant operation agent (Ex ia) | false |
| Redundancy | true |
| Suitable for safety functions | false |
| Width | 45 mm |
| Permitted voltage at output | 250 V |
| Depth | 62 mm |
| Supply voltage DC | 28.8 V |
| Short-circuit protection, outputs available | false |
| Supply voltage AC 60 Hz | 5 V |
| Number of digital inputs | 0 |
| Permitted voltage at output | 5 V |
| Type of electric connection | Screw connection |
| Supply voltage AC 50 Hz | 250 V |
| Appendant operation agent (Ex ib) | false |
| Voltage type (supply voltage) | AC/DC |
| Supply voltage AC 60 Hz | 250 V |
| Supply voltage AC 50 Hz | 5 V |
| Digital outputs configurable | true |
| Supply voltage DC | 20.4 V |
| Time delay at signal change | 10 ms |
| Height | 80 mm |
| Type of digital output | Relay |
| Type of output voltage | AC/DC |
