Material ID: 6ES7223-1BL22-0XA8SIMATIC S7-200 CN - Digital I/O EM 223

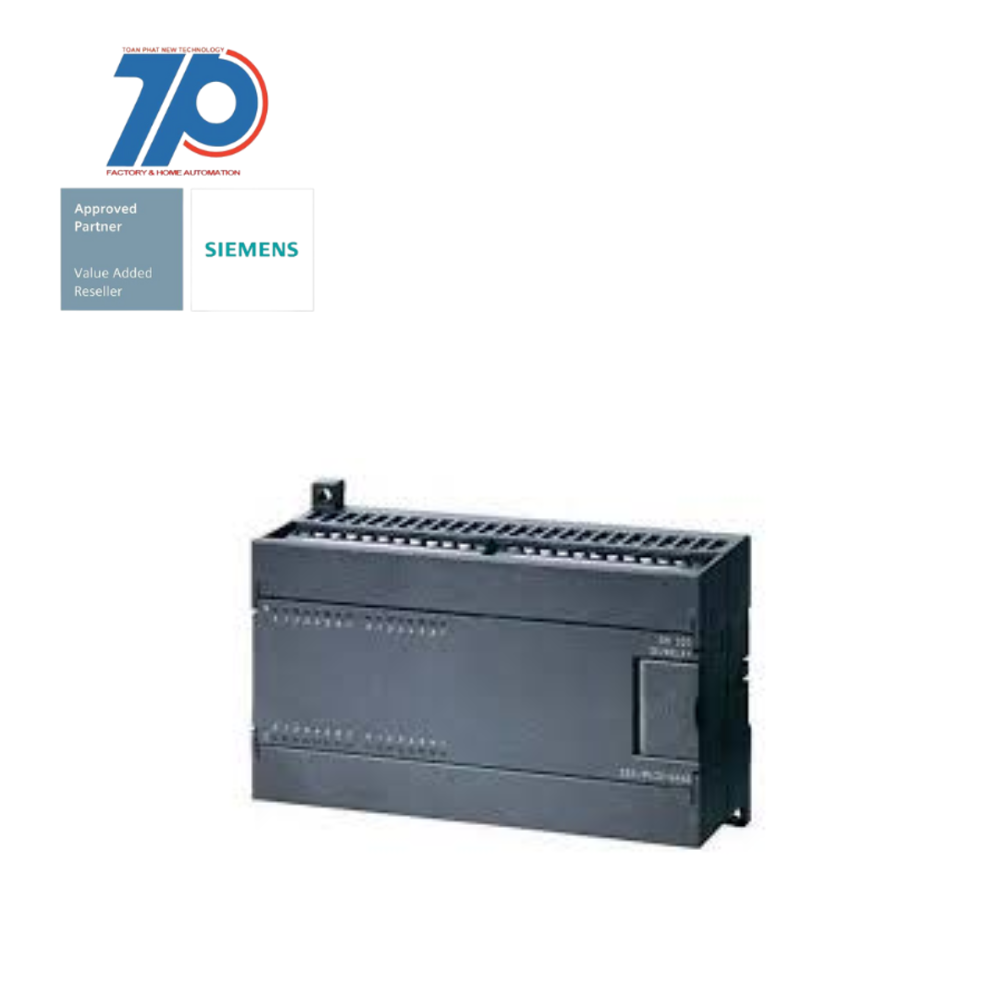

SIMATIC S7-200 CN - Digital I/O EM 223

Technical Features

Commercial Benefits

This product, the SIMATIC S7-200 CN, is a spare part designed specifically for the S7-22X CPU. It features 16 digital inputs (DI) and 16 digital outputs (DO), both operating at 24 V DC. The digital inputs support sink/source functionality, providing flexibility for the control system. With a current rating of 0.75 A per channel, this product ensures reliable performance. Additionally, it has obtained CE approval, meeting the necessary standards for quality and safety.

    • Spare Part: SIMATIC S7-200 CN
    • Compatibility: Only for S7-22X CPU
    • Digital Inputs: 16 DI 24 V DC, sink/source
    • Digital Outputs: 16 DO 24 V DC
    • Current: 0.75 A/channel
    • Approval: CE
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Depth62 mm
Type of output voltageDC
Permitted voltage at output0 V
Suitable for safety functionsfalse
Voltage type (supply voltage)DC
Explosion safety category for dustNone
Output current0.75 A
Permitted voltage at input0 V
Appendant operation agent (Ex ib)false
Permitted voltage at input30 V
Type of electric connectionScrew connection
Time delay at signal change3 ms
Permitted voltage at output28.8 V
Supply voltage DC28.8 V
Supply voltage DC20.4 V
Appendant operation agent (Ex ia)false
Width137.5 mm
Input current at signal 14 mA
Type of voltage (input voltage)DC
Height80 mm
Digital outputs configurabletrue
Type of digital outputTransistor
Number of digital inputs16
Number of digital outputs16
Short-circuit protection, outputs availablefalse
Time delay at signal change4.5 ms
Redundancytrue
Digital inputs configurabletrue
