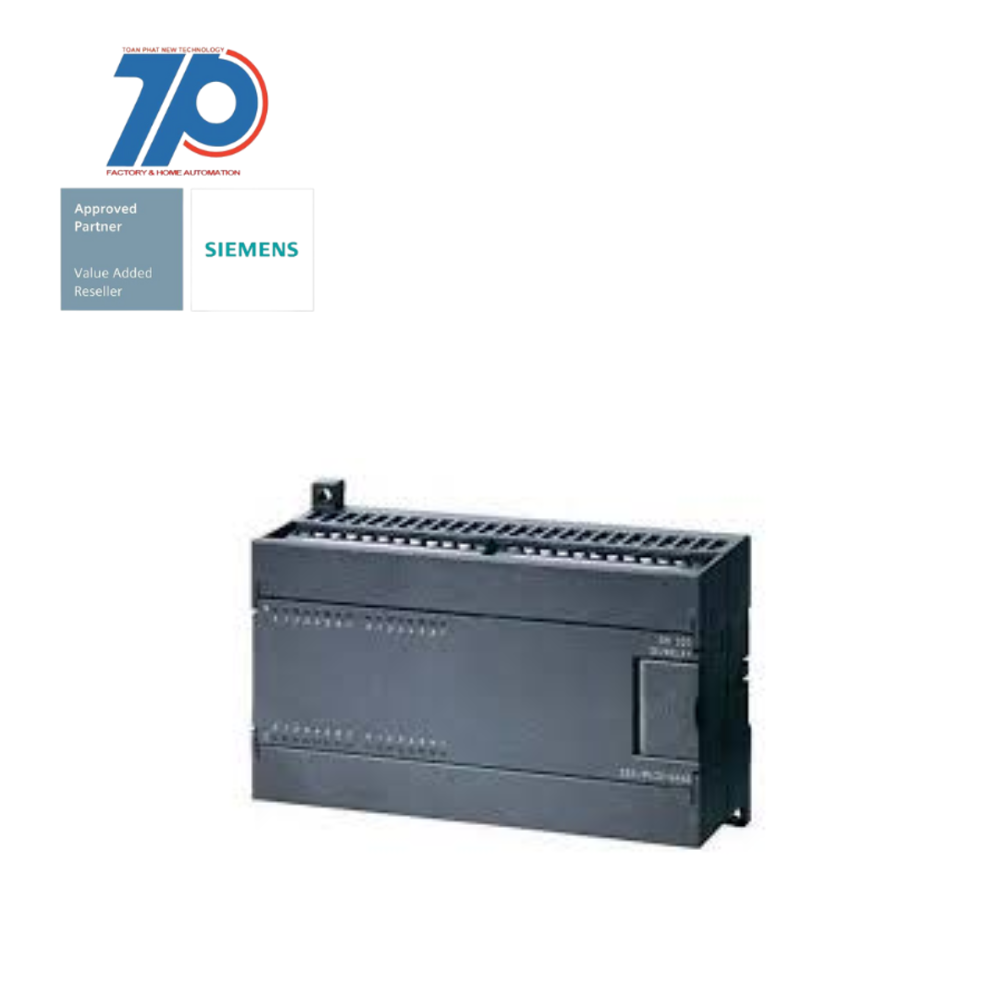

Material ID: 6ES7223-1BM22-0XA0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features

Commercial Benefits

The SIMATIC S7-200 Spare part, Digital I/O EM 223, is a supplement to the integral I/O of the CPUs, providing flexible adaptation of the control system.

    • Product: SIMATIC S7-200
    • Part: Digital I/O EM 223
    • Compatibility: Only for S7-22X CPU
    • Input: 32DI 24 V DC, Sink/Source
    • Output: 32DO 24 V DC
    • Current: 0.75 A/channel
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Time delay at signal change4.5 ms
Input current at signal 14 mA
Output current0.75 A
Number of digital inputs32
Supply voltage DC20.4 V
Explosion safety category for dustNone
Redundancytrue
Number of digital outputs32
Permitted voltage at output28.8 V
Time delay at signal change3 ms
Digital inputs configurabletrue
Type of output voltageDC
Voltage type (supply voltage)DC
Type of digital outputTransistor
Permitted voltage at input0 V
Appendant operation agent (Ex ib)false
Digital outputs configurabletrue
Supply voltage DC28.8 V
Type of electric connectionScrew connection
Depth62 mm
Width196 mm
Permitted voltage at output0 V
Short-circuit protection, outputs availablefalse
Type of voltage (input voltage)DC
Permitted voltage at input30 V
Suitable for safety functionsfalse
Appendant operation agent (Ex ia)false
Height80 mm
