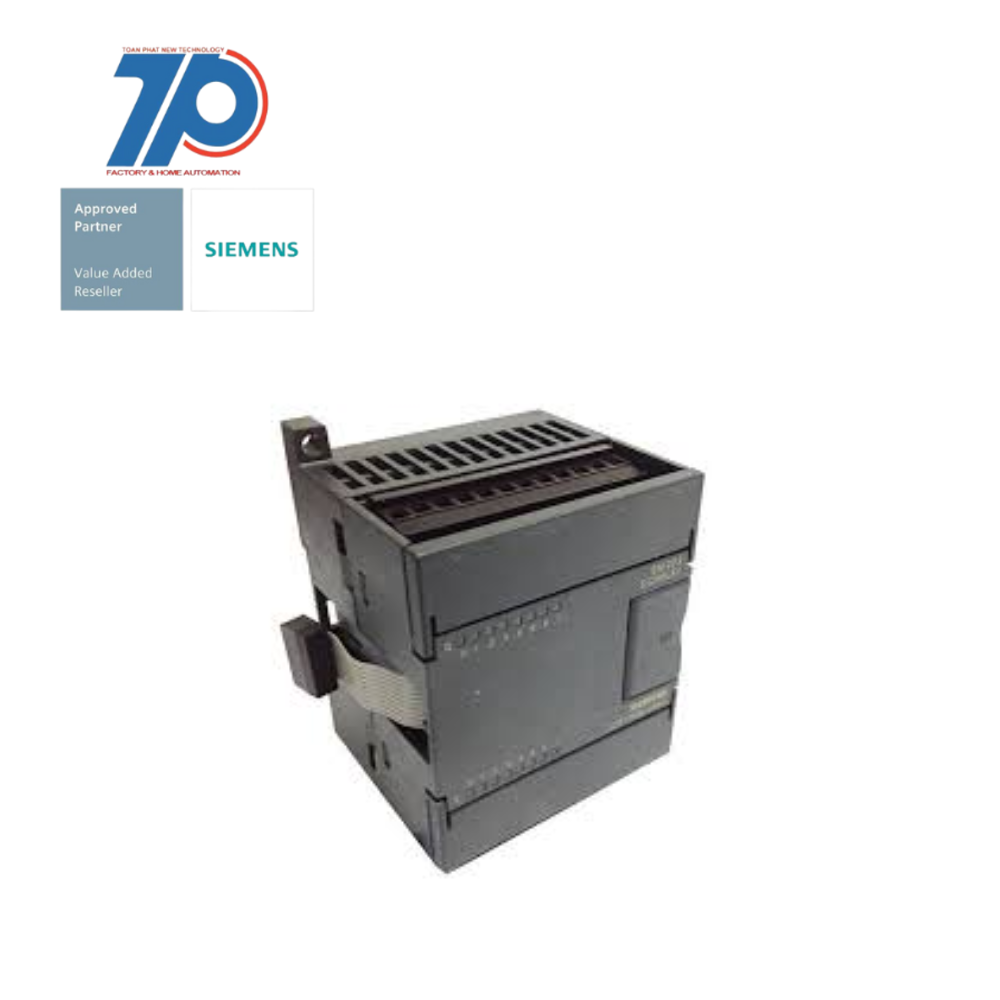

Material ID: 6ES7223-1PH22-0XA0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features:

Commercial Benefits:

Supplement to the integral I/O of the CPUs for flexible adaptation of the control system.

    • Product: SIMATIC S7-200
    • Type: Digital I/O EM 223
    • Compatibility: Only for S7-22X CPU
    • Input: 8 DI 24 V DC, Sink/Source
    • Output: 8 DO relay
    • Current: 2 A/channel
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Short-circuit protection, outputs availablefalse
Supply voltage AC 50 Hz250 V
Width71.2 mm
Type of output voltageAC/DC
Time delay at signal change4.5 ms
Type of electric connectionScrew connection
Supply voltage DC5 V
Input current at signal 14 mA
Appendant operation agent (Ex ia)false
Digital inputs configurabletrue
Type of digital outputRelay
Explosion safety category for dustNone
Depth62 mm
Digital outputs configurabletrue
Supply voltage DC30 V
Permitted voltage at output250 V
Appendant operation agent (Ex ib)false
Redundancytrue
Permitted voltage at input30 V
Suitable for safety functionsfalse
Number of digital inputs8
Supply voltage AC 60 Hz5 V
Supply voltage AC 50 Hz5 V
Voltage type (supply voltage)AC/DC
Type of voltage (input voltage)DC
Height80 mm
Number of digital outputs8
Permitted voltage at output5 V
Permitted voltage at input0 V
Time delay at signal change3 ms
Supply voltage AC 60 Hz250 V
Output current2 A
