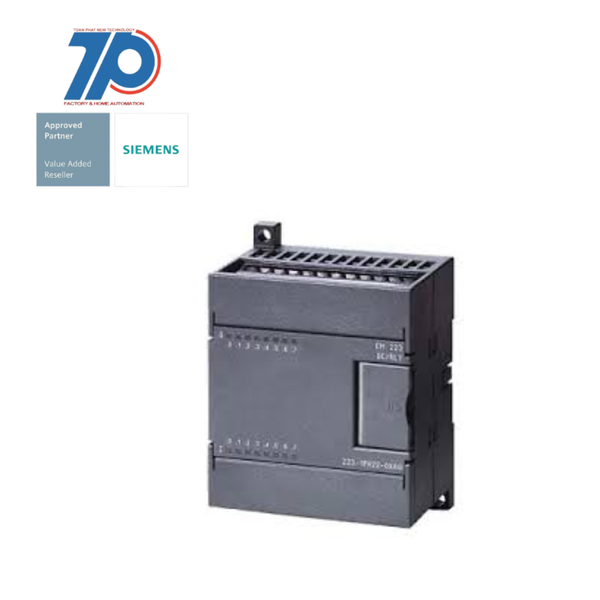

Material ID: 6ES7223-1PH22-0XA8

Spare Part: SIMATIC S7-200 CN, Digital I/O EM 223

This spare part is designed specifically for use with the S7-22X CPU. It is a digital input/output module that provides flexible adaptation of the control system.

Technical Features:

Commercial Benefits:

By using the SIMATIC S7-200 CN Digital I/O EM 223, you can enhance the functionality of your S7-22X CPU. Its flexible adaptation capabilities allow you to customize your control system to meet specific requirements. With 8 digital inputs and 8 relay outputs, this spare part provides reliable and efficient control for your applications.

    • 8 DI 24 V DC: This module has 8 digital inputs that operate at 24 V DC.
    • Sink/Source: The digital inputs can be configured as either sink or source.
    • 8 DO Relay: It also features 8 digital outputs with relay technology.
    • 2 A/channel: Each output channel can handle a maximum current of 2 A.
    • CE Approval: This S7-200 CN product has CE approval, ensuring compliance with European safety standards.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Permitted voltage at output250 V
Height80 mm
Digital inputs configurabletrue
Supply voltage DC30 V
Appendant operation agent (Ex ia)false
Explosion safety category for dustNone
Input current at signal 14 mA
Redundancytrue
Digital outputs configurabletrue
Permitted voltage at input0 V
Time delay at signal change4.5 ms
Appendant operation agent (Ex ib)false
Permitted voltage at output5 V
Type of digital outputRelay
Supply voltage DC5 V
Type of electric connectionScrew connection
Depth62 mm
Width71.2 mm
Supply voltage AC 50 Hz250 V
Number of digital outputs8
Supply voltage AC 60 Hz5 V
Supply voltage AC 50 Hz5 V
Output current2 A
Short-circuit protection, outputs availablefalse
Voltage type (supply voltage)AC/DC
Time delay at signal change3 ms
Type of voltage (input voltage)DC
Type of output voltageAC/DC
Suitable for safety functionsfalse
Permitted voltage at input30 V
Supply voltage AC 60 Hz250 V
Number of digital inputs8
