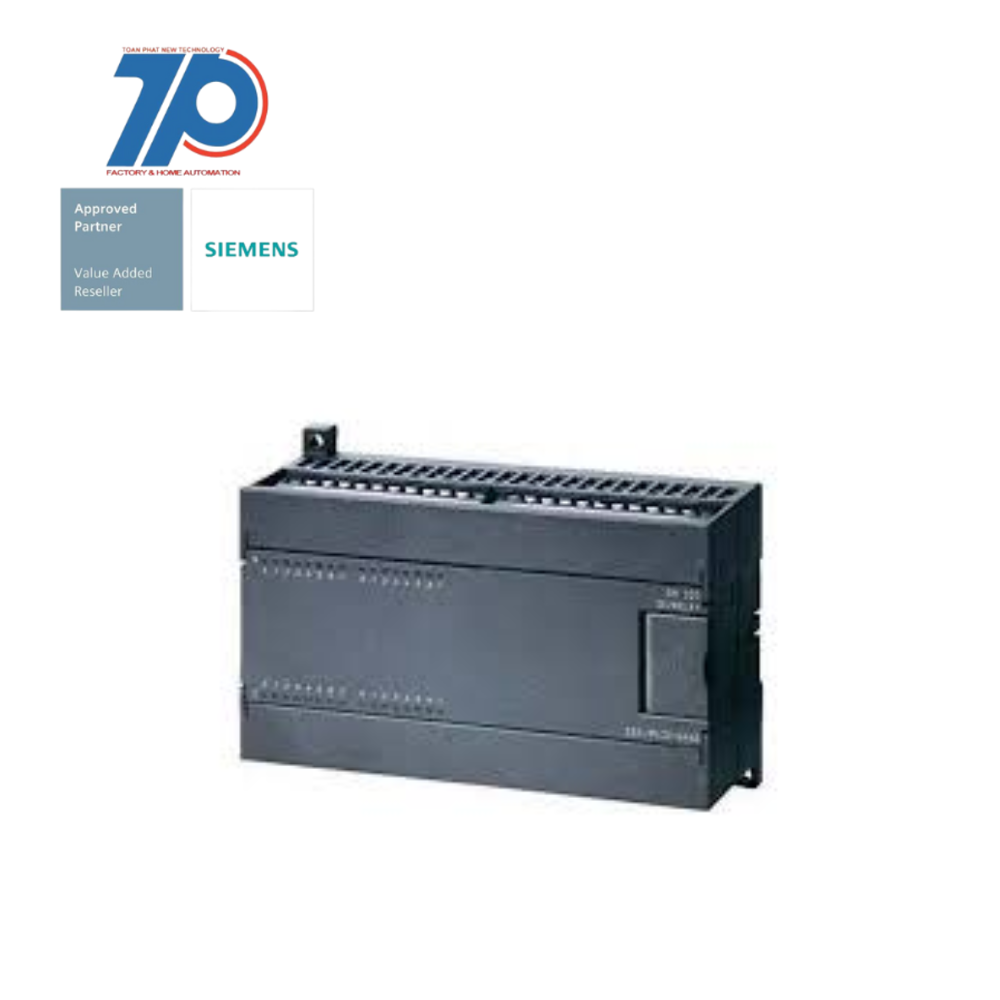

Material ID: 6ES7223-1PL22-0XA0Spare part SIMATIC S7-200

Spare part SIMATIC S7-200

Technical Features

Commercial Benefits

Supplement to the integral I/O of the CPUs for flexible adaptation of the control system.

    • Product: SIMATIC S7-200
    • Type: Digital I/O EM 223
    • Compatibility: Only for S7-22X CPU
    • Input: 16 DI 24 V DC, Sink/Source
    • Output: 16 DO relay
    • Current: 2 A/channel
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Depth62 mm
Explosion safety category for dustNone
Supply voltage AC 50 Hz250 V
Redundancytrue
Height80 mm
Permitted voltage at input30 V
Supply voltage DC5 V
Time delay at signal change4.5 ms
Type of voltage (input voltage)DC
Width137.5 mm
Type of electric connectionScrew connection
Permitted voltage at output250 V
Time delay at signal change3 ms
Short-circuit protection, outputs availablefalse
Suitable for safety functionsfalse
Permitted voltage at input0 V
Number of digital outputs16
Appendant operation agent (Ex ia)false
Supply voltage DC30 V
Number of digital inputs16
Permitted voltage at output5 V
Digital outputs configurabletrue
Voltage type (supply voltage)AC/DC
Input current at signal 14 mA
Type of output voltageAC/DC
Appendant operation agent (Ex ib)false
Supply voltage AC 50 Hz5 V
Supply voltage AC 60 Hz250 V
Supply voltage AC 60 Hz5 V
Type of digital outputRelay
Digital inputs configurabletrue
Output current2 A
