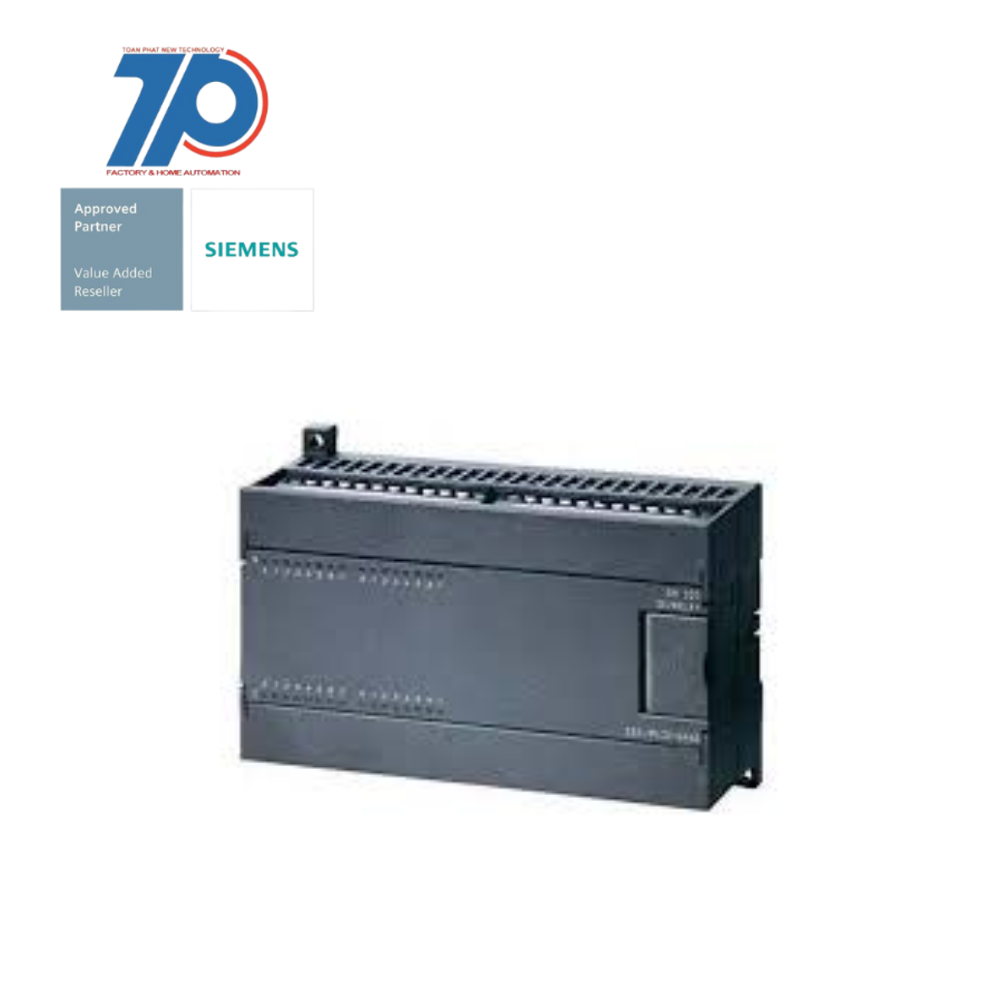

Material ID: 6ES7223-1PL22-0XA8Spare Part - SIMATIC S7-200 CN

Spare Part - SIMATIC S7-200 CN

Technical Features:

Commercial Benefits:

This spare part serves as a supplement to the integral I/O of the CPUs, allowing for flexible adaptation of the control system.

    • SIMATIC S7-200 CN: This spare part is specifically designed for the S7-22X CPU.
    • Digital I/O EM 223: Provides 16 digital inputs (DI) with a voltage rating of 24 V DC. Supports sink/source configuration.
    • 16 DO Relay: Offers 16 digital outputs (DO) with relay configuration. Each channel can handle up to 2 A.
    • CE Approval: This S7-200 CN product has obtained CE approval.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Type of voltage (input voltage)DC
Appendant operation agent (Ex ia)false
Type of output voltageAC/DC
Supply voltage DC30 V
Appendant operation agent (Ex ib)false
Supply voltage DC5 V
Permitted voltage at input0 V
Permitted voltage at output250 V
Short-circuit protection, outputs availablefalse
Voltage type (supply voltage)AC/DC
Width137.5 mm
Permitted voltage at input30 V
Supply voltage AC 60 Hz5 V
Redundancytrue
Suitable for safety functionsfalse
Time delay at signal change3 ms
Time delay at signal change4.5 ms
Digital inputs configurabletrue
Supply voltage AC 60 Hz250 V
Depth62 mm
Type of digital outputRelay
Supply voltage AC 50 Hz250 V
Number of digital inputs16
Number of digital outputs16
Explosion safety category for dustNone
Supply voltage AC 50 Hz5 V
Type of electric connectionScrew connection
Height80 mm
Input current at signal 14 mA
Digital outputs configurabletrue
Permitted voltage at output5 V
Output current2 A
