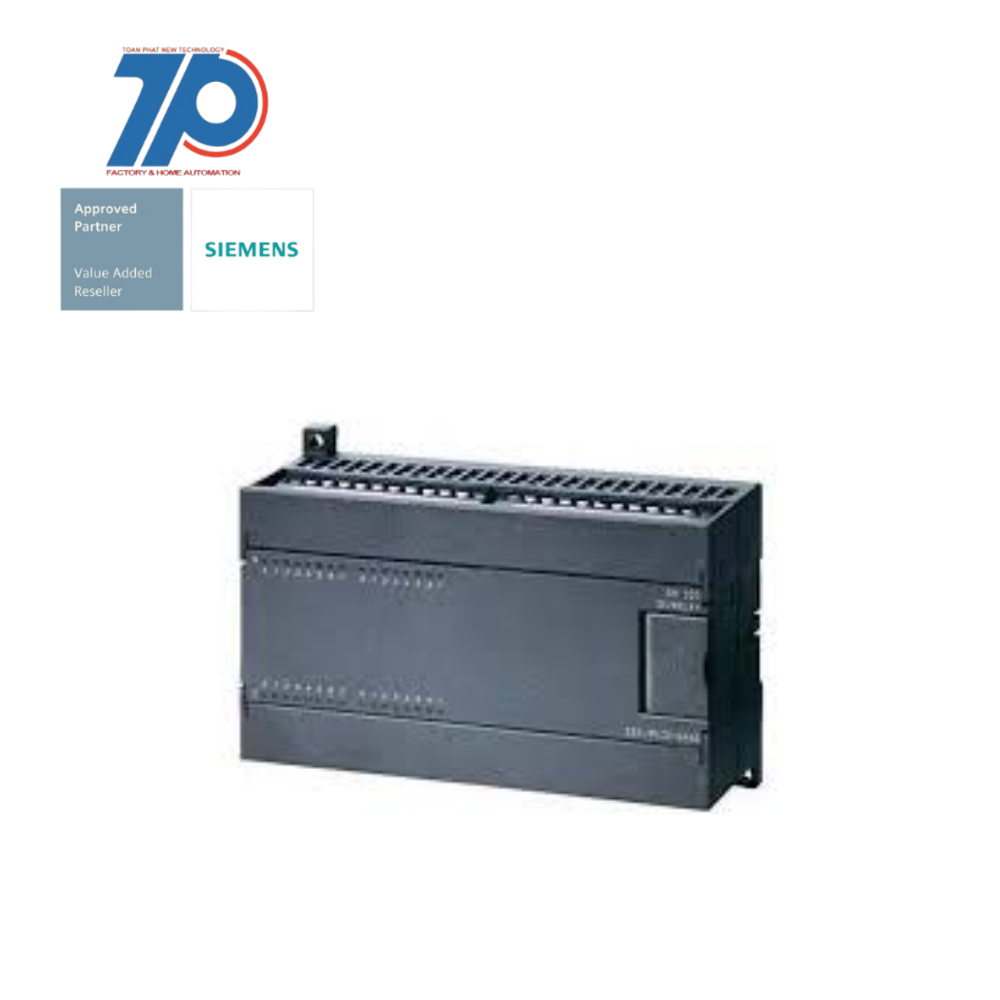

Material ID: 6ES7223-1PM22-0XA0Spare part SIMATIC S7-200, Digital I/O EM 223

Spare part SIMATIC S7-200, Digital I/O EM 223

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 Digital I/O EM 223 is a spare part designed specifically for S7-22X CPUs. It serves as a supplement to the integral I/O of the CPUs, allowing for flexible adaptation of the control system.

    • 32 DI 24 V DC: Digital Input, 32 channels, 24 V DC
    • Sink/Source: Compatible with both Sink and Source configurations
    • 32 DO relay: Digital Output, 32 channels, relay type
    • 2 A/channel: Each channel supports a maximum current of 2 Amps
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Output current2 A
Time delay at signal change4.5 ms
Supply voltage AC 60 Hz250 V
Type of electric connectionScrew connection
Permitted voltage at output250 V
Permitted voltage at input30 V
Voltage type (supply voltage)AC/DC
Short-circuit protection, outputs availablefalse
Number of digital outputs32
Supply voltage AC 50 Hz5 V
Permitted voltage at output5 V
Permitted voltage at input0 V
Type of output voltageAC/DC
Appendant operation agent (Ex ib)false
Redundancytrue
Type of voltage (input voltage)DC
Input current at signal 14 mA
Supply voltage DC30 V
Width196 mm
Digital inputs configurabletrue
Time delay at signal change3 ms
Supply voltage DC5 V
Type of digital outputRelay
Supply voltage AC 60 Hz5 V
Suitable for safety functionsfalse
Explosion safety category for dustNone
Depth62 mm
Digital outputs configurabletrue
Number of digital inputs32
Height80 mm
Supply voltage AC 50 Hz250 V
Appendant operation agent (Ex ia)false
