Material ID: 6ES7235-0KD22-0XA0

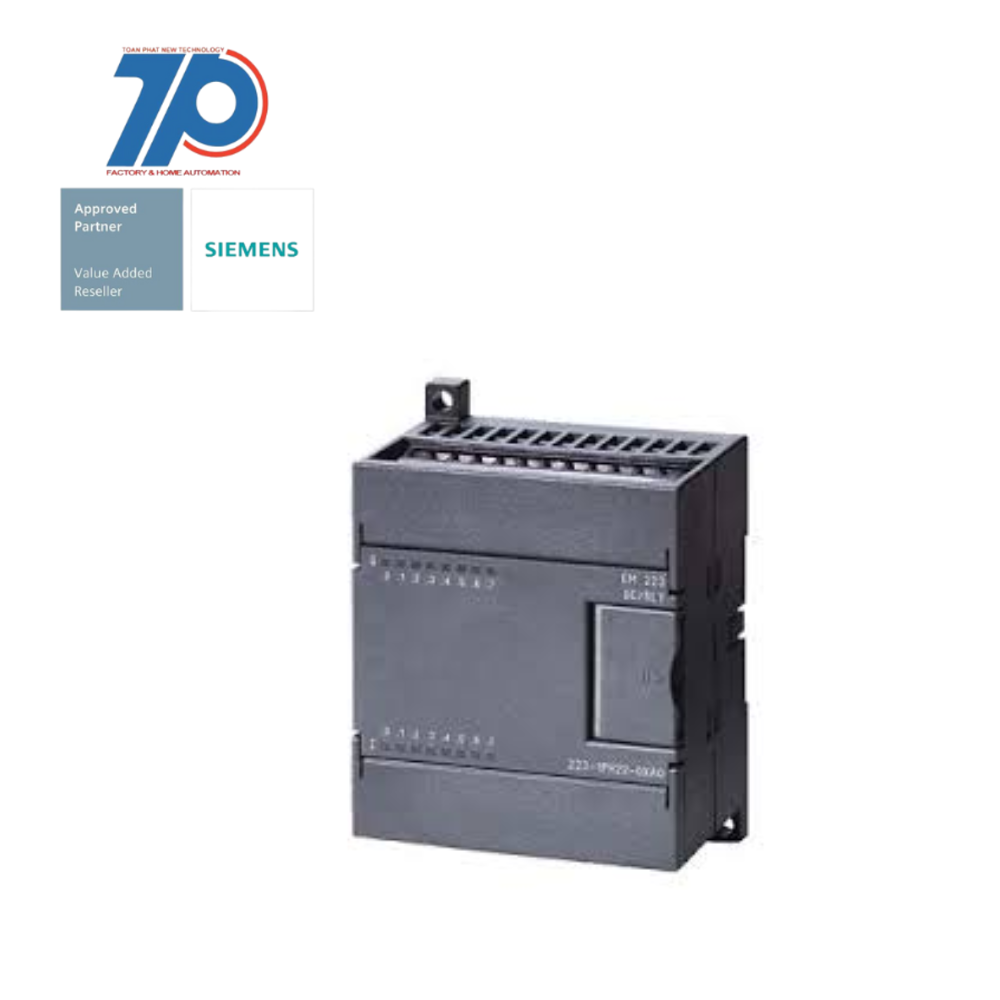

Spare part: SIMATIC S7-200, analog I/O EM 235

This spare part is designed specifically for the S7-22X CPU and offers a range of analog input and output capabilities.

Technical Features:

Commercial Benefits:

The SIMATIC S7-200 analog I/O EM 235 module is an essential component for solving even complex automation tasks. Its advanced analog input and output capabilities allow for precise control and monitoring of various industrial processes. With its compatibility with the S7-22X CPU, it seamlessly integrates into existing systems, providing a cost-effective solution for expanding automation capabilities.

    • 4 AI: This module provides 4 analog input channels.
    • +/-10 V DC: The analog input channels support a voltage range of +/-10 V DC.
    • 1 AO: This module also includes 1 analog output channel.
    • +/-10 V DC 12 bit converter: The analog output channel features a 12-bit converter and supports a voltage range of +/-10 V DC.
Additional Information

Support

Technical Data

Manuals / Links



Thông số kỹ thuật
FEATUREVALUE
Analogue outputs configurabletrue
Appendant operation agent (Ex ib)false
Appendant operation agent (Ex ia)false
Input, resistorfalse
Width71.2 mm
Suitable for safety functionsfalse
Number of analogue inputs4
Height80 mm
Input, resistance thermometerfalse
Type of electric connectionScrew connection
Number of analogue outputs1
Output, voltagetrue
Depth62 mm
Input, currenttrue
Resolution of the analogue outputs11 Bit
Input signal, configurabletrue
Output signal configurabletrue
Input, voltagetrue
Output, currenttrue
Resolution of the analogue inputs12 Bit
Analogue inputs configurabletrue
Explosion safety category for dustNone
Input, thermocouplefalse
