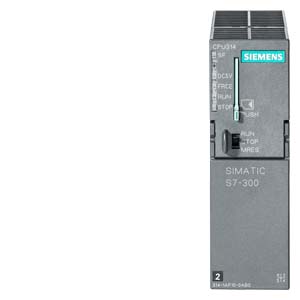

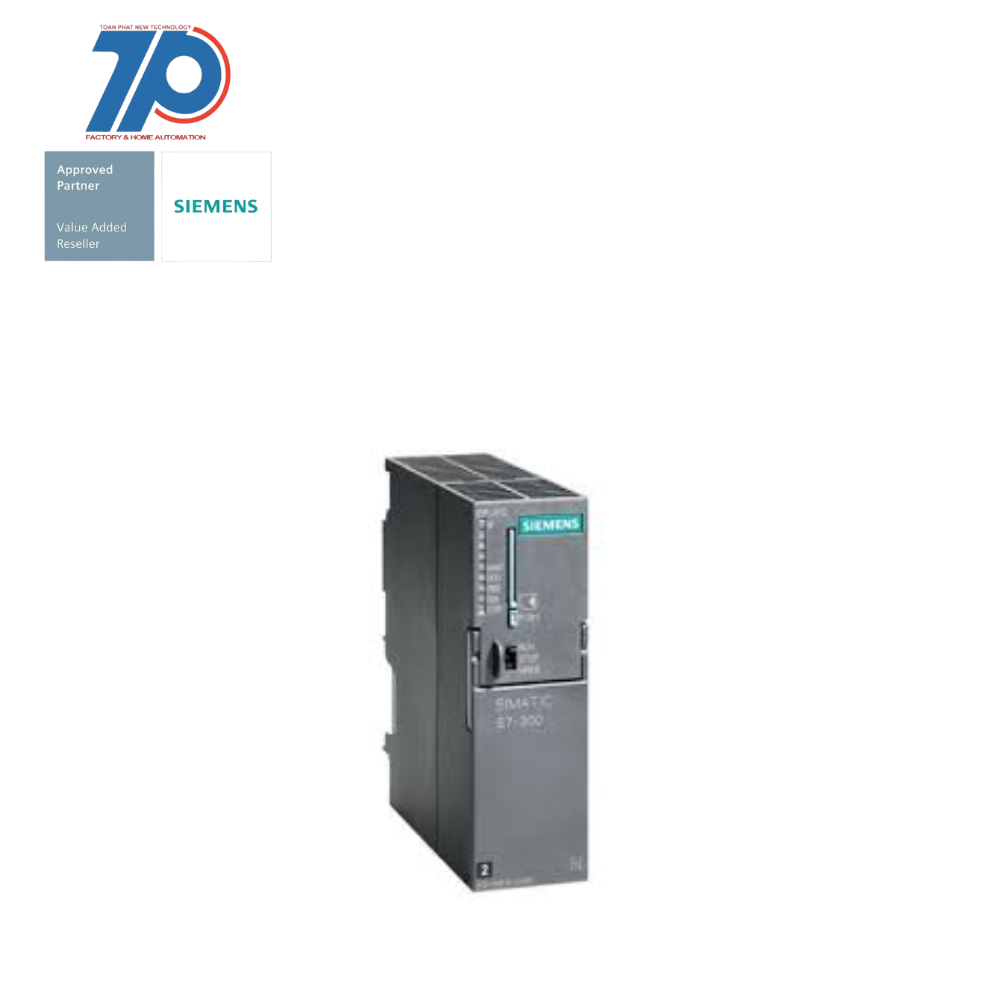

6ES7314-1AG14-0AB0
28,987,000₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Material ID: 6AG1314-1AG14-7AB0
- SIPLUS S7-300 CPU 314 based on 6ES7314-1AG14-0AB0 with conformal coating, -25…+70 °C, central processing unit with MPI, integrated power supply 24 V DC, work memory 128 KB, Micro Memory Card required
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This reliably protects your standard and challenging automation tasks and provides additional investment security.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Rack-assembly possible | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| Supporting protocol for EtherNet/IP | false |
| Wall mounting/direct mounting | false |
| Supply voltage DC | 28.8 V |
| With optical interface | false |
| Suitable for safety functions | false |
| Redundancy | true |
| Supporting protocol for SafetyBUS p | false |
| Rail mounting possible | true |
| Front built-in possible | false |
| Processing time (1K, binary operation) | 0.06 ms |

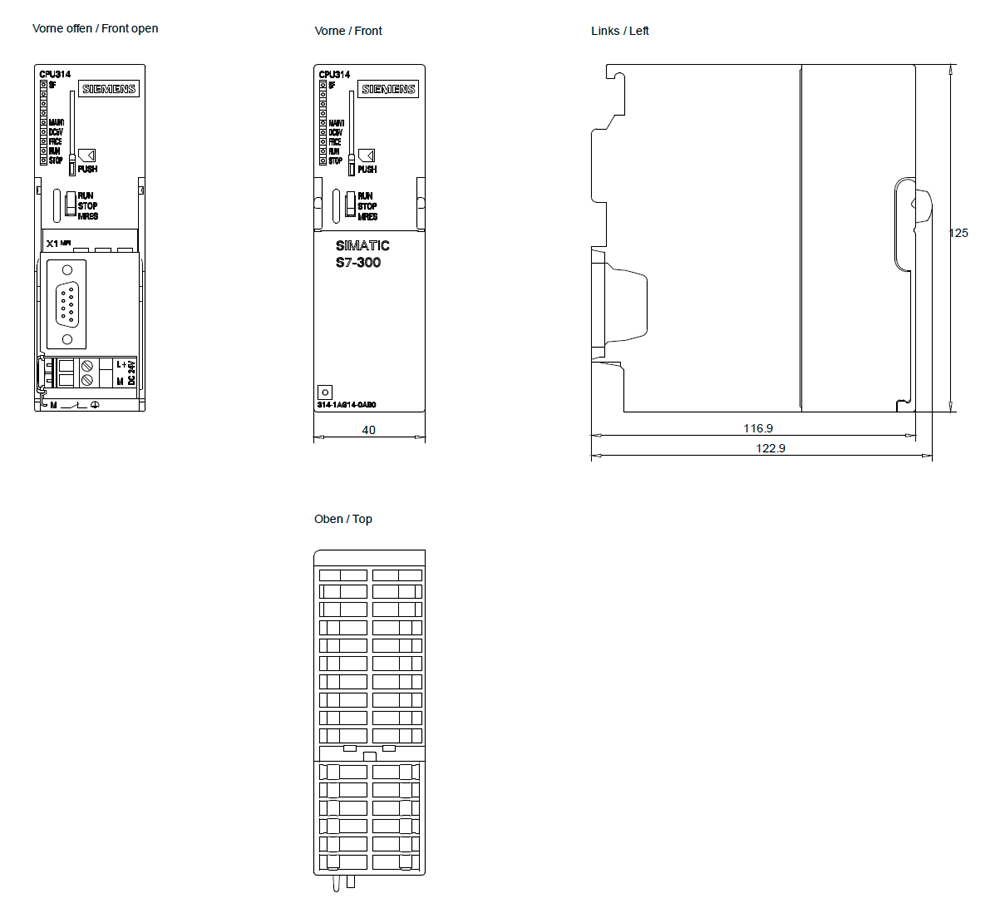

| Height | 125 mm |
| Supply voltage DC | 19.2 V |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for LON | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for SUCONET | false |
| Type of memory | RAM |
| Supporting protocol for INTERBUS | false |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| Depth | 130 mm |
| Radio standard UMTS | false |
| Supporting protocol for TCP/IP | false |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for ASI | false |
| Model | Modular |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for KNX | false |
| Supporting protocol for Modbus | false |
| Explosion safety category for dust | None |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for DeviceNet Safety | false |
| With display | false |
| Width | 40 mm |
| Memory size | 128 kByte |
| Radio standard Bluetooth | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
