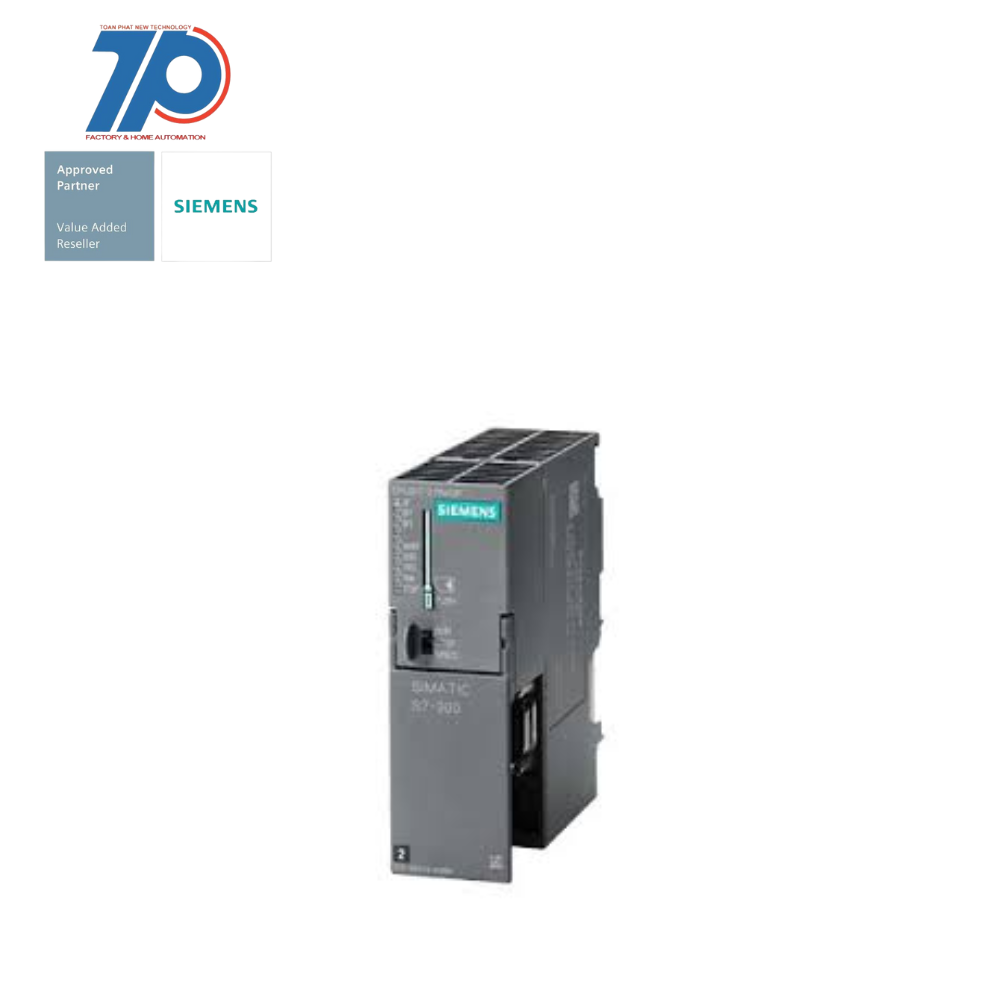

Material ID: 6ES7317-2FK14-0AB0
- SIMATIC S7-300 CPU317F-2 PN/DP, Central processing unit with 1.5 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required
- Powerful, compact and cost-effective
- SIMATIC S7-300 permits space-saving and modular configurations
- Wide range of available modules for central expansions or assembly of distributed structures
- Allows low-cost storage of spare parts
- Renowned for quality and consistency
- Innovative SIMATIC S7-1500 is a worthy successor to the SIMATIC S7-300
- Improved system properties and state-of-the-art technologies
- TIA Portal engineering system for shared engineering
- Optimally prepared for market changes, shorter product life cycles, competition, and cost pressure
- SIMATIC S7-300 / ET 200M system families available until 2023
- Products available as spare parts for another ten years after phase-out declaration
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for DeviceNet Safety | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for SERCOS | false |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Depth | 130 mm |
| Radio standard UMTS | false |
| Processing time (1K, binary operation) | 0.025 ms |
| Supporting protocol for PROFINET IO | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Width | 40 mm |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for LON | false |
| Front built-in possible | false |
| Appendant operation agent (Ex ib) | false |
| Supply voltage DC | 20.4 V |
| Height | 125 mm |
| Redundancy | true |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for SUCONET | false |
| With optical interface | false |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet | false |
| Radio standard GPRS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for ASI | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET CBA | true |
| SIL according to IEC 61508 | 3 |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for EtherCAT | false |
| Model | Modular |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Explosion safety category for dust | None |
| Supporting protocol for KNX | false |
| Type of memory | RAM |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Radio standard GSM | false |
| Memory size | 1536 kByte |
| Supporting protocol for PROFIsafe | true |
| Wall mounting/direct mounting | false |
| Radio standard Bluetooth | false |
| With display | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Rail mounting possible | true |
| Suitable for safety functions | true |
| Number of interfaces PROFINET | 1 |
