6ES7321-7RD00-0AB0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)

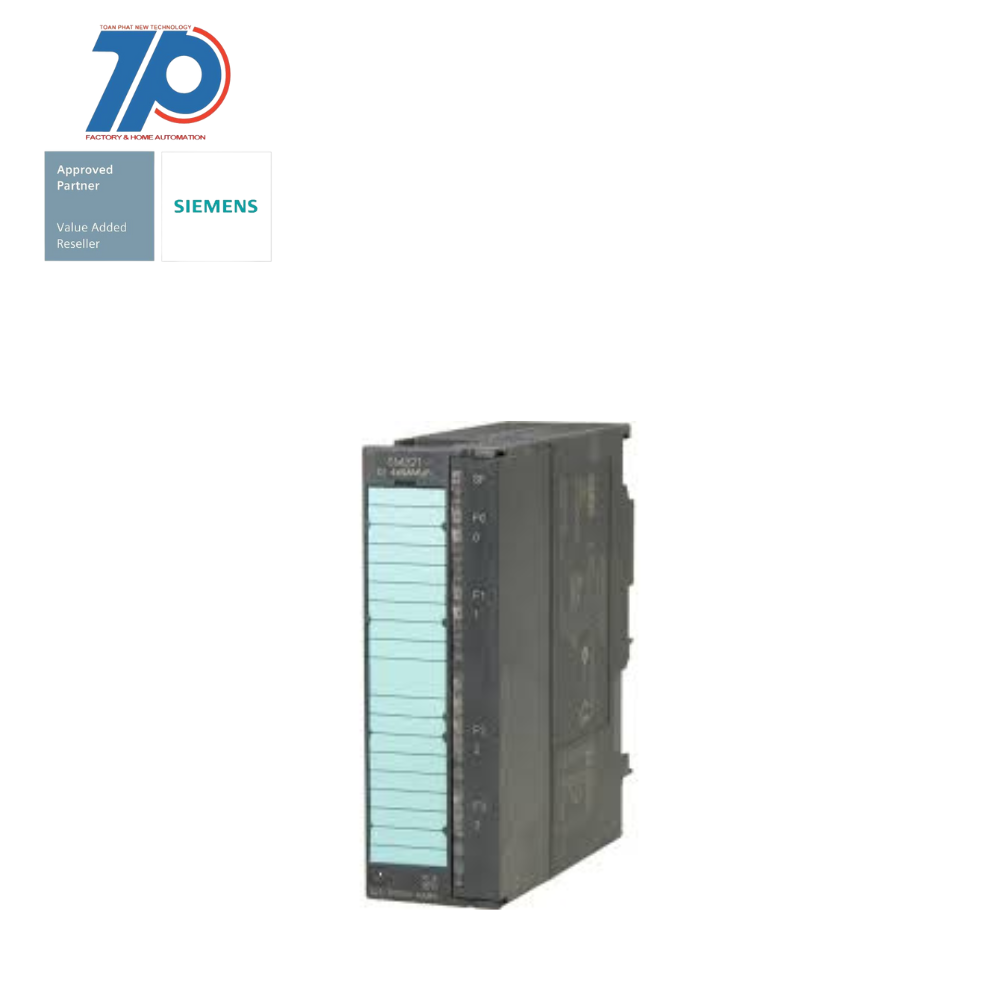

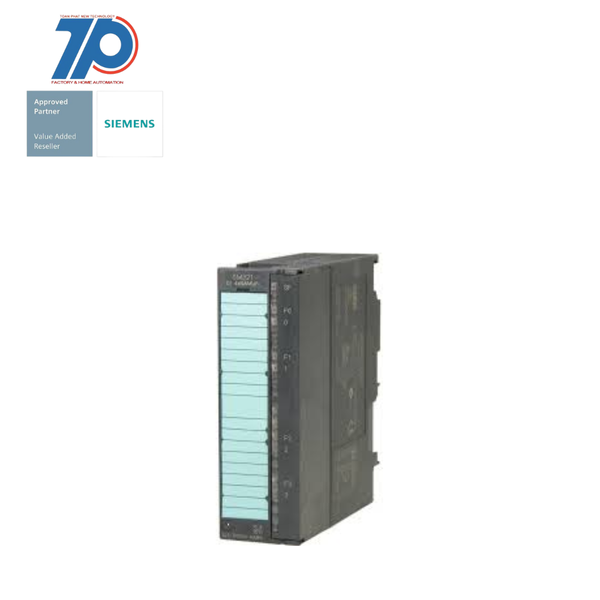

Material ID: 6ES7321-7RD00-0AB0
- SIMATIC S7, digital input SM 321, isolated, 4 DI; 24 V DC, NAMUR/DIN 19234, for signals from the hazardous area, diagnostics-capable, PTB tested
- SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
- Can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
- Up to 12 IO modules can be inserted into each station
- Standardized setup of all modules simplifies logistics and stocking of spare parts
- ET 200M can be used for both standard and safety-oriented applications
- Supports modules with extended user data, such as HART modules with HART auxiliary variables
- Offers FastConnect fast connection technology for easy wiring without stripping
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Redundancy | false |
| Time delay at signal change | 20 ms |

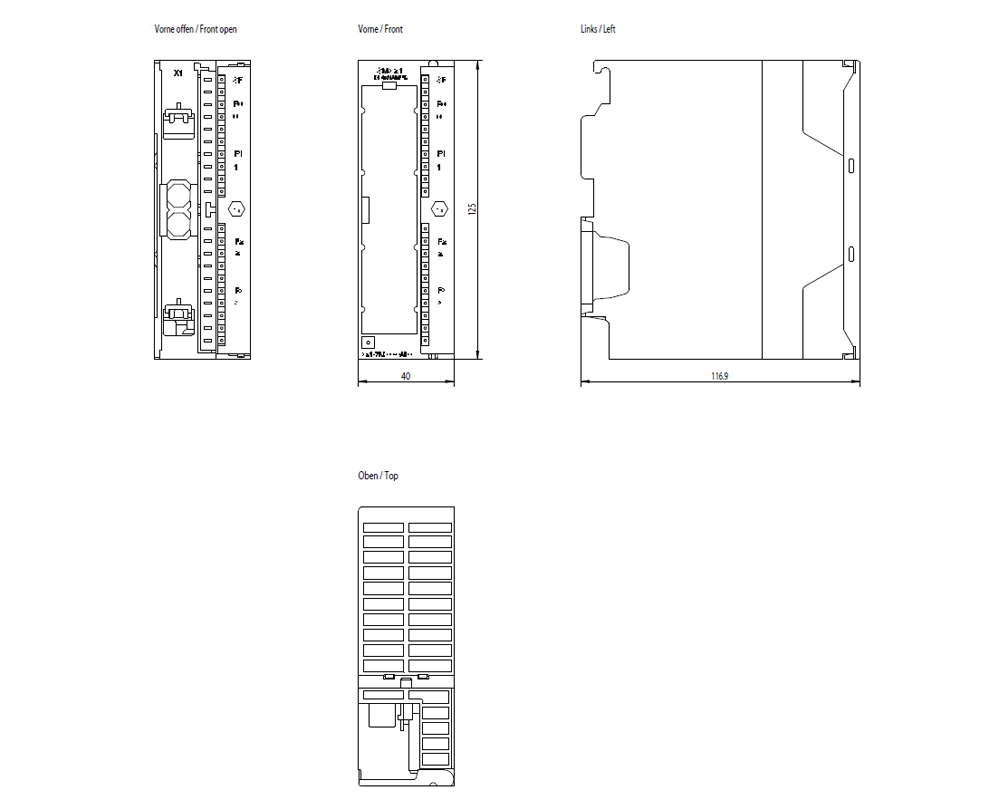

| Height | 125 mm |
| Appendant operation agent (Ex ib) | true |
| Type of voltage (input voltage) | DC |
| Time delay at signal change | 0.1 ms |
| Permitted voltage at input | 20.4 V |
| Suitable for safety functions | false |
| Digital inputs configurable | true |
| Number of digital inputs | 4 |
| Depth | 120 mm |
| Appendant operation agent (Ex ia) | false |
| Width | 40 mm |
| Voltage type (supply voltage) | DC |
| Permitted voltage at input | 28.8 V |
| Type of digital output | None |
