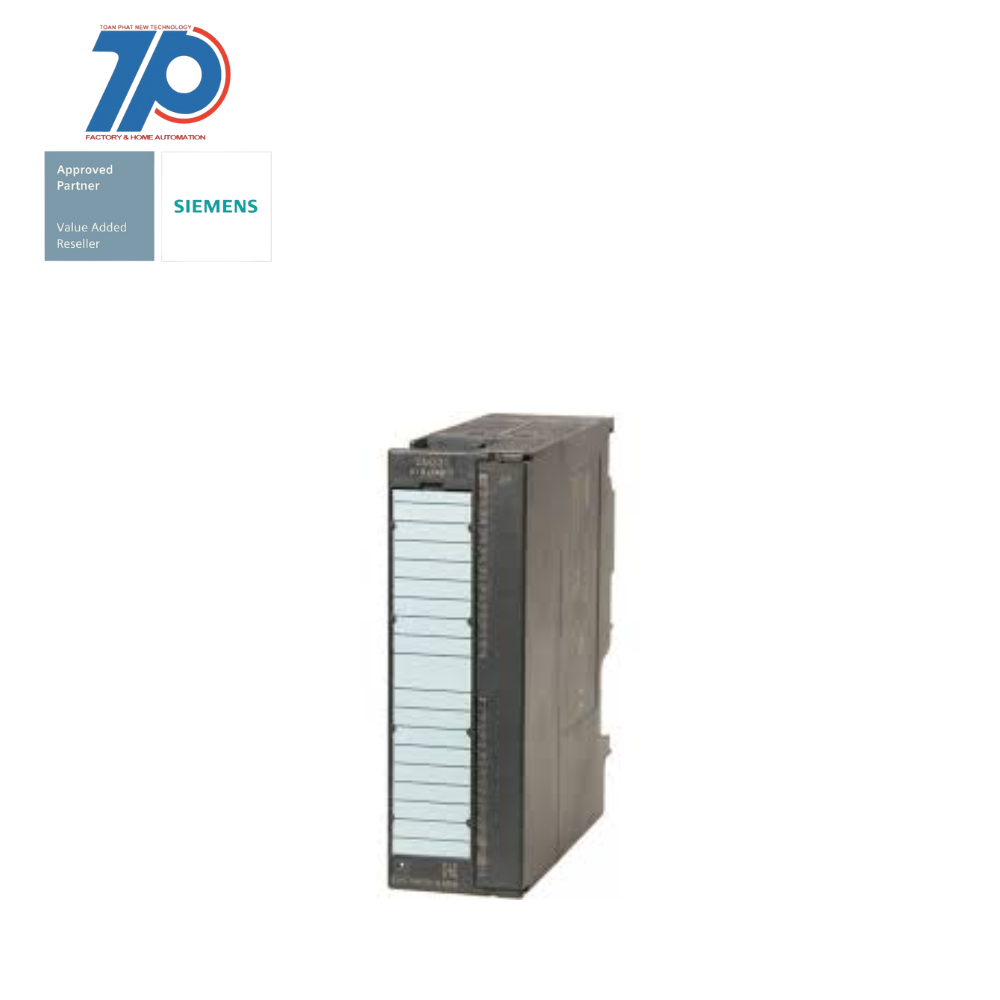

6ES7331-7NF10-0AB0

• SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit, Single rooting (60 V COM.)
• 4-channel operation: 10 ms, 8-channel operation: 23-95ms
• 1x 40-pole SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
• Can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
• Up to 12 IO modules can be inserted into each station
• Supports both standard and safety-oriented applications
• Can be used with multi-channel signal modules, function modules, and S7-300 communications processors as I/O modules
• Supports modules with extended user data, such as HART modules with HART auxiliary variables
• Offers FastConnect fast connection technology for easy wiring without stripping
