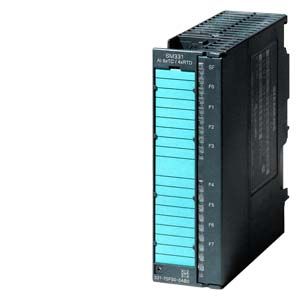

Material ID: 6ES7331-7RD00-0AB0
- SIMATIC S7, analog input SM 331, isolated, 4 AE; 0/4 to 20 mA
- 1 x 20-pole, for signals from the hazardous area
- diagnostics-capable, PTB tested
- SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
- Can be used as a central I/O on an S7-300
- Can be used in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
- Up to 12 IO modules can be inserted into each station
- Standardized setup of all modules simplifies logistics and stocking of spare parts
- Can be used for both standard and safety-oriented applications
- Supports modules with extended user data, such as HART modules with HART auxiliary variables
- Offers FastConnect fast connection technology for easy wiring without stripping
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Input, thermocouple | false |
| Input, voltage | false |
| Number of analogue inputs | 4 |
| Analogue inputs configurable | true |
| Resolution of the analogue inputs | 16 Bit |

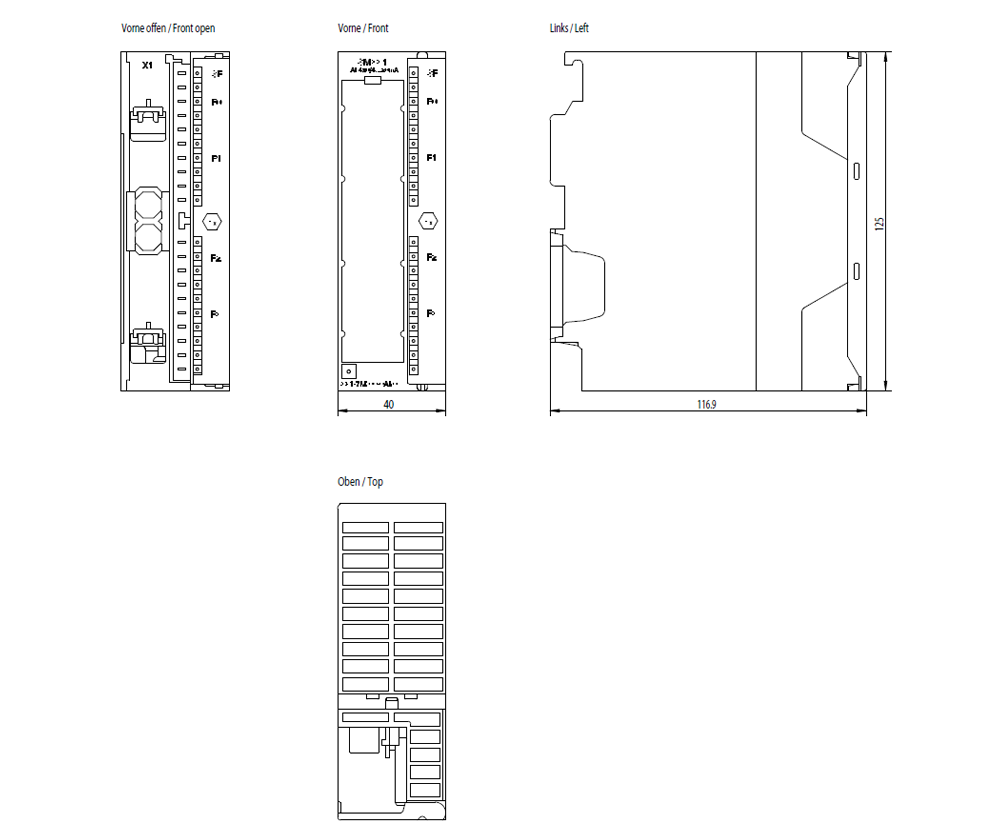

| Height | 125 mm |
| Width | 40 mm |
| Input, resistor | false |
| Suitable for safety functions | false |
| Input signal, configurable | true |
| Input, resistance thermometer | false |
| Input, current | true |
| Appendant operation agent (Ex ib) | true |
| Depth | 120 mm |
| Appendant operation agent (Ex ia) | false |
