Material ID: 6ES7331-7TB10-0AB0

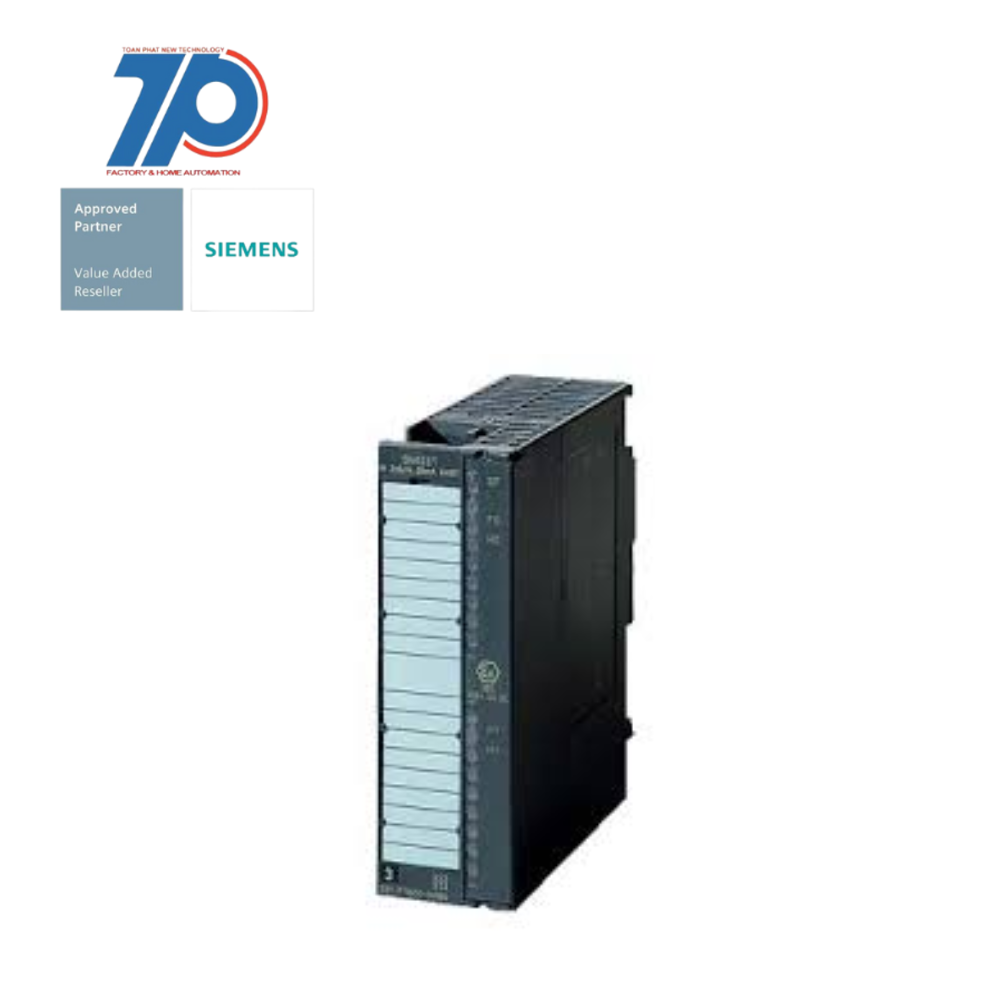

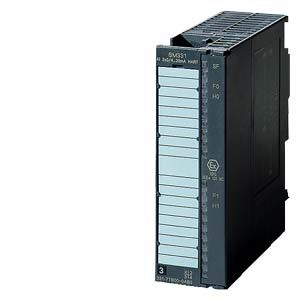

SIMATIC DP, HART analog input SM 331

The SIMATIC DP, HART analog input SM 331 is a high-quality analog input module designed for industrial applications. It supports HART communication protocol and can handle 2 analog inputs with a range of 0/4 - 20 mA.

Technical Features:

Commercial Benefits:

    • Supports HART Rev. 5.0
    • Compatible with ET200M with IM 153-2
    • 1 x 20-pole SIMATIC ET 200M interface module
    • Modular and universally applicable I/O system
    • Can be used as a central I/O on an S7-300
    • Can be used in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
    • Up to 12 IO modules can be inserted into each station
    • Standardized setup simplifies logistics and stocking of spare parts
    • Supports both standard and safety-oriented applications
    • Supports up to 12 multi-channel signal modules and function modules
    • Supports S7-300 communications processors as I/O modules
    • Supports modules with extended user data, such as HART modules with HART auxiliary variables
    • FastConnect fast connection technology for easy wiring without stripping
    • High-quality and reliable analog input module
    • Enables easy integration with ET200M and IM 153-2
    • Flexible and scalable I/O system
    • Reduces logistics and stocking costs
    • Supports both standard and safety-oriented applications
    • Allows for easy wiring without stripping using FastConnect technology
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSfalse
Number of HW-interfaces wireless0
Analogue inputs configurabletrue
Number of HW-interfaces RS-4850
Number of HW-interfaces other0
Supporting protocol for Data-Highwayfalse
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces industrial Ethernet0
Radio standard GPRSfalse
Number of HW-interfaces RS-4220
Height125 mm
Supporting protocol for PROFINET CBAfalse
Radio standard Bluetoothfalse
Input signal, configurabletrue
Supporting protocol for SafetyBUS pfalse
Resolution of the analogue inputs16 Bit
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Radio standard UMTSfalse
Supporting protocol for ASIfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Rack-assembly possibletrue
Number of analogue outputs0
Input, currenttrue
Supporting protocol for SERCOSfalse
Supporting protocol for TCP/IPfalse
Radio standard WLAN 802.11false
Supporting protocol for SUCONETfalse
Wall mounting/direct mountingfalse
Number of analogue inputs2
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Width40 mm
Supporting protocol for Modbusfalse
Depth120 mm
Supporting protocol for LONfalse
IO link masterfalse
Supporting protocol for Foundation Fieldbusfalse
