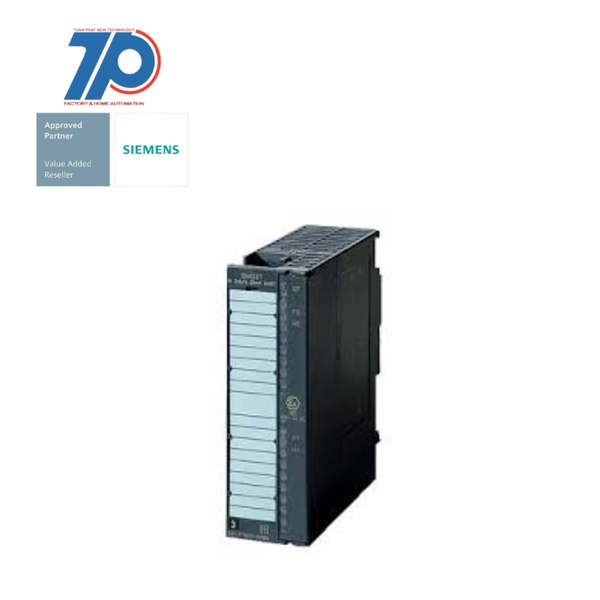

Material ID: 6ES7331-7TF01-0AB0

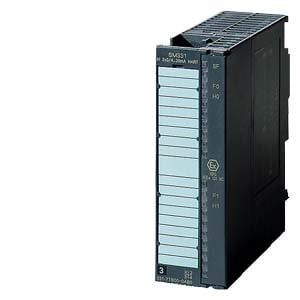

SIMATIC DP, HART analog input SM 331, 8 AI

The SIMATIC DP, HART analog input SM 331 is a high-performance module designed for industrial control systems. It features 8 analog input channels and supports a wide range of input signals, including 0/4 - 20 mA HART.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20. It can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. With the ability to insert up to 12 IO modules into each station, logistics and stocking of spare parts are considerably simplified. The ET 200M is suitable for both standard and safety-oriented applications.

Key Features:

    • Compatible with ET200M with IM153-2
    • 1 x 20-pole connection
    • Functions: FW update, HART auxiliary variables, redundancy
    • Local diagnostic buffer with time stamping
    • Supports up to 12 multi-channel signal modules
    • Supports function modules and S7-300 communications processors as I/O modules
    • Supports modules with extended user data, such as HART modules with HART auxiliary variables
    • FastConnect fast connection technology for easy wiring without stripping
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Input, resistorfalse

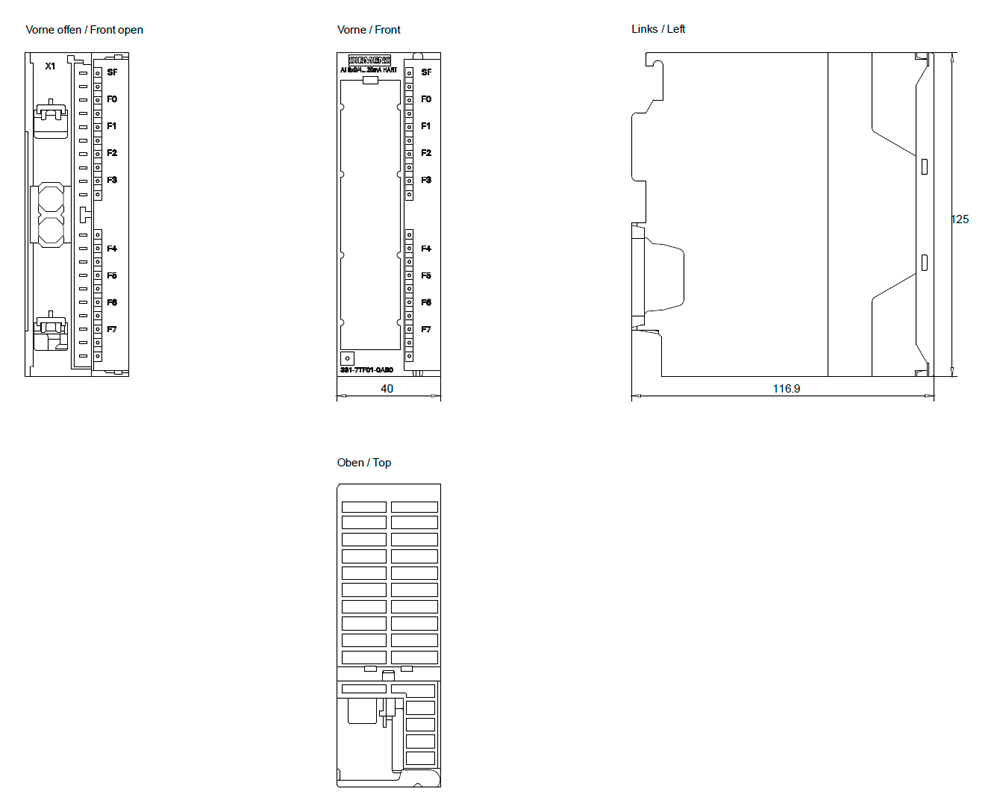

Depth117 mm
Supporting protocol for LONfalse
IO link masterfalse
Height125 mm
Wall mounting/direct mountingtrue
Number of HW-interfaces other0
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemstrue
System accessorytrue
Suitable for safety functionsfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC20.4 V
Supporting protocol for DeviceNet Safetyfalse
Degree of protection (IP)IP20
Input signal, configurabletrue
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Input, currenttrue
Supporting protocol for SUCONETfalse
Supporting protocol for ASIfalse
Number of HW-interfaces serial TTY0
Input, voltagefalse
Resolution of the analogue inputs16 Bit
Width40 mm
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Supporting protocol for Modbusfalse
Rack-assembly possiblefalse
Appendant operation agent (Ex ib)false
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for INTERBUS-Safetyfalse
Rail mounting possibletrue
Number of interfaces PROFINET0
Input, resistance thermometerfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFIBUStrue
Input, thermocouplefalse
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Analogue inputs configurabletrue
Supporting protocol for KNXfalse
Number of analogue outputs0
Number of analogue inputs8
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPfalse
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Supply voltage DC28.8 V
Front built-in possibletrue
