Material ID: 6ES7332-8TF01-0AB0

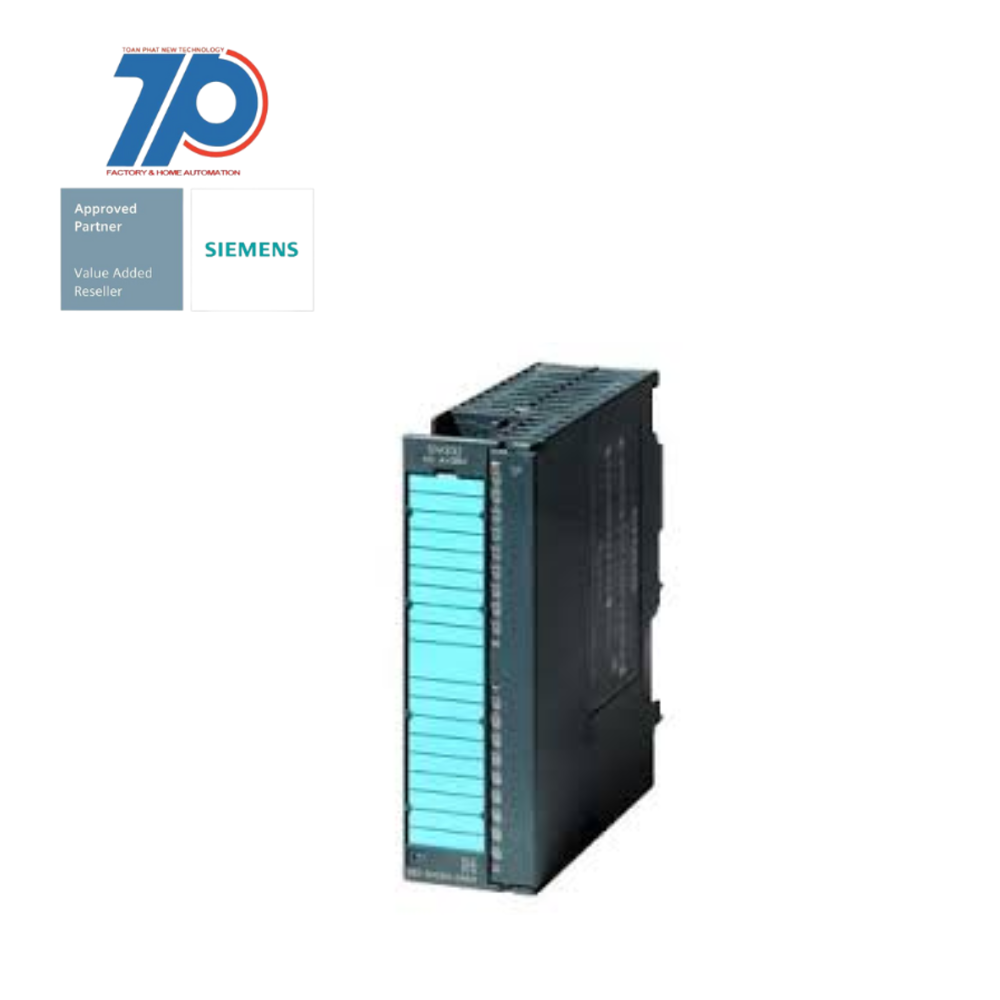

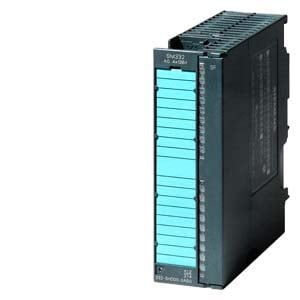

SIMATIC DP, HART analog output, SM 332, 8 AO, 0/4 - 20 mA HART

The SIMATIC DP, HART analog output module SM 332 is designed for use with the ET200M I/O system. It provides 8 analog output channels with a current range of 0/4 - 20 mA. The module supports HART communication protocol, allowing for enhanced functionality and diagnostics.

Functions

SIMATIC ET 200M

The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20. It can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. The system supports up to 12 IO modules per station, simplifying logistics and stocking of spare parts.

The ET 200M is suitable for both standard and safety-oriented applications. It supports various I/O modules, including multi-channel signal modules and function modules. It also supports modules with extended user data, such as HART modules with HART auxiliary variables.

In addition to conventional connection methods, the ET 200M offers FastConnect fast connection technology for easy wiring without stripping.

    • FW update: The module supports firmware updates, ensuring compatibility with future enhancements and bug fixes.
    • HART auxiliary variables: The module allows for the use of HART auxiliary variables, providing additional data for advanced monitoring and control.
    • Redundancy: The module supports redundancy, ensuring high availability and reliability of the system.
    • Local diagnostic buffer with time stamping: The module features a local diagnostic buffer with time stamping, allowing for easy troubleshooting and analysis of system events.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Output, voltagefalse
Suitable for safety functionsfalse
Number of HW-interfaces USB0
Supporting protocol for ASIfalse
Output, currenttrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse

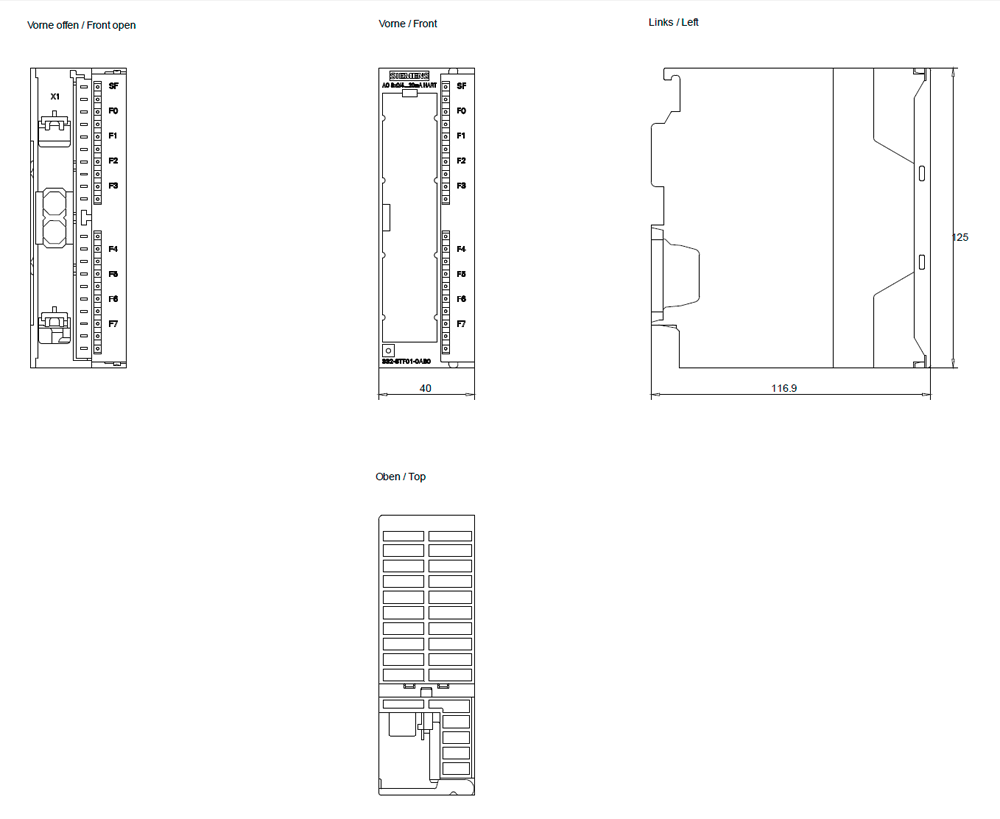

Depth117 mm
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces serial TTY0
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Radio standard UMTSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for DeviceNet Safetyfalse
Radio standard GSMfalse
Number of HW-interfaces RS-2320
Degree of protection (IP)IP20
Supply voltage DC28.8 V
Supporting protocol for other bus systemstrue
System accessorytrue
Number of HW-interfaces other0
Resolution of the analogue outputs16 Bit
Width40 mm
Output signal configurabletrue
Radio standard Bluetoothfalse
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for Modbusfalse
Front built-in possibletrue
Number of analogue inputs0
Height125 mm
Number of interfaces PROFINET0
Analogue outputs configurabletrue
IO link masterfalse
Supporting protocol for TCP/IPfalse
Number of analogue outputs8
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces wireless0
Supporting protocol for INTERBUSfalse
Number of HW-interfaces parallel0
Wall mounting/direct mountingtrue
Supply voltage DC20.4 V
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Supporting protocol for DeviceNetfalse
Rail mounting possibletrue
Supporting protocol for CANfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supporting protocol for PROFIsafefalse
