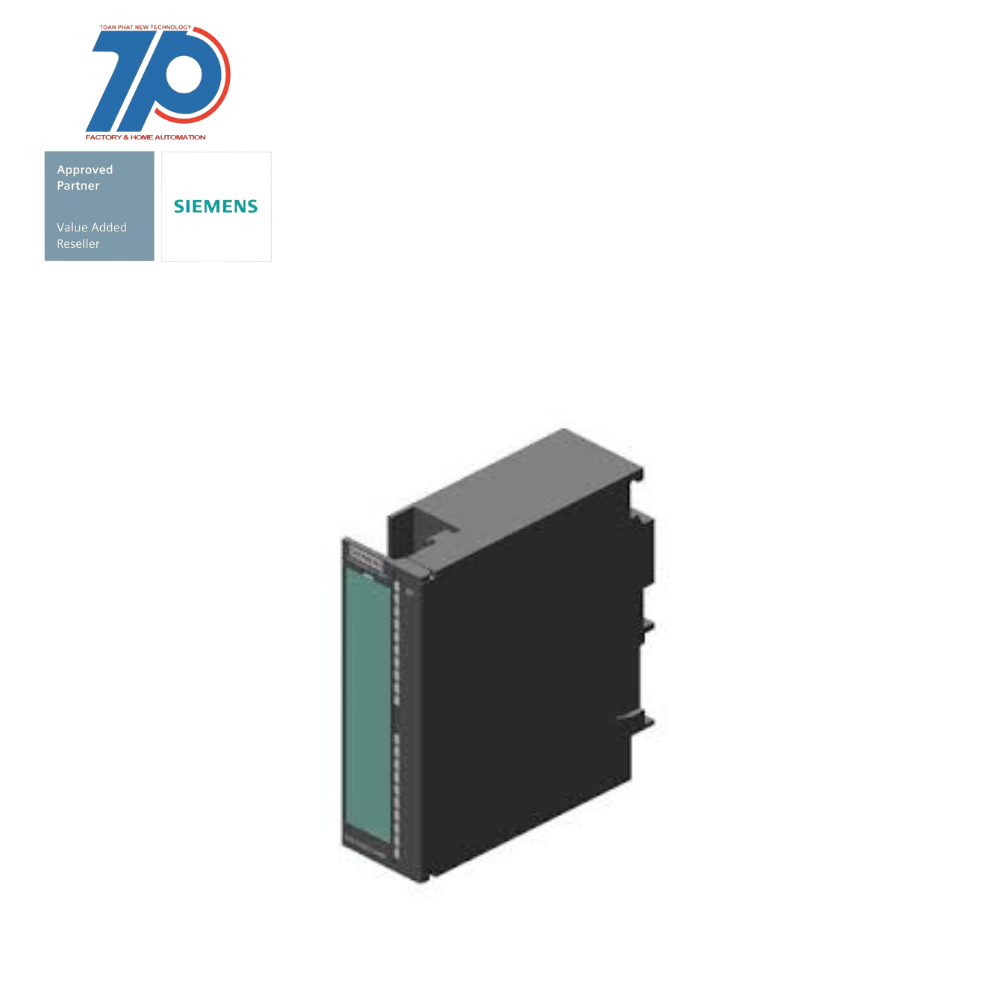

6ES7335-7HG02-0AB0

Thương hiệu: Siemens

MSP: 6ES7335-7HG02-0AB0

1₫ (Giá đã bao gồm VAT)

Cam kết bán hàng

Material ID: 6ES7335-7HG02-0AB0

SIMATIC S7-300
ANALOG MODULE SM 335
OPTICALLY ISOLATED U/I
DIAGNOSTICS
INTERRUPT
4 AI 14 BIT RESOL.
4 AO 11/12 BIT
1 X 20-PINS
SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
Can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
Up to 12 IO modules can be inserted into each station
The standardized setup of all modules considerably simplifies logistics and stocking of spare parts
ET 200M can be used both for standard and for safety-oriented applications
Up to 12 multi-channel signal modules and function modules as well as S7-300 communications processors can be used as I/O modules
ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables
ET 200M offers FastConnect fast connection technology for easy wiring without stripping

Additional Information

Thông số kỹ thuật

FEATURE	VALUE
Output, current	false
Explosion safety category for dust	None
Input, resistance thermometer	false
Resolution of the analogue outputs	12 Bit
Output, voltage	true
Height	125 mm
Analogue outputs configurable	true
Input signal, configurable	true
Output signal configurable	true
Resolution of the analogue inputs	14 Bit
Input, voltage	true
Input, resistor	false
Appendant operation agent (Ex ia)	false
Depth	120 mm
Appendant operation agent (Ex ib)	false
Analogue inputs configurable	true
Input, current	true
Input, thermocouple	false
Number of analogue outputs	4
Suitable for safety functions	false
Width	40 mm
Number of analogue inputs	4
